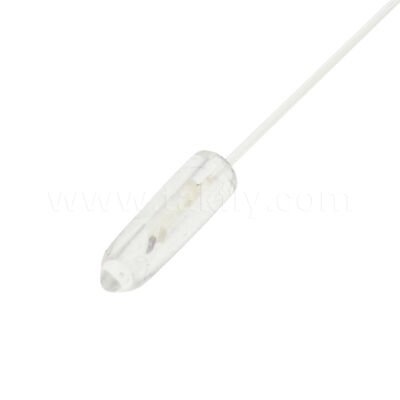

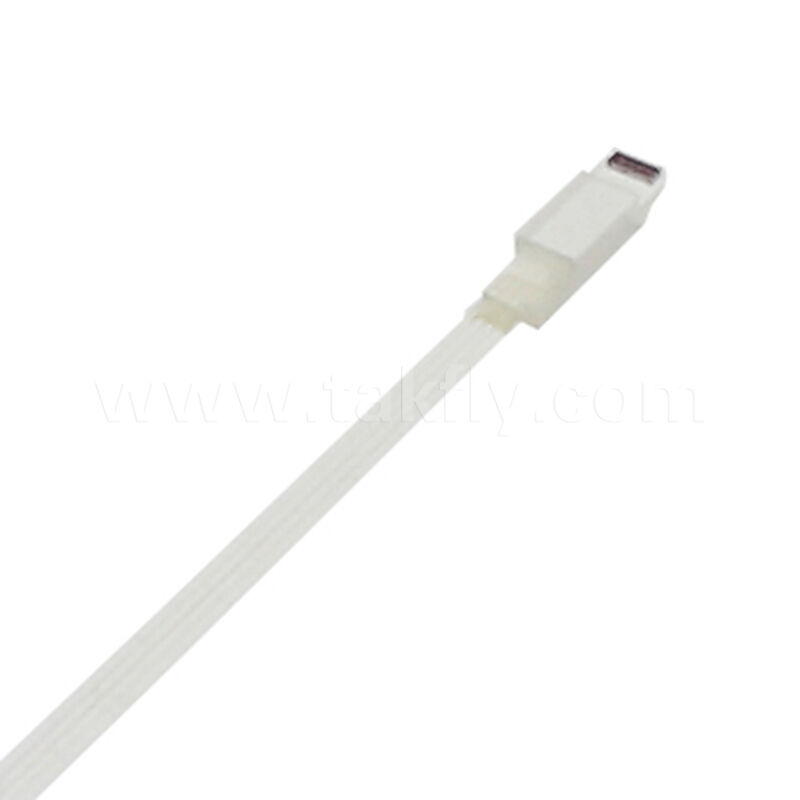

MINI Lens Array attaching FAU Fiber Array Unit FA Assembly with High Accuracy and Customized Length
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | OEM/Takfly |
| Certification: | CE, ROSH REACH |
| Model Number: | DF-MINI FAU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | PP bags + carton box / plastic box + carton box |
| Delivery Time: | 3-15 working days according to qty and requirements |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram,Paypal |
| Supply Ability: | 20000pcs per month |
|
Detail Information |
|||
| Fiber Type: | SM,MM | Fiber Count: | MINI Lens FAU |
|---|---|---|---|
| FA Angle: | 0 / 42.5° | Fiber Length: | 20~100mm, Customized Length Available |
| Product Name: | 8CH FAU Attaching Lens Array | ||
| Highlight: | MINI Lens Array FAU assembly,Fiber Array Unit with high accuracy,Customized length fiber optic patchcord |
||
Product Description
MINI Lens Array attaching FAU
With the development of 100G Ethernet becoming a trend, the application of 100G optical modules has continued to grow, and it has now become the most widely used and fastest Ethernet connection. The widespread deployment of 100G connections in data centers and networks is also driving the rapid growth in demand for 400G solutions.
To develop lower-cost 100G solutions, optical module and device manufacturers are seeking competitive 100G optical modules and components, while simultaneously expanding to 400G and 800G speeds.
The demand for higher density and higher speed connections places more stringent demands on the internal space requirements of optical modules. MT ferrules and fiber optic assemblies, as high-performance, high-density connection components, are widely used in high-speed optical module connections.
Utilizing the small size and multi-channel nature of MT ferrules to achieve parallel transmission of multiple optical paths makes them very easy to use as external optical interfaces in high-speed optical modules.
- Active Optical Modules
- High-speed, high-capacity fiber optic communication systems
- Internal connector applications in fiber equipment
- Parallel optical transceiver modules, supercomputers, testing equipment, and military applications
- Stable optical characteristics with consistent performance
- High-precision MT ferrule and small bending radius fiber for minimal loss
- Typical core pitch tolerance <±0.5μm
- High accuracy and full customization capabilities
- Compliance with IEC TIA/EIA and relevant industry standards
- RoHS 2.0 Compliant for environmental safety
| Parameter | Unit | Value |
|---|---|---|
| Fiber Count | - | Optional |
| Fiber Mode | - | SM: G652, G657 | MM: OM1, OM2, OM3, OM4, OM5 |
| Wavelength | nm | 1310/1550 | 850/1300 |
| MT Endface Polishing | - | PC | APC | PC | APC |
| Insertion Loss (IL) | dB | ≤0.35 | ≤0.35 |
| Return Loss (RL) | dB | ≥50 | ≥60 | ≥20 | ≥40 |
| Durability | Time | 50 |
| FA Lid Dimensions | mm | L: 2.5 (Optional) | W: 2 | T: 0.2 |
| V-Groove Dimensions | mm | L: 5 | W: 2 | T: 0.5 |
| Core Pitch | μm | 175, 250 |
| Bare Fiber Degree | ° | 8, 42.5, 45 |
| Insertion Loss (IL) | dB | ≤0.8 |
| Endface Geometric Parameters (3D) | - | Satisfying IEC TIA/EIA standards |
| Operating Temperature | ℃ | -20 ~ +80 |
| Storage Temperature | ℃ | -15 ~ +60 |
Yes, we can. OEM is available. Welcome to send us your drawing requirements.
Our production capacity is 20K ~40K pieces per month, depending on different channel configurations.
Sure, our factories are located in Shenzhen and Zhongshan, Guangdong, China. Please contact us to schedule an appointment.
If quality issues arise upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, and we'll implement improvements for future production.
Generally, we pack goods in blister boxes and cartons, but we can also accommodate custom packaging requests.
We accept T/T, Paypal, Western Union, Alipay, and other payment methods.
We offer EXW, FOB, CFR, CIF, and DDU delivery terms.
Generally, 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
