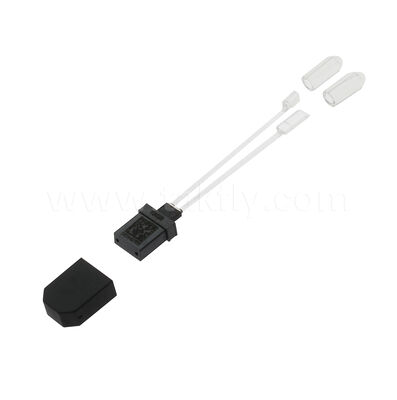

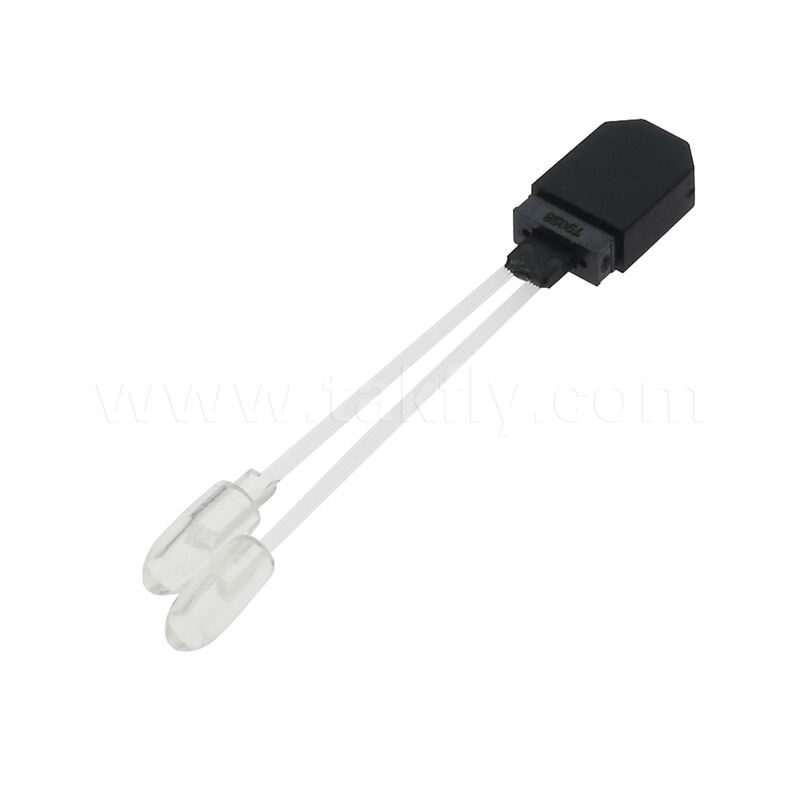

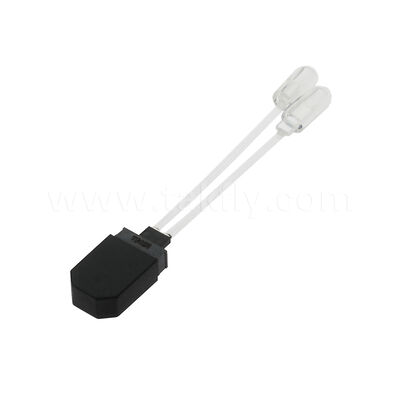

MT-2FA Array fiber optic patch cord SM fiber optical for CPO for AI、Data Center

MT-2FA Array fiber optic patch cord singlemode G657A1 G657A2 fiber for CPO

Takfly Group offers a comprehensive selection of fiber array units (FAUs) engineered for long-haul and metro networks, as well as data center applications. Leveraging our expertise in specialty fibers and customizable V-groove chips and covers, our FAU products can be tailored to meet your specific requirements,including inter-fiber core pitch and precision,number of channels,fiber type,and termination type.Each fiber array unit delivers ultra-accurate fiber core positioning,ensuring low insertion loss and high optical return loss,achieved through our advanced dicing machines and core pitch measurement systems.Takfly Group also provides FA-integrated connectors and interposers to support the evolving needs of photonic integrated circuit (PIC) development.

With the development of 100G Ethernet becoming a trend, the application of 100G optical modules has continued to grow, and it has now become the most widely used and fastest Ethernet connection. The widespread deployment of 100G connections in data centers and networks is also driving the rapid growth in demand for 400G solutions.



To develop lower-cost 100G solutions, optical module and device manufacturers are seeking competitive 100G optical modules and components, while simultaneously expanding to 400G and 800G speeds.



The demand for higher density and higher speed connections places more stringent demands on the internal space requirements of optical modules. MT ferrules and fiber optic assemblies, as high-performance, high-density connection components, are widely used in high-speed optical module connections.



Utilizing the small size and multi-channel nature of MT ferrules to achieve parallel transmission of multiple optical paths makes them very easy to use as external optical interfaces in high-speed optical modules.

Key Features of FA-MT Fiber Jumper

• Ultra-low Insertion Loss & High Return LossBoasts exceptionally low insertion loss (typically IL≤0.35 dB) and exceptional return loss (RL≥55 dB), ensuring minimal signal attenuation and superior optical performance for high-speed transmission systems.

• High Precision & CustomizationFeatures a precise core pitch of 250±0.5 μm with customizable parameters including fiber MFD (Mode Field Diameter), polishing angles (e.g., 42.5∘ for FA, 8∘ for MT), and length tolerance controlled within ±0.15 mm. Supports flexible configuration for diverse application needs.

• High-Density Multi-channel TransmissionIntegrates 8F/12F/24F fiber channels in a compact design, enabling high-density parallel optical transmission. Ideal for 40G/100G/400G/800G high-speed network interconnects, significantly improving space utilization in data centers and telecom equipment

• Wide Operating Wavelength & CompatibilityCovers critical operating wavelengths of 1310nm/1550nm for standard optical communication systems, with AR coating (1260nm-1650nm, R<0.25%) ensuring stable performance across broad spectrum ranges.

• Reliable Environmental AdaptabilityOperates stably in a wide temperature range (-40°C to +85°C) and meets industry standards (e.g., GR-1435, GR-1221, RoHS). Withstands rigorous testing, including durability, temperature cycling, and bending resistance, for long-term reliable operation

• Compact & Space-Saving DesignMiniaturized form factor with precise mechanical alignment (via guide pins) enables seamless integration into tight-space devices like QSFP/QSFP28 optical transceivers, AOC (Active Optical Cables), and switching equipment.

Features:

   Highly customizable
   High reliability in harsh environments
   Ultra-precise fiber core pitch positioning
   High-density integration

   Compact design
   Flexible fiber type selection
   Multiple termination options

Parameter

Please provide your email or contact information through our website to receive our catalogue and price list.

Yes, we may consider discounts for multiple container loads of mixed goods.

Shipping charges depend on shipment size and shipping method. We will provide charges upon request.

Sure, our factory is in Shenzhen, China. Please contact us to schedule an appointment.

If quality issues arise upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, and we'll implement improvements for future production.

Generally, we pack goods in blister boxes and cartons, but we can also accommodate custom packaging requests.

T/T 30% deposit, 70% balance before delivery. We provide photos of products and packaging before final payment.

EXW, FOB, CFR, CIF, DDU

Generally, 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.

Yes, we can produce based on your samples or technical drawings.
