OCS Optical Switch 2D FA Product SM Low IL 0.3dB High Performance
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | OCS Optical Switch 2D FA Product SM Low IL 0.3dB High Performance |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | 3xFA-2xMT | Fiber Type: | OCS Optical Switch 2D FA Product SM Low IL 0.3dB High Performance |
|---|---|---|---|
| Intertion Loss: | IL＜0.3dB (1310nm) | Return Loss: | MT：UPC＞35dB ,APC＞40dB RX：RL＞35dB |
| Fiber Diameter: | (8.6～9.5）±0.4um | Attenuation: | ≤ 0.4 DB/km @ 1310nm ≤ 0.3dB/km @ 1550nm |
| Operation Temperature: | -40℃~85℃ | Grade: | Telecom Grade |
| Certificate: | CE/ROHS/REACH | ||
| Highlight: | OCS optical switch 2D FA,SM optical switch low IL,high performance optical switch |
||
Product Description

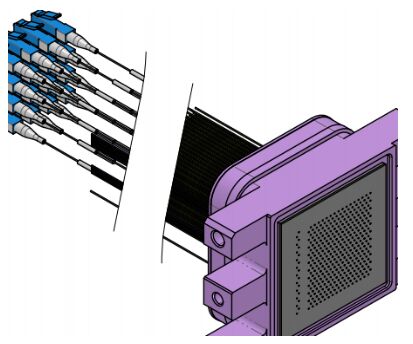

OCS Optical Switch 2D FA Product SM Low IL 0.3dB High Performance
OCS Optical Switch 2D FA Product SM Low IL 0.3dB High Performance
Product Overview
Two-dimensional FAU fiber optic array components are mainly used in OCS optical switching equipment to realize the input and output functions of array optical signals, providing data switching solutions for advanced data centers that support applications such as artificial intelligence (AI), machine learning (ML), and high-performance computing (HPC).
Key Applications
- High Port Density: Customized solutions are available to meet diverse customer needs
- Customizable Fiber Spacing: Precisely customized fiber spacing is available to meet specific customer requirements and adapt to different application scenarios
- High-Precision Fiber Positioning: Utilizing precision fiber array processing technology, high-precision fiber positioning is achieved, with core offset controlled within 1µm
- Low Transmission Loss: High-precision coupling alignment technology ensures efficient optical signal transmission, with insertion loss ≤0.8dB
- High Operational Stability: The product undergoes rigorous mechanical environment testing to ensure stable and reliable optical signal transmission during use
Product Features
- High-precision manufacturing process: Proprietary processes achieve ultra-precise pitch control, with a pitch error of <0.8μm, ensuring stable optical signal transmission
- Customized design: Customizable to meet specific customer size requirements, adapting to diverse application scenarios
- Clear production capacity planning: Offering a full range of FAU and derivative products, covering needs from 100G to 800G and even next-generation optical modules, enabling rapid response to market demands
- Superior performance: As shown in the performance curves, key indicators such as insertion loss are controlled at industry-leading levels, with a peak loss of only 0.664dB, and stable below 0.4dB in most ranges
Technical Parameters
| Fiber type | SM G652D/G657A/G657B3 |
| Fiber Diameter | (8.6～9.5)±0.4um |
| Cladding Diameter | 125±1um |
| Coat Diameter | 245±10um |
| Attenuation | ≤ 0.4 dB/km @ 1310nm ≤ 0.3dB/km @ 1550nm |
| Operating Temperature | -40℃～85℃ |
| Environmental friendly | Complies with the EU RoHS and lead-free |
Performance Specifications
| Plug Type | LC/MT/MPO and so on |
| FA | 0° |
| SM Insert Loss | IL＜0.3dB (1310nm) |
| SM Return Loss | MT:UPC＞35dB ,APC＞40dB RX:RL＞35dB |
| Operating Temperature | -40℃～85℃ |
| Operating Humidity | 0%～70% |
| Storage Temperature | -40℃～85℃ |
Why Choose TAKFLY
Manufacturing Excellence
- Over 26 years of manufacturing experience in fiber optic products
- More than 500 assembly workers with 5+ years of experience
- 10+ R&D Engineers dedicated to product innovation
- 16 sets of Germany imported injection machines and 16 production lines
- 30+ sets of testing equipment including OTDR, 3D, VFL, IL & RL test instruments, tension strength testers, crush resistance testers, power meter testers, and light checkers
- OEM branding available
- Regular participation in major industry exhibitions: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
- Raw material incoming inspection with spot checks before production
- Comprehensive inspection after each manufacturing process
- Thorough inspection of work-in-progress
- Complete finished product inspection before packaging
- Final spot checks before shipping
Delivery & Packaging
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Flexible packaging options: Plastic bags, cartons, and pallets available according to customer requirements
