Uniboot Fiber Optic Patch Cable LC/UPC-LC/UPC OM3 OM3 OS2 Duplex OFNR 2.0mm Aqua
Product Details:
| Place of Origin: | China |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TK-UPC-2.0-1M-LCP-LCP-SM-OM3-XXX |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | US$0.01~3.99/PC |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 10000PCS/Day |
|
Detail Information |
|||
| Product Name: | Uniboot Fiber Optic Patch Cable LC/UPC-LC/UPC OS2 SM G657A Duplex OFNR 2.0mm | Intertion Loss: | ≤0.2dB |
|---|---|---|---|
| Return Loss: | PC MM ≥ 30dB, SM≥60dB (APC), SM ≥50dB (PC) | Fiber Type: | OS2 , OM3, OM4 |
| Diameter: | 2.0mm | Connector Type: | PC |
| Jacket Material: | LSZH/PVC/OFNR/OFNP | Color: | Aqua, Yellow, Violet, Or Customized |
| Wavelength: | 850/1310nm | Length: | 1M Or Customized |
| Operation Temperature: | -20℃~70℃ | Fiber Diameter: | 9/125 |
| Grade: | Telecom Grade | Certificate: | CE/ROHS/REACH |
| Production Capcity: | 10000PCS/Day | ||
Product Description
Uniboot Fiber Optic Patch Cable LC/UPC-LC/UPC OM3 OM3 OS2 Duplex OFNR 2.0mm Aqua
Uniboot Fiber Optic Patch Cable LC/UPC-LC/UPC OM3 OM3 OS2 Duplex OFNR 2.0mm Aqua Description:
Takfly Uniboot LC to LC Singlemode OS2 or Multimode OM3 OM4 Duplex Fiber Patch Cable (2.0mm, UPC Polish, OFNR Riser-Rated)
This fiber jumper cable features the LC-LC Uniboot connector, which is suitable for use in a high density environment. Comparing to the standard duplex connector, the design is more compact, as well as just one cable was used. This Uniboot LC fiber cable help to reduce cable management requirements and improve the hot airflow in a high density and crowded environment.
LC-LC uniboot design allows one cable to carry both fibers, reducing cable congestion when routing, and is suitable to be used in high-density fiber patching in data centers which need space saving and reduce cable management troubles.
Uniboot Fiber Optic Patch Cable LC/UPC-LC/UPC OM3 OM3 OS2 Duplex OFNR 2.0mm Aqua Specifications:
|
Connector Type |
Standard Clip LC to LC |
Polish Type |
UPC to UPC |
|
Fiber Count |
2 Fibers |
Fiber Grade |
Bend Insensitive Fiber |
|
Fiber Mode |
OS2/SM G657A1/SM G657A2, OM3/OM4 |
Wavelength |
850/1300nm 1310/1550nm |
|
Flame Rating |
Riser (OFNR) |
Cable Outside Diametre (OD) |
2.0mm |
|
Polarity |
A (Tx) to B (Rx) |
Tensile Strength |
60/100N (Long/Short Term) |
|
Min. Bend Radius (Optical Fiber) |
7.5mm |
Min. Bend Radius (Fiber Cable) |
20/10D (Dynamic/Static) |
|
Insertion Loss |
≤0.2dB |
Return Loss |
≥30dB |
|
Attenuation at 850nm |
≤3.5dB/km |
Attenuation at 1300nm |
≤1.5dB/km |
|
Operating Temperature |
-10 to 70°C (14 to 158℉) |
Storage Temperature |
-20 to 70℃ (-4 to 158℉) |
Uniboot Fiber Optic Patch Cable LC/UPC-LC/UPC OM3 OM3 OS2 Duplex OFNR 2.0mm Aqua Applications:
- CATV
- Telecommunication networks
- Active device termination
- Local area networks(LANS)
- Data processing networks
- Test equipment
- Wide area networks(WANS)
Uniboot Fiber Optic Patch Cable LC/UPC-LC/UPC OM3 OM3 OS2 Duplex OFNR 2.0mm Aqua Features:
• Uniboot with a Single Housing
• High back reflection loss
• Stable capability and high reliability
• Excellent mechanical capability
• PVC jacket as default
• An ideal solution for high-speed data transmission
• 100% inspected for optical characteristics before shipment

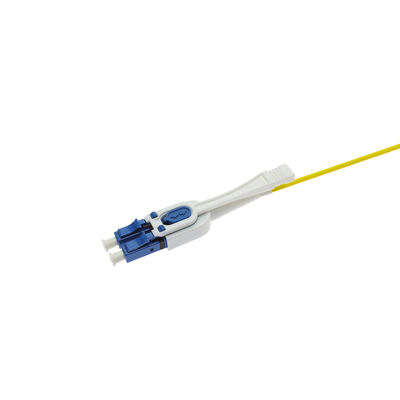

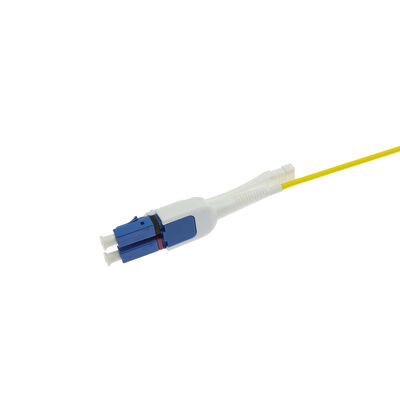

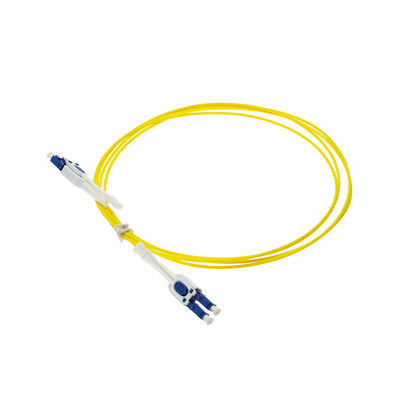

Uniboot Fiber Optic Patch Cable LC/UPC-LC/UPC OM3 OM3 OS2 Duplex OFNR 2.0mm Aqua Picture
