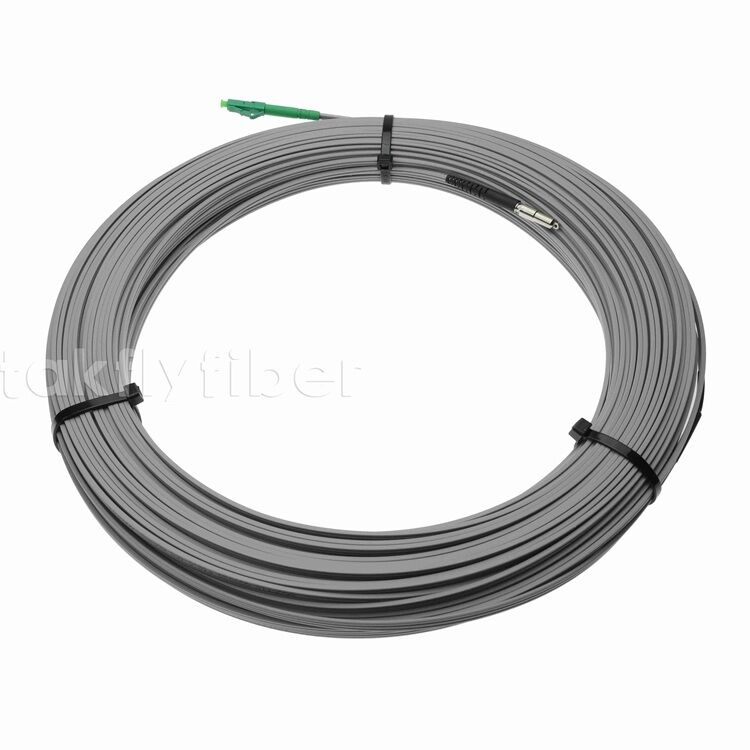

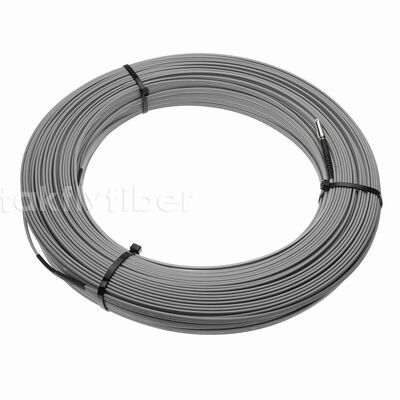

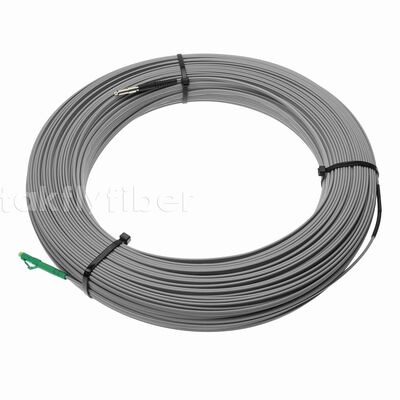

Pullable PRE-Connectorized Bullet SCAPC FTTH Drop Cable Fiber Optic Patchcord 2.0x5.2mm
Product Details:
| Place of Origin: | China |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TK-PC-SAP-SA-AS-3.0-TPU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | US$0.01~4.69/PC |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 10000PCS/Day |
|
Detail Information |
|||
| Product Name: | Pullable PRE-Connectorized Bullet SCAPC Figture 8 FTTH Fiber Optic Cable Patch Cord, 2.0x5.2mm | Intertion Loss: | ≤0.3dB |
|---|---|---|---|
| Return Loss: | APC SM ≥ 60dB | Fiber Type: | OS2, G652D , G657A1 , G657A2 , G657B3 |
| Diameter: | 2.0*5.2mm | Connector Type: | APC |
| Jacket Material: | LSZH | Color: | Black |
| Wavelength: | 1310nm,1550nm | Length: | 5M Or Customized |
| Operation Temperature: | -20℃~70℃ | Fiber Diameter: | 9/125 |
| Grade: | Telecom Grade | Certificate: | CE/ROHS/REACH |
| Production Capcity: | 10000PCS/Day | ||
| Highlight: | Pullable PRE-Connectorized Fiber Optic Patchcord,Bullet SCAPC FTTH Drop Cable,2.0x5.2mm SC/APC Patch Cord |
||
Product Description

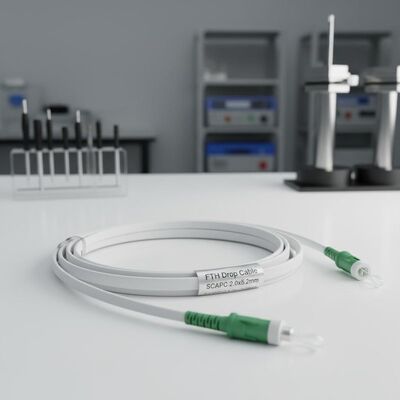

Pullable PRE-Connectorized Bullet SC/APC Figure 8 FTTH Fiber Optic Cable Patch Cord, 2.0x5.2mm
Takfly Bullet SC/APC connector can be threaded through pipes with inner diameter greater than 6mm. This final cable solution for FTTH projects connects between FAP boxes, FTB, FDB, face plates and ONU/ONT equipment. With easy fiber accessibility and simple installation, this FTTH drop patch cable can be directly connected to housing rooms.
Product Overview
This pre-connectorized fiber optic patch cord features a compact bullet SC/APC connector design for easy installation in tight spaces, making it ideal for last-mile FTTH deployments.
Fiber Optic Specifications
| Parameter | Specification |
|---|---|
| Mode Field Diameter | 8.6μm ± 0.4μm at 1310nm |
| Cladding Diameter | 125.0μm ± 0.7μm |
| Coating Diameter | 245μm ± 10μm |
| Coating-Cladding Concentricity | ≤ 12.5μm |
| Cut-off Wavelength | ≤ 1260nm |
| Attenuation Coefficient | 1310nm ≤ 0.4dB, 1550nm ≤ 0.3dB |
Cable Construction
Fiber Configuration: 1 core G657A1 fiber
Strength Member: FRP, 0.5mm × 2
Messenger Wire: Steel wire, 1.0mm diameter
Outer Sheath: LSZH Black
Cable Dimensions: 5.0 × 2.0mm
Strength Member: FRP, 0.5mm × 2
Messenger Wire: Steel wire, 1.0mm diameter
Outer Sheath: LSZH Black
Cable Dimensions: 5.0 × 2.0mm
Connector Performance
| Parameter | Specification |
|---|---|
| Connector Type | SC/APC (1310nm) |
| Insertion Loss | ≤ 0.3dB + 0.36dB/km @ 1310nm ≤ 0.3dB + 0.25dB/km @ 1550nm |
| Return Loss | ≥ 60dB |
| Endface Standard | IEC 61300-3-35 |
| Durability (1000 mating cycles) | 0.2dB Max increase |
| Installation Temperature | -10℃ to +60℃ |
| Operating Temperature | -25℃ to +70℃ |
| Storage Temperature | -40℃ to +75℃ |
| Cable Pull Strength | 90N |
Mechanical & Optical Performance
| Parameter | Long Term | Short Term |
|---|---|---|
| Tensile Strength | 200N | 500N |
| Crush Load | 1000N | 2000N |
| Wavelength | 1310/1550nm | |
| Attenuation | 0.4/0.3dB | |
Detailed Technical Parameters
| Item | Parameter | Unit | Specification (SM G657A2) |
|---|---|---|---|
| Mode Field Diameter | 1310nm | μm | 8.2~9.0 |
| 1550nm | μm | 9.1~10.1 | |
| Cladding Diameter | μm | 125 ± 0.7 | |
| Cladding Non-Circularity | % | ≤ 0.7 | |
| Core-Cladding Concentricity Error | μm | ≤ 0.5 | |
| Coating Diameter | μm | 245 ± 5 | |
| Coating Non-Circularity | % | ≤ 6.0 | |
| Cladding-Coating Concentricity Error | μm | ≤ 12 | |
| Cable Cutoff Wavelength | nm | λcc ≤ 1260 | |
| Attenuation (Max) | 1310nm | dB/KM | ≤ 0.36 |
| 1550nm | dB/KM | ≤ 0.25 | |
| Macro-Bending Loss | 1 Turn × 7.5mm radius @1550nm | dB | ≤ 0.08 |
| 1 Turn × 7.5mm radius @1265nm | dB | ≤ 0.25 |
Applications
- CATV Systems
- Telecommunication Networks
- Active Device Termination
- Local Area Networks (LANs)
- Data Processing Networks
- Test Equipment
- Wide Area Networks (WANs)
Key Features
- Low insertion loss and high reflection loss
- Excellent exchange ability
- Superior durability
- High temperature stability
- Compliant with Telcordia GR-326-CORE standard
