CPR B2ca Cca Dca Rated 48Cores Fiber Optic Breakout Cable Fanout Patchcord
Product Details:
| Brand Name: | TK/DF/Neutral |
| Certification: | CE, ROHS, REACH, CPR EN50575 |
| Model Number: | TK-48F-PC-LA-SU-XXXM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US$0.01~US$49.99 |
| Packaging Details: | Standard export packing |
| Delivery Time: | 7-9 working days |
| Payment Terms: | T/T,Western Union,Paypal,L/C |
| Supply Ability: | 10000pcs per week |
|
Detail Information |
|||
| Product Name: | CPR B2ca Cca Dca Rated 48Cores Fiber Optic Breakout Cable Fanout Patchcord | Length: | 20M Or Customized |
|---|---|---|---|
| Productname: | Fiber Optic Patchcord | Fiber Diameter: | 9/125μm |
| Cabletype: | Single-mode Or Multimode | Vibration: | ≤0.2dB |
| Connector Type: | LC, SC, FC,ST | Sheath: | LSZH |
| Operation Temperature: | -20 ~ +65 ℃ | Cable Material: | LSZH/PVC |
| Connector Color: | Green/Blue/Beige/ Aqua/ Magenta | Application: | Telecommunications, Data Centers, CATV, LAN |
| Insertionloss: | <= 0.3 DB | Transport Package: | Reel |
| Standardscompliance: | CE, RoHS, Reach, ISO9001, ISO14001 | ||
Product Description

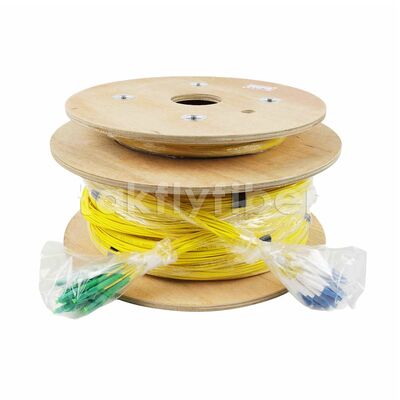

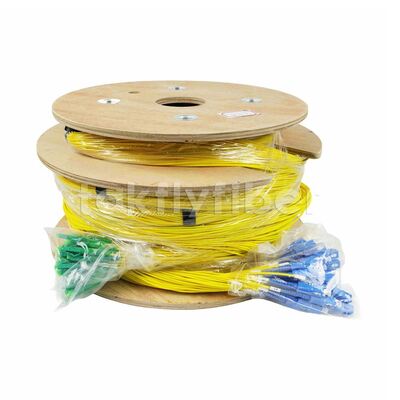

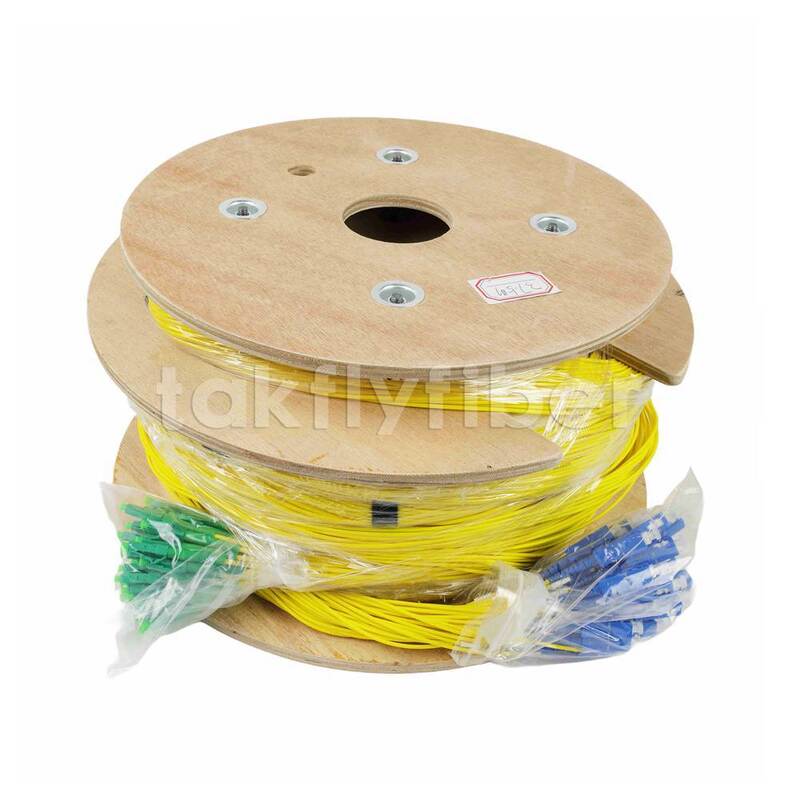

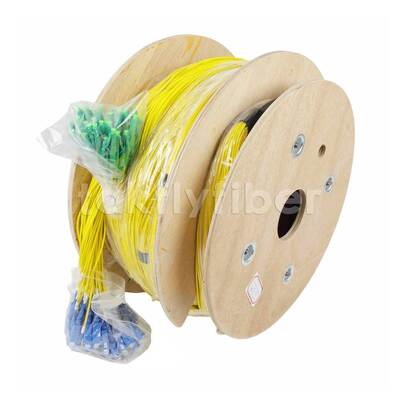

CPR B2ca Cca Dca Rated 48Cores OS2 Fiber Optic Breakout Cable Fanout Patchcord
CPR B2ca Cca Dca Rated 48Cores Fiber Optic Breakout Cable Fanout Patchcord Decription
Takfly pre-terminated fiber cable assemblies provide you with a reliable platform to build your network infrastructure. We offer the widest selection of product configurations to meet your unique installation needs for different job sites. Every piece of our product is 100% tested to assure excellent optical performance with traceable data.
Takfly pre-terminated cabling system provides Singlemode and Multimode cable assemblies with all standard type of connectors. Our manufacturing process ensures unsurpassed connector and cable performance. These high quality cable assemblies are ready to install upon arrival, its easy plug-and-play technology helps to reduce installation time and costs.
CPR B2ca Cca Dca Rated 48Cores Fiber Optic Breakout Cable Fanout PatchcordApplication
- Headend termination to a fiber "backbone"
- Termination of fiber rack systems
- Multi-floor deployment where select fibers are used at each floor
- Intrabuilding "backbones"
- Data center systems
CPR B2ca Cca Dca Rated 48Cores Fiber Optic Breakout Cable Fanout Patchcord Features
- Factory pre-terminated breakout fiber patch cable
- Eliminate feld terminations or splices, save on-site labor cost system
Multi-fber solutions from 2 to 144 fibers - Single-mode,OM2,OM2,OM3 fiber cable for option.SC,LC,ST,FC connectors
PC,UPC,or APC connector polishing - 100% factory tested with complete test results
- Custom length,staggering,connector type,far-outstyle,andlabeling.Pullingeye available for connector protection,on-site easy and quick installation
CPR B2ca Cca Dca Rated 48Cores Fiber Optic Breakout Cable Fanout Patchcord Specification
|
Connector Type |
LC/SC/FC/ST/E2000 |
|
End face type |
APC/UPC |
| Fiber Type | SM G652D, SM G657A1, SM G657A2 |
|
Cable Diameter |
10.5mm |
|
Insertion loss |
≤ 0.3 dB |
|
Return loss |
UPC SM≥50dB , APC SM ≥60dB |
|
Repeatability |
≤ 0.1 |
|
Durability |
≤ 0.2dB |
|
Interchangeability |
≤ 0.2dB |
|
Tensile strength |
>70N |
|
Operating Temperature |
-20℃~70℃ |
|
Storage Temperature |
-40℃~80℃ |
|
Outer Sheath Material |
LSZH |
|
Bending radius(Static/Dynamic) |
10D/20D |
|
Length |
10M, 20M, 50M, 100M or customized |
|
Fanout Length |
0.5M , 1M or customized |
|
Fanout Diameter |
2.0mm |
Selected High Quality Ferrule
Pre-terminated fber optic breakout patch cords avallable with high quality ceramic ferules, professional polishing technology. precse matching
for optical endface to achieve more stable transmission and efficient connection.
High Quality, 100% Testing
TAKFLY pre-terminated fber optic breakout patch cords are fuly 100% testing. compllantto the product standards and can meet the demandsof our users.
![]()
I have been working in this field more than 10 years, I believe, I could give you very good service and professional answers!
If you're interested in our products or have any doubt, why not send me inquiry at once?
![]()
