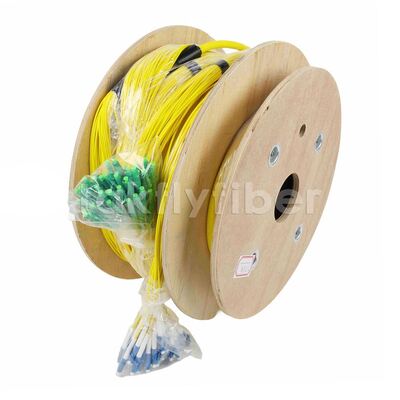

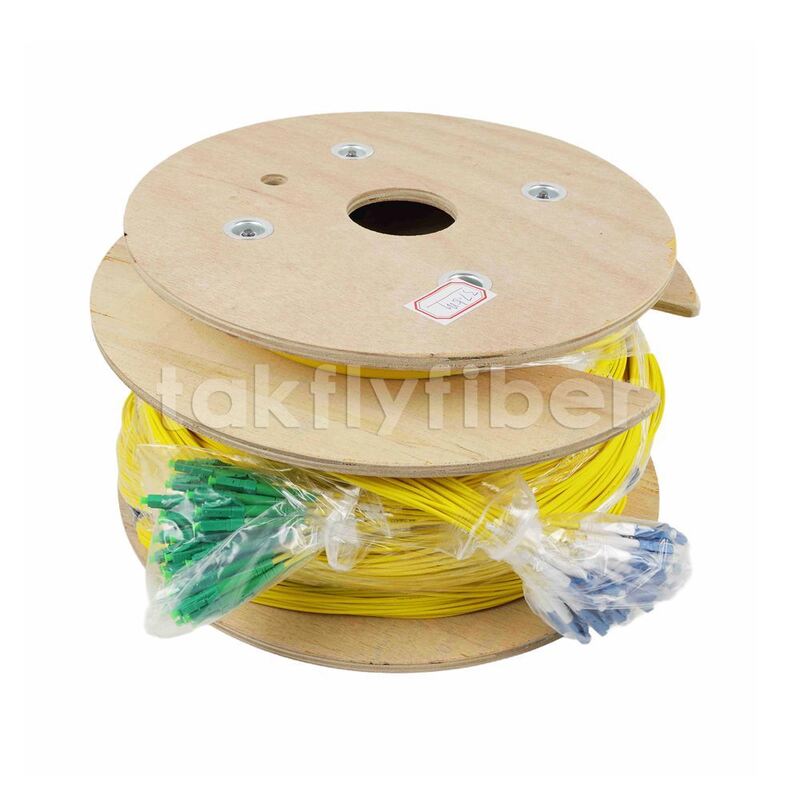

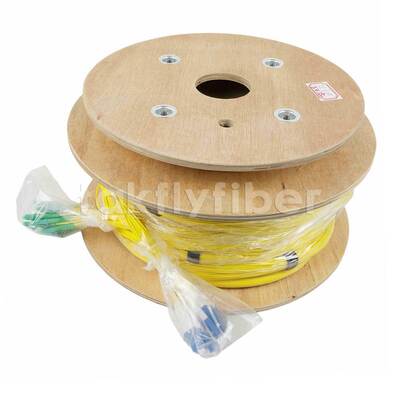

48 Cores High Density Fiber Optic Breakout Cable with LSZH Sheath Multi-Fiber Cable Assemblies
Product Details:
| Brand Name: | TK/DF/Neutral |
| Certification: | CE, ROHS, REACH, CPR EN50575 |
| Model Number: | TK-48F-PC-LU-LU-XXXM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US$0.01~US$49.99 |
| Packaging Details: | Standard export packing |
| Delivery Time: | 7-9 working days |
| Payment Terms: | T/T,Western Union,Paypal,L/C |
| Supply Ability: | 10000pcs per week |
|
Detail Information |
|||
| Product Name: | 48 Cores High Density Fiber Optic Breakout Cable Multi-Fiber Cable Assemblies | Length: | 20M Or Customized |
|---|---|---|---|
| Productname: | Fiber Optic Patchcord | Fiber Diameter: | 9/125μm |
| Cabletype: | Single-mode Or Multimode | Vibration: | ≤0.2dB |
| Connector Type: | LC, SC, FC,ST | Sheath: | LSZH |
| Operation Temperature: | -20 ~ +65 ℃ | Cable Material: | LSZH/PVC |
| Connector Color: | Green/Blue/Beige/ Aqua/ Magenta | Application: | Telecommunications, Data Centers, CATV, LAN |
| Insertionloss: | <= 0.3 DB | Transport Package: | Reel |
| Standardscompliance: | CE, RoHS, Reach, ISO9001, ISO14001 | ||
| Highlight: | 48 Cores Fiber Optic Breakout Cable,High Density Multi-Fiber Cable Assemblies,LSZH Sheath Fiber Optic Patchcord |
||
Product Description

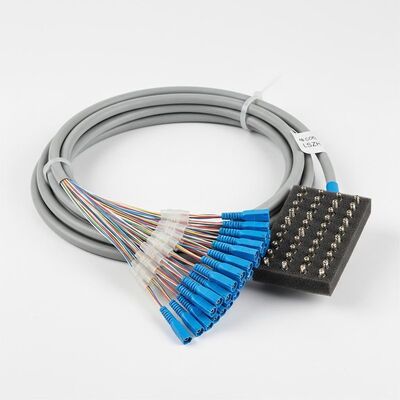

48 Cores High Density Fiber Optic Breakout Cable Multi-Fiber Cable Assemblies
TAKFLY provides high-quality pre-terminated cables for indoor and outdoor applications, with breakout numbers ranging from 8 to 144 cores. Available connector types include MPO, SC, LC, ST, FC, and MU, with breakout types including bare fiber, 0.9mm, 1.2mm, 2.0mm, and 3.0mm diameters.
All our pre-terminated cable products are custom-made to meet specific customer requirements. We can fulfill any customer demands regarding connector type, breakout type, breakout length/tolerance, cable structure, and other specifications.
Applications
- Headend termination to fiber backbone systems
- Termination of fiber rack systems
- Multi-floor deployment with selective fiber usage per floor
- Intrabuilding backbone infrastructure
- Data center systems and networks
Key Features
Factory pre-terminated breakout fiber patch cables
Eliminates field terminations or splices, reducing on-site labor costs
Multi-fiber solutions from 2 to 144 fibers
Single-mode, OM2, OM3 fiber cable options available
SC, LC, ST, FC connectors with PC, UPC, or APC polishing
100% factory tested with complete test results
Custom lengths, staggering, connector types, and labeling
Pulling eye available for connector protection and easy installation
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Type | LC/SC/FC/ST/E2000 |
| End Face Type | APC/UPC |
| Fiber Type | SM G652D, SM G657A1, SM G657A2 |
| Cable Diameter | 10.5mm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | UPC SM ≥50dB, APC SM ≥60dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile Strength | >70N |
| Operating Temperature | -20℃ to 70℃ |
| Storage Temperature | -40℃ to 80℃ |
| Outer Sheath Material | LSZH |
| Bending Radius (Static/Dynamic) | 10D/20D |
| Length | 10M, 20M, 50M, 100M or customized |
| Fanout Length | 0.5M, 1M or customized |
| Fanout Diameter | 2.0mm |
Quality Assurance
Selected High Quality Ferrule
Pre-terminated fiber optic breakout patch cords feature high-quality ceramic ferrules and professional polishing technology. Precise matching of optical endfaces ensures stable transmission and efficient connections.
High Quality, 100% Testing
TAKFLY pre-terminated fiber optic breakout patch cords undergo comprehensive 100% testing. All products comply with industry standards and meet user requirements for reliability and performance.
With over 10 years of experience in this field, we provide excellent service and professional technical support. If you're interested in our products or have any questions, please contact us for immediate assistance.
