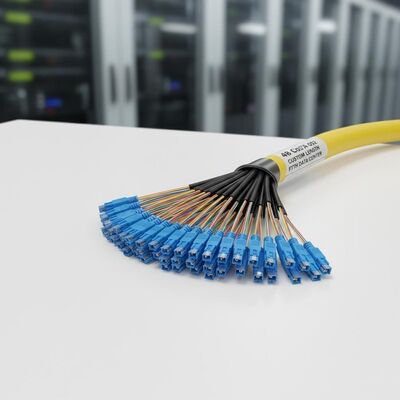

48 Cores G657A OS2 Pre-terminated Breakout Cable Fanout Pigtail with Customized Length for FTTH Data Center
Product Details:
| Brand Name: | TK/DF/Neutral |
| Certification: | CE, ROHS, REACH, CPR EN50575 |
| Model Number: | TK-48F-PC-LU-LU-XXXM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US$0.01~US$49.99 |
| Packaging Details: | Standard export packing |
| Delivery Time: | 7-9 working days |
| Payment Terms: | T/T,Western Union,Paypal,L/C |
| Supply Ability: | 10000pcs per week |
|
Detail Information |
|||
| Product Name: | SC SM G657A OS2 48 Cores Pre-terminated Breakout Cable Fanout Pigtail | Length: | 20M Or Customized |
|---|---|---|---|
| Productname: | Fiber Optic Patchcord | Fiber Diameter: | 9/125μm |
| Cabletype: | Single-mode Or Multimode | Vibration: | ≤0.2dB |
| Connector Type: | LC, SC, FC,ST | Sheath: | LSZH |
| Operation Temperature: | -20 ~ +65 ℃ | Cable Material: | LSZH/PVC |
| Connector Color: | Green/Blue/Beige/ Aqua/ Magenta | Application: | Telecommunications, Data Centers, CATV, LAN |
| Insertionloss: | <= 0.3 DB | Transport Package: | Reel |
| Standardscompliance: | CE, RoHS, Reach, ISO9001, ISO14001 | ||
| Highlight: | 48 Cores Fiber Optic Patchcord,G657A OS2 Breakout Fiber Patch Cable,Pre-terminated Fiber Optic Patchcord |
||
Product Description
SC SM G657A OS2 48 Cores Pre-terminated Breakout Cable Fanout Pigtail
TAKFLY provides high-quality pre-terminated cables for indoor and outdoor applications, with breakout configurations ranging from 8 to 144 cores. Available connector types include MPO, SC, LC, ST, FC, and MU, with various breakout types including bare fiber, 0.9mm, 1.2mm, 2.0mm, and 3.0mm diameters.
All pre-terminated cable products are custom-made to meet specific customer requirements. We accommodate diverse specifications including connector type, breakout type, breakout length/tolerance, and cable structure.
Applications
- CATV Systems
- Telecommunication Networks
- Active Device Termination
- Local Area Networks (LANs)
- Data Processing Networks
- Test Equipment
- Wide Area Networks (WANs)
Product Features
- Factory pre-terminated breakout fiber patch cable
- Eliminates field terminations or splices, reducing on-site labor costs
- Multi-fiber solutions from 2 to 144 fibers
- Single-mode, OM2, OM3 fiber cable options
- SC, LC, ST, FC connectors with PC, UPC, or APC polishing
- 100% factory tested with complete test results
- Custom length, staggering, connector type, fanout style, and labeling
- Pulling eye available for connector protection and easy installation
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Type | LC/SC/FC/ST/E2000 |
| End Face Type | APC/UPC |
| Fiber Type | SM G652D, SM G657A1, SM G657A2 |
| Cable Diameter | 10.5mm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | UPC SM ≥50dB, APC SM ≥60dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile Strength | >70N |
| Operating Temperature | -20℃ to 70℃ |
| Storage Temperature | -40℃ to 80℃ |
| Outer Sheath Material | LSZH |
| Bending Radius (Static/Dynamic) | 10D/20D |
| Length | 10M, 20M, 50M, 100M or customized |
| Fanout Length | 0.5M, 1M or customized |
| Fanout Diameter | 2.0mm |
Quality Assurance
Pre-terminated fiber optic breakout patch cords feature high-quality ceramic ferrules and professional polishing technology for precise optical endface matching, ensuring stable transmission and efficient connections.
TAKFLY pre-terminated fiber optic breakout patch cords undergo 100% testing and comply with product standards to meet user requirements.
With over 10 years of experience in this field, we provide excellent service and professional technical support.
If you're interested in our products or have any questions, please contact us for a detailed inquiry.
