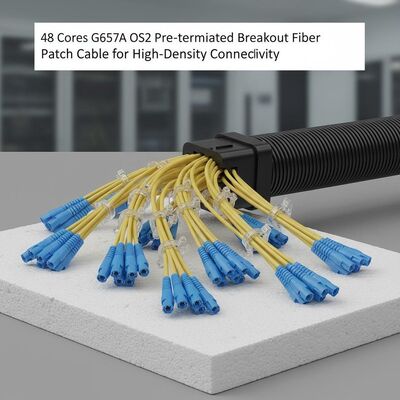

48 Cores G657A OS2 Pre-terminated Breakout Fiber Patch Cable for High-Density Connectivity
Product Details:
| Brand Name: | TK/DF/Neutral |
| Certification: | CE, ROHS, REACH, CPR EN50575 |
| Model Number: | TK-48F-PC-LU-LU-XXXM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US$0.01~US$49.99 |
| Packaging Details: | Standard export packing |
| Delivery Time: | 7-9 working days |
| Payment Terms: | T/T,Western Union,Paypal,L/C |
| Supply Ability: | 10000pcs per week |
|
Detail Information |
|||
| Product Name: | LC SC SM G657A OS2 48 Cores Pre-terminated Breakout Fiber Patch Cable | Length: | 20M Or Customized |
|---|---|---|---|
| Productname: | Fiber Optic Patchcord | Fiber Diameter: | 9/125μm |
| Cabletype: | Single-mode Or Multimode | Vibration: | ≤0.2dB |
| Connector Type: | LC, SC, FC,ST | Sheath: | LSZH |
| Operation Temperature: | -20 ~ +65 ℃ | Cable Material: | LSZH/PVC |
| Connector Color: | Green/Blue/Beige/ Aqua/ Magenta | Application: | Telecommunications, Data Centers, CATV, LAN |

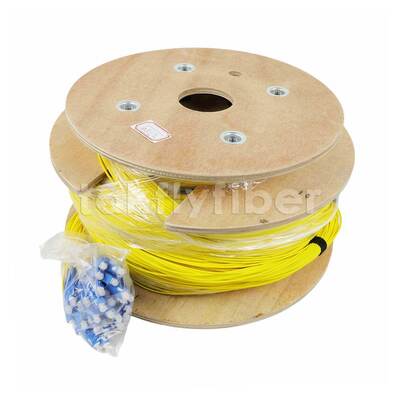

| Insertionloss: | <= 0.3 DB | Transport Package: | Reel |
| Standardscompliance: | CE, RoHS, Reach, ISO9001, ISO14001 | ||
| Highlight: | 48 Cores Fiber Optic Patchcord,G657A OS2 Breakout Fiber Patch Cable,Pre-terminated Fiber Optic Patchcord |
||
Product Description
Takfly manufactures multi-core Breakout Fiber Patch Cables with ruggedized breakout legs, pre-terminated with LC or SC connectors. The fanout legs are harnessed from 0.9mm to 2.0mm, depending on the addition of fiber cable breakout kits for added durability and versatility.
Multi-core/strand distribution fiber cables are built with color-coded 900um fibers and can accommodate 2 to 24 fibers within a single trunk or jacket. In some designs, 6, 8, or 12 fibers are bundled into subunits, which are individually numbered and enclosed within an outer jacket.
Takfly breakout fiber patch cable provides a convenient and cost-effective alternative to running multiple individual fiber cables or jumpers. As a key component of Plug & Play cabling systems, the fiber trunk offers a high-density, factory-terminated, and tested solution.
The multi-core breakout fiber patch cable facilitates quick and simple connections between central patch locations and work areas, eliminating the need for additional splicing or field terminations.
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANs)
- Data processing networks
- Test equipment
- Wide area networks (WANs)
- Factory pre-terminated breakout fiber patch cable
- Eliminate field terminations or splices, save on-site labor cost
- Multi-fiber solutions from 2 to 144 fibers
- Single-mode, OM2, OM3 fiber cable options
- SC, LC, ST, FC connectors available
- PC, UPC, or APC connector polishing
- 100% factory tested with complete test results
- Custom length, staggering, connector type, fanout style, and labeling
- Pulling eye available for connector protection and easy installation
| Parameter | Specification |
|---|---|
| Connector Type | LC/SC/FC/ST/E2000 |
| End Face Type | APC/UPC |
| Fiber Type | SM G652D, SM G657A1, SM G657A2 |
| Cable Diameter | 10.5mm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | UPC SM ≥50dB, APC SM ≥60dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile Strength | >70N |
| Operating Temperature | -20℃ to 70℃ |
| Storage Temperature | -40℃ to 80℃ |
| Outer Sheath Material | LSZH |
| Bending Radius (Static/Dynamic) | 10D/20D |
| Length | 10M, 20M, 50M, 100M or customized |
| Fanout Length | 0.5M, 1M or customized |
| Fanout Diameter | 2.0mm |
