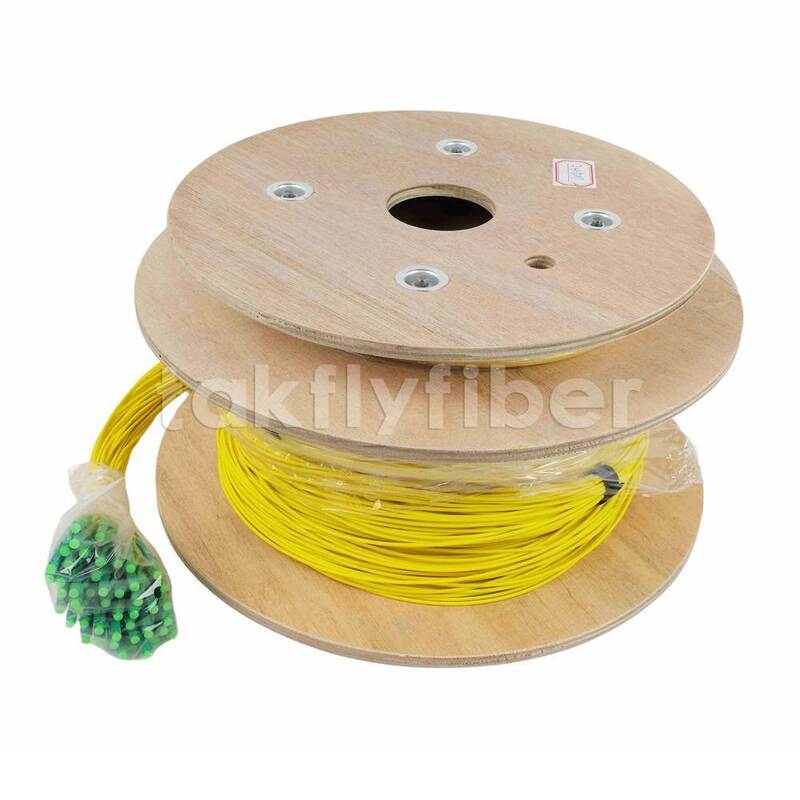

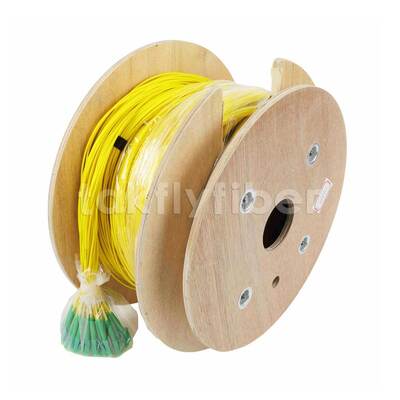

High Density LC SC Breakout Fiber Optic Cable Assembly – 12/24/36/48/72/96/144 Core
Product Details:
| Brand Name: | TK/DF/Neutral |
| Certification: | CE, ROHS, REACH, CPR EN50575 |
| Model Number: | TK-48F-PC-LA-LA-XXXM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US$0.01~US$49.99 |
| Packaging Details: | Standard export packing |
| Delivery Time: | 7-9 working days |
| Payment Terms: | T/T,Western Union,Paypal,L/C |
| Supply Ability: | 10000pcs per week |
|
Detail Information |
|||
| Product Name: | High Density LC SC Breakout Fiber Optic Cable Assembly – 12/24/36/48/72/96/144 Core | Length: | 20M Or Customized |
|---|---|---|---|
| Productname: | Fiber Optic Patchcord | Fiber Diameter: | 9/125μm |
| Cabletype: | Single-mode Or Multimode | Vibration: | ≤0.2dB |
| Connector Type: | LC, SC, FC,ST | Sheath: | LSZH |
| Operation Temperature: | -20 ~ +65 ℃ | Cable Material: | LSZH/PVC |
| Connector Color: | Green/Blue/Beige/ Aqua/ Magenta | Application: | Telecommunications, Data Centers, CATV, LAN |
| Insertionloss: | <= 0.3 DB | Transport Package: | Reel |
| Standardscompliance: | CE, RoHS, Reach, ISO9001, ISO14001 | ||
| Highlight: | High Density LC SC fiber optic cable,Breakout fiber optic patchcord 144 core,LC SC fiber optic cable assembly |
||
Product Description
Takfly is a leading manufacturer and supplier of breakout fiber optic cable assemblies with extensive experience. We offer high-quality products and wholesale customized solutions for 12/24/36/48/72/96/144 core configurations. Samples are available upon request.
The 12/24/36/48/72/96/144 Core Breakout Fiber Optic Cable Assembly is engineered for high-density FTTH, FTTx, and telecom networks. This assembly splits multi-core ribbons into individual fiber units for direct termination or integration into patch panels. Its robust PVC/LSZH jacket and high-performance connectors ensure minimal loss and maximum reliability across demanding environments.
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
- Low insertion loss and high reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
| Parameter | Specification |
|---|---|
| Connector Type | LC |
| End face type | APC |
| Fiber Type | SM G652D, SM G657A1, SM G657A2 |
| Cable Diameter | 10.5mm |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM ≥60dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >70N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | LSZH |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | 10M, 20M, 50M, 100M or customized |
| Fanout Length | 0.5M, 1M or customized |
| Fanout Diameter | 2.0mm |
- Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
- Mode type: single mode (UPC and APC) / multi mode (PC)
- Cable diameter: 0.9 / 2.0 / 3.0 mm (can customize other diameters)
- Coating material: PVC / LSZH
- Fiber count: simple / duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core and more
- Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
- Patch cord length: according to your requirement
- MPO/MTP connector specifications: method (A type / B type / C type), male or female, fiber count (4/8/12/16/24/32/48/72/96/144/288 fiber)
