Pushable Bullet Flexible MTC-SC FTTH Drop Cable with 3.0mm Diameter and Low Insertion Loss ≤0.3dB
Product Details:
| Place of Origin: | China |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TK-PC-SAP-SA-AS-3.0-TPU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | US$0.01~4.69/PC |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 10000PCS/Day |
|
Detail Information |
|||
| Product Name: | Pushable Bullet Flexible MTC-SC Pushable FTTH Fiber Cable Patchcord | Intertion Loss: | ≤0.3dB |
|---|---|---|---|
| Return Loss: | APC SM ≥ 60dB | Fiber Type: | OS2, G652D , G657A1 , G657A2 , G657B3 |
| Diameter: | 3.0mm | Connector Type: | APC |
| Jacket Material: | LSZH | Color: | Black |
| Wavelength: | 1310nm,1550nm | Length: | 5M Or Customized |
| Operation Temperature: | -20℃~70℃ | Fiber Diameter: | 9/125 |
| Grade: | Telecom Grade | Certificate: | CE/ROHS/REACH |
| Production Capcity: | 10000PCS/Day | ||
| Highlight: | Pushable Bullet Connector FTTH Drop Cable,3.0mm Diameter Fiber Optic Patchcord,Low Insertion Loss ≤0.3dB Pushable Fiber Jumper |
||
Product Description
Pushable Bullet Flexible MTC-SC Pushable FTTH Fiber Cable Patchcord
Product Overview
Takfly Pushable Bullet MTC-SC fiber cable is a type of pushable fiber optic jumper, manufactured for quick, reliable and uncomplicated fiber deployment in FTTH and FTTX networks. This pre-terminated FTTH drop cable design is considered for easy routing into indoor walls, conduits, and places where microduct fiber optic solutions are used, without the need of coupling or splicing.
Its standard SC connector on one end and bullet-style pushable connector (MTC) on the other end make this SC bullet fiber jumper a great choice to reach the challenging locations for last drops in the fibre network — through the tight wall spaces or small ducts.
Technical Specifications
| Parameter | Specification |
|---|---|
| End face type | PC, UPC and APC |
| Fiber type | SM G657A2 |
| Cable Diameter | 3.0mm |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM≥ 60 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >200N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | LSZH or TPU Black Jacket |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | Customized |
Fiber Parameters
| No. | Item | Unit | Specification (SM G657A2/G657B3) |
|---|---|---|---|
| 1 | Mode Field Diameter | 1310nm μm 1550nm μm | 8.2~9.0 9.1~10.1 |
| 2 | Cladding Diameter | μm | 125±0.7 |
| 3 | Cladding Non-Circularity | % | ≤0.7 |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 |
| 5 | Coating Diameter | μm | 245±5 |
| 6 | Coating Non-Circularity | % | ≤6.0 |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12 |
| 8 | Cable Cutoff Wavelength | nm | λcc ≤1260 |
| 9 | Attenuation (Max) | 1310nm dB/KM 1550nm dB/KM | ≤0.36 ≤0.25 |
| 10 | Macro-Bending Loss | 1 Turn x 7.5mm radius@1550nm dB 1 Turn x 7.5mm radius@1265nm dB | ≤0.08 ≤0.25 |
Cable Dimensions and Construction
| Item | Description |
|---|---|
| Optical Fiber | Fiber count: 1 Color: Red |
| Tight Buffer Fiber | Material: LSZH Diameter: 0.85±0.05 mm Color: Red One-time stripping length: 5-8 mm |
| Strength Member | Material: Aramid yarn |
| Outer Jacket | Material: TPU Diameter: 3.0±0.2 mm Color: Black |
Mechanical and Environmental Test Characteristics
| Items | Description |
|---|---|
| Tensile performance | IEC 60794-1-2-E1: short-term 800N, long-term 300N |
| Crush Resistance | IEC 60794-1-E3: short-term 500N, long-term 100N |
| Cable Impact | IEC 60794-1-E4: No damage to outer jacket and inner elements |
| Repeat Bending | IEC 60794-1-E6 |
| Torsion | IEC 60794-1-E7 |
| Cable Bend | IEC 60794-1-E11 |
| Temperature Range | IEC 60794-1-2-F1: -20℃-+60℃ |
| Bending Radius | Static: 10mm, Dynamic: 20mm |
Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
Key Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE

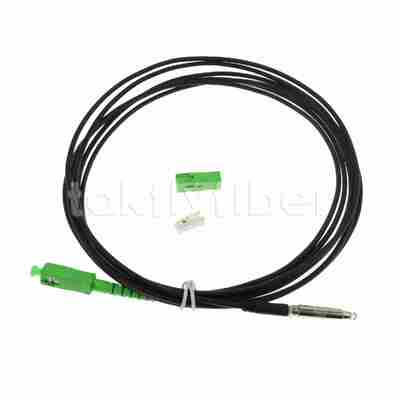

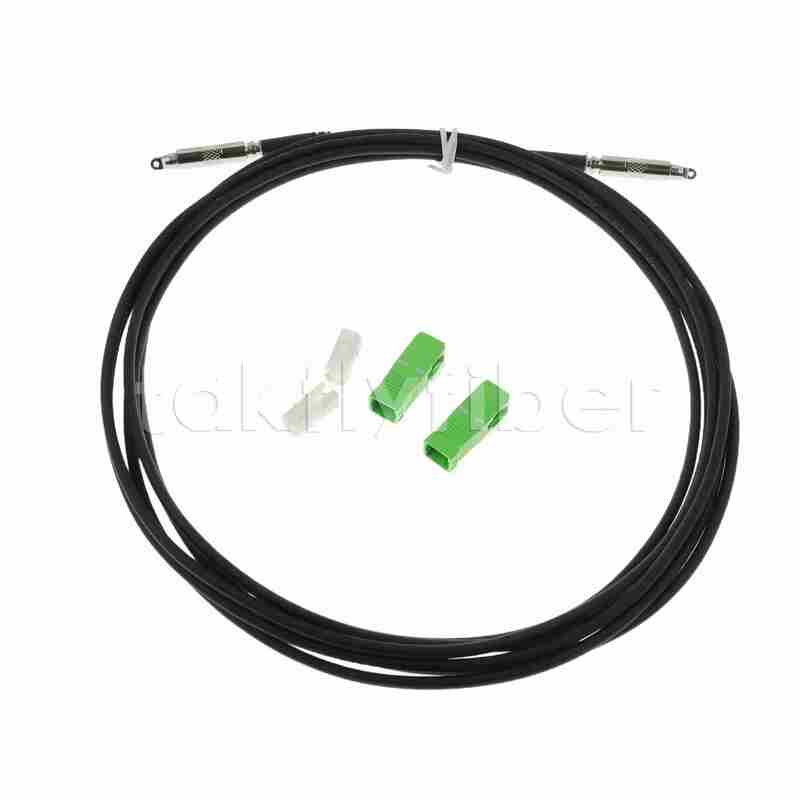

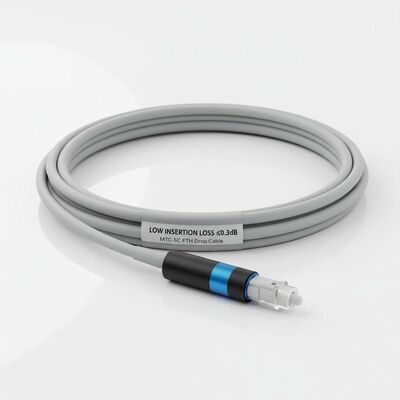

Product Images
Why Choose Takfly?
- Established in 2000, with more than 400 workers, Takfly has 21 years manufacturing experience in fiber optic products
- Product range includes: MPO/MTP Patch cord, Fiber Optic Patchcord, pigtail, adapter, attenuator, PLC Splitter, WDM/CWDM/DWDM, Termination Box, Fast Connector, Media Converter, POE Switch, SFP Transceiver and High Power products
- Certified with ISO9001, ISO14001, CE, ROHS, REACH, FCC, CPR and Anatel
- Main customers: Telefonica, Orange, Movistar, Vodafone, Singtel, Starhub, Corning, Amphenol, SENKO
- R&D team with more than 26 engineers, OEM and ODM customer designs welcomed
- High quality, attractive pricing and fast delivery (2-7 days)
With more than 10 years of sales experience and shipping experience in optical fiber products, we have helped more than 127 customers to expand their business and increase sales. We provide professional guidance to help you save time and money while increasing your sales.
