Flexible MTC SC Pullable Pushable Fiber Optic Cable Assemblies
Product Details:
| Place of Origin: | China |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TK-PC-SAP-SA-A2-3.0-TPU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | US$0.01~9.99/PC |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 10000PCS/Day |
|
Detail Information |
|||
| Product Name: | Flexible MTC SC Pullable Pushable Fiber Optic Cable Assemblies | Intertion Loss: | ≤0.3dB |
|---|---|---|---|
| Return Loss: | APC SM ≥ 60dB | Fiber Type: | SM G657A2 , G657B3 |
| Diameter: | 3.0mm | Connector Type: | APC |
| Jacket Material: | LSZH/TPU | Color: | Black |
| Wavelength: | 1310nm,1550nm | Length: | 5M Or Customized |
| Operation Temperature: | -20℃~70℃ | Fiber Diameter: | 9/125 |
| Grade: | Telecom Grade | Certificate: | CE/ROHS/REACH |
| Production Capcity: | 10000PCS/Day | ||
| Highlight: | flexible MTC SC fiber optic cable,pullable pushable fiber optic patchcord,SC fiber optic cable assemblies |
||
Product Description

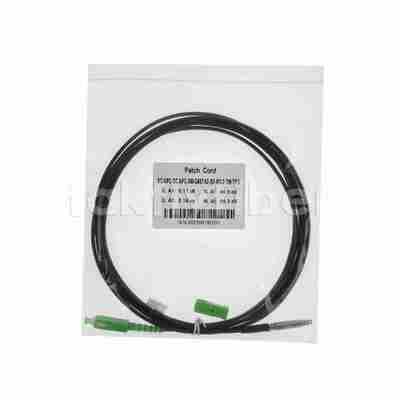

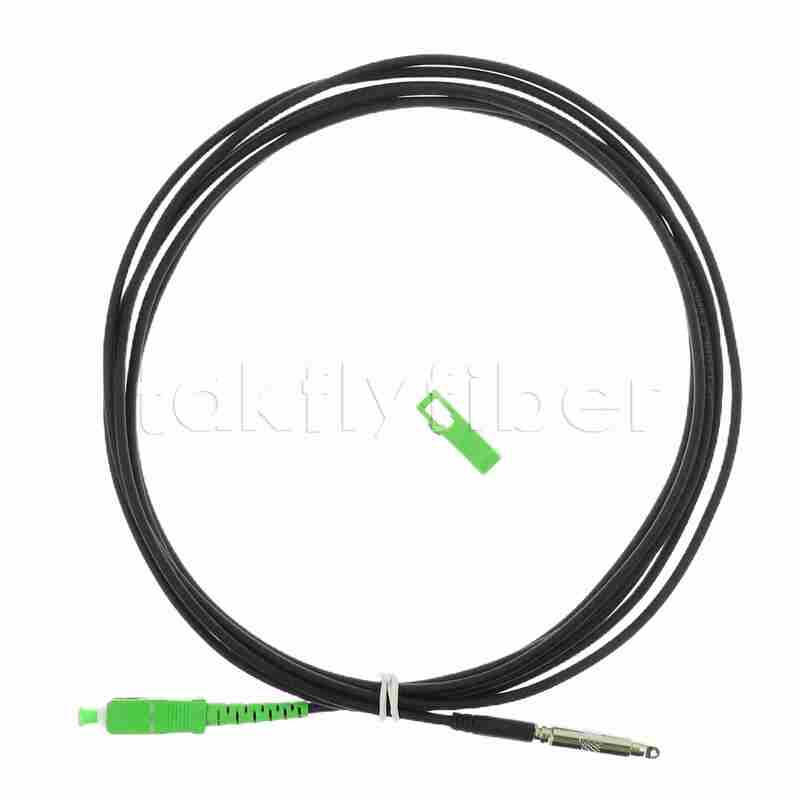

Flexible MTC SC Pullable Pushable Fiber Optic Cable Assemblies
Takfly Bullet Pushable cable assemblies offer a flexible, pushable pre-terminated fiber optic drop solution for fast and reliable FTTX deployments.
The bullet pushable connector enables the pre-connectorized cable to be installed through microducts and small holes that are typical of most FTTX scenarios. This cable can be installed without using large conduits or drilling big holes through the customer's wall.
This bullet Pushable assembly can be successfully pushed through small holes and microduct. Hand push distances vary according to bend frequency and duct quality. The rugged round drop cable with the pushable pre-terminated connector reduces the cost of fiber deployments as well as the intrinsic skill and difficulty of handling and connecting customer drop cables.
| End face type | PC, UPC and APC |
|---|---|
| Fiber type | SM G657A2 |
| Cable Diameter | 3.0mm |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM≥ 60 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >200N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | LSZH or TPU Black Jacket |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | Customized |
| NO. | Item | Unit | Specification (SM G657A2/G657B3) |
|---|---|---|---|
| 1 | Mode Field Diameter | 1310nm 1550nm |
8.2~9.0 μm 9.1~10.1 μm |
| 2 | Cladding Diameter | μm | 125±0.7 |
| 3 | Cladding Non-Circularity | ％ | ≤0.7 |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 |
| 5 | Coating Diameter | μm | 245±5 |
| 6 | Coating Non-Circularity | ％ | ≤6.0 |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12 |
| 8 | Cable Cutoff Wavelength | nm | λcc ≤1260 |
| 9 | Attenuation (Max) | 1310nm 1550nm |
≤0.36 dB/KM ≤0.25 dB/KM |
| 10 | Macro-Bending Loss | 1 Turn x 7.5mm radius@1550nm 1 Turn x 7.5mm radius@1265nm |
≤0.08 dB ≤0.25 dB |
| Item | Descriptions |
|---|---|
| Optical Fiber | Fiber count: 1 Color: Red |
| Tight Buffer Fiber | Material: LSZH Diameter: 0.85±0.05 mm Color: Red One-time stripping length: 5-8 mm |
| Strength Member | Material: Aramid yarn |
| Outer Jacket | Material: TPU Diameter: 3.0±0.2 mm Color: Black |
| Items | Descriptions |
|---|---|
| Tensile performance | IEC 60794-1-2-E1: short-term 800N, long-term 300N |
| Crush Resistance | IEC 60794-1-E3: short-term 500N, long-term 100N |
| Cable Impact | IEC 60794-1-E4: No damage to outer jacket and inner elements |
| Repeat Bending | IEC 60794-1-E6 |
| Torsion | IEC 60794-1-E7 |
| Cable Bend | IEC 60794-1-E11 |
| Temperature Range | IEC 60794-1-2-F1: -20℃-+60℃ |
| Bending Radius | Static: 10mm, Dynamic: 20mm |
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
Established in 2000, with more than 400 workers, Takfly has 21 years manufacturing experience in fiber optic products, mainly focusing on: MPO/MTP Patch cord, Fiber Optic Patchcord, pigtail, adapter, attenuator, PLC Splitter, WDM/CWDM/DWDM, Termination Box, Fast Connector, Media Converter, POE Switch, SFP Transceiver and High Power products, etc.
We've certified with ISO9001, ISO14001, CE, ROHS, REACH, FCC, CPR and Anatel.
Main customers: Telefonica, Orange, Movistar, Vodafone, Singtel, Starhub, Corning, Amphenol, SENKO, etc.
Availability of R & D with more than 26 engineers, OEM, ODM customer designs are also welcomed.
High quality, attractive price and fast delivery (2-7 days).
With more than 10 years of sales experience and shipping experience in optical fiber products, I have helped more than 127 customers to expand their business and increase sales, and believe we can provide you with professional guidance, help you save time and money, increase your sales.
