CPR Rated SC Pushable FTTH Drop Cable Fiber Optic Patchcord with 3.0mm TPU Jacket and G657A2 Fiber
Product Details:
| Place of Origin: | China |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TK-PC-SAP-SA-A2-3.0-TPU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | US$0.01~9.99/PC |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 10000PCS/Day |
|
Detail Information |
|||
| Product Name: | CPR Rated SC Pushable FTTH Drop Cable Fiber Optic Patchcord SM G657A2 3.0mm TPU Jacket | Intertion Loss: | ≤0.3dB |
|---|---|---|---|
| Return Loss: | APC SM ≥ 60dB | Fiber Type: | SM G657A2 , G657B3 |
| Diameter: | 3.0mm | Connector Type: | APC |
| Jacket Material: | LSZH/TPU | Color: | Black |
| Wavelength: | 1310nm,1550nm | Length: | 5M Or Customized |
| Operation Temperature: | -20℃~70℃ | Fiber Diameter: | 9/125 |
| Grade: | Telecom Grade | Certificate: | CE/ROHS/REACH |
| Production Capcity: | 10000PCS/Day | ||
| Highlight: | CPR Rated Fiber Optic Patchcord,3.0mm TPU Jacket FTTH Drop Cable,G657A2 Fiber SC Pushable Cable |
||
Product Description
CPR Rated SC Pushable FTTH Drop Cable Fiber Optic Patchcord
SC Pushable FTTH Drop Cable Fiber Optic Patchcords are pre-terminated, 3mm slim, armored, or ruggedized cables designed for tool-free, fast installation in tight spaces (conduits/pipes). They feature a special "bullet" style connector for easy pulling and pushing. These 1-core or multi-core Single-Mode (OS2) simplex cables are ideal for FTTx last-drop connections, providing low insertion loss and high durability for direct-to-home fiber deployment.
Key Features and Benefits
- Easy Installation: Designed for tool-free, pushable, and pullable installation through conduits or small ducts, minimizing need for splicing
- Design: Features a 3mm slim, flexible, ruggedized, and often black LSZH jacket for harsh, direct-buried, or underground environments
- Pre-terminated Connector: Equipped with SC/APC or SC/UPC connectors, featuring a bullet-style connector on one end to prevent damage during installation
- Performance: High-speed data transmission with low insertion loss (0.3dB) and high return loss (60dB for APC)
Technical Specifications
| Parameter | Specification |
|---|---|
| End face type | PC, UPC and APC |
| Fiber type | SM G657A2 |
| Cable Diameter | 3.0mm |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM≥ 60 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >200N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | LSZH or TPU Black Jacket |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | Customized |
Fiber Parameters
| Item | Unit | Specification (SM G657A2/G657B3) |
|---|---|---|
| Mode Field Diameter @1310nm | μm | 8.2~9.0 |
| Mode Field Diameter @1550nm | μm | 9.1~10.1 |
| Cladding Diameter | μm | 125±0.7 |
| Cladding Non-Circularity | % | ≤0.7 |
| Core-Cladding Concentricity Error | μm | ≤0.5 |
| Coating Diameter | μm | 245±5 |
| Coating Non-Circularity | % | ≤6.0 |
| Cladding-Coating Concentricity Error | μm | ≤12 |
| Cable Cutoff Wavelength | nm | λcc ≤1260 |
| Attenuation @1310nm | dB/KM | ≤0.36 |
| Attenuation @1550nm | dB/KM | ≤0.25 |
| Macro-Bending Loss @1550nm | dB | ≤0.08 |
| Macro-Bending Loss @1265nm | dB | ≤0.25 |
Cable Construction
| Component | Description |
|---|---|
| Optical Fiber | Fiber count: 1, Color: Red |
| Tight Buffer Fiber | Material: LSZH, Diameter: 0.85±0.05 mm, Color: Red, One-time stripping length: 5-8 mm |
| Strength Member | Material: Aramid yarn |
| Outer Jacket | Material: TPU, Diameter: 3.0±0.2 mm, Color: Black |
Mechanical and Environmental Characteristics
| Test Item | Description |
|---|---|
| Tensile performance | IEC 60794-1-2-E1: short-term 800N, long-term 300N |
| Crush Resistance | IEC 60794-1-E3: short-term 500N, long-term 100N |
| Cable Impact | IEC 60794-1-E4: No damage to outer jacket and inner elements |
| Repeat Bending | IEC 60794-1-E6 |
| Torsion | IEC 60794-1-E7 |
| Cable Bend | IEC 60794-1-E11 |
| Temperature Range | IEC 60794-1-2-F1: -20℃-+60℃ |
| Bending Radius | Static: 10mm, Dynamic: 20mm |
Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
Performance Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE

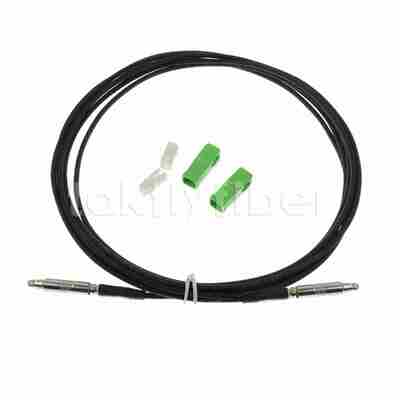

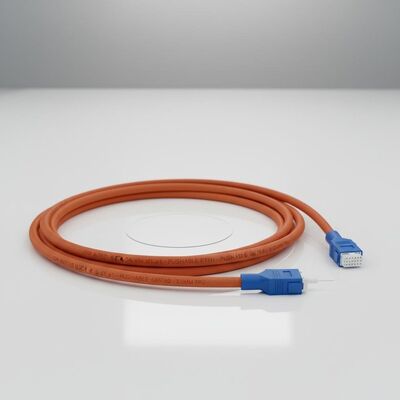

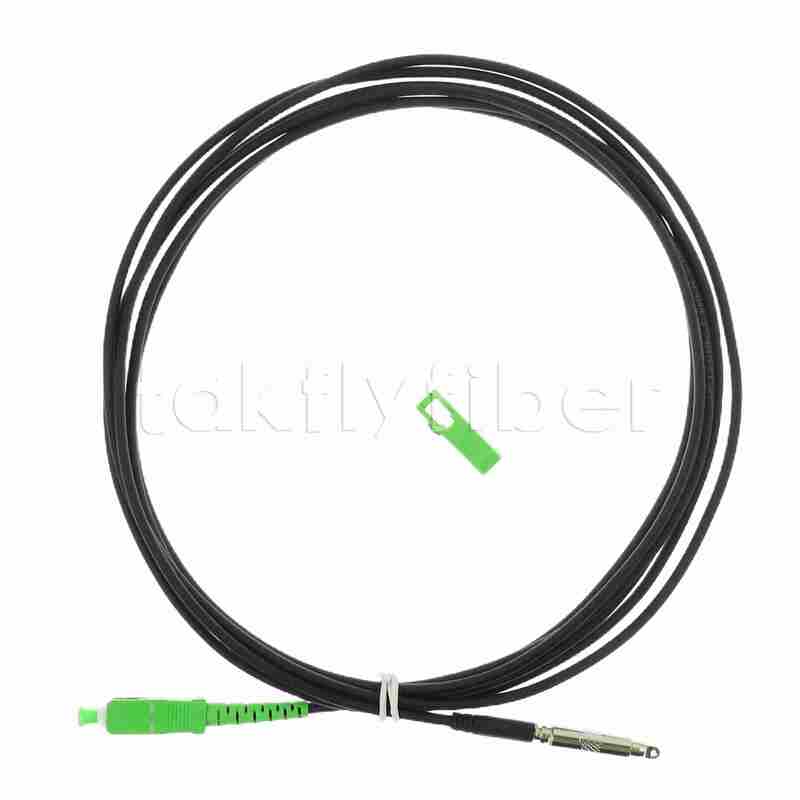

Product Images
