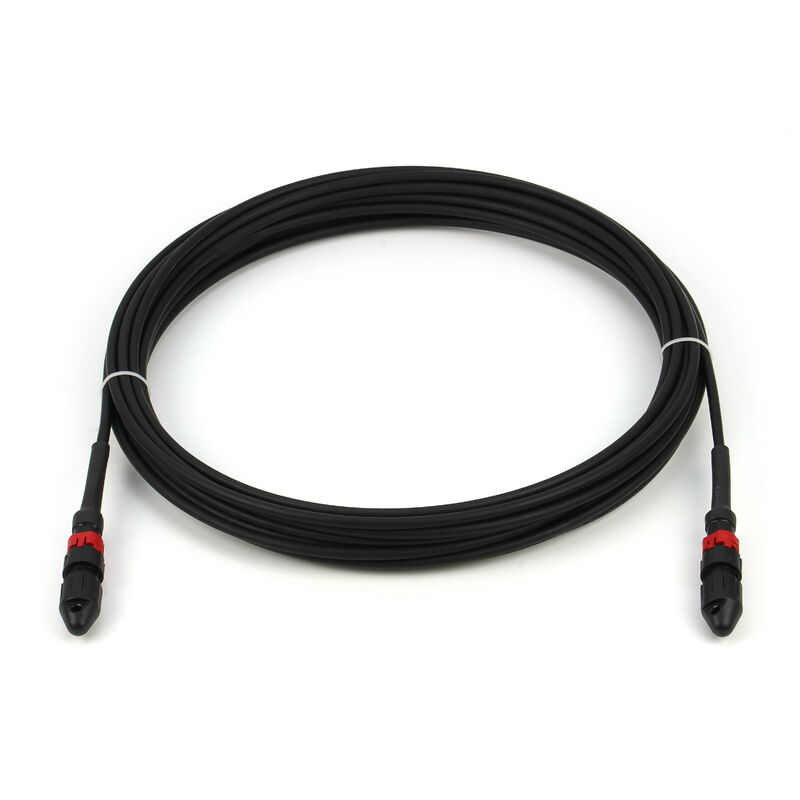

Fiber Optic MPO for SENKO IP 09C1 Fiber Optic Patch Cord for Data Center
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | Takfly/OEM |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | MPO for SENKO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | MPO For SENKO | End Face Type: | UPC And APC |
|---|---|---|---|
| Fiber Type: | SM；MM | Cable Diameter: | 2.0、3.0 Or Customized (Simplex/duplex) |
| Insertion Loss: | ≤ 0.3 DB | Return Loss: | UPC SM≥50dB 、APC SM≥ 60 DB、 PC MM ≥ 35 DB |
| Repeatability: | ≤ 0.1 | Wavelength: | SM:1310/1550 MM:850/1300 |
| Operating Temperature: | -20℃~70℃ | Storage Temperature: | -40℃~80℃ |
| IP: | 09C1 | ||
| Highlight: | Fiber Optic MPO patch cord,MPO MTP data center cable,SENKO IP 09C1 fiber optic |
||
Product Description
Fiber Optic MPO for SENKO IP 09C1 Fiber Optic Patch Cord for Data Center
Fiber Optic MPO for SENKO IP 09C1 Fiber Optic Patch Cord for Data Center
MPO for Senko Applications
- Asynchronous Transmission Mode (ATM)
- Gigabit Ethernet
- Active Devices/Transceiver Interface
- CATV, Video and Multimedia
- Premise Installations
- Telecommunication Networks
- Parallel optical interconnect between PC Cards and patch panels
- Industrial & Military
- Interconnection for O/E modules
- Optical Switch interframe connections
MPO for Senko Features
- Precision molded MT ferrule
- High precision guide pins for exact alignment
- Compact design, up to 4,8,12,24 fibers
- IEC 61754-7 Compliant
- EIA/TIA-604-5 Compliant
MPO for Senko Specifications
| End face type | PC |
|---|---|
| Fiber type | SM (G652,G655,G657); MM (OM1-OM5) |
| Cable Diameter | 2.0,3.0 or customized (Simplex/duplex) |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >70N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | PVC, LSZH, TPU |
| Bending radius (Static/Dynamic) | 10D/20D |
| IP | 09C1 |

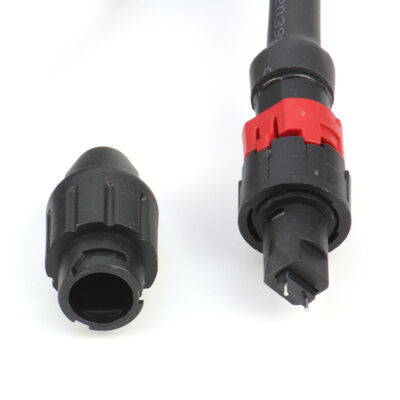

Product Images
Why Choose TAKFLY?
Professional Manufacturer
- More than 25 years manufacturing experience in Fiber optic products
- Over 450 assembly workers with 3+ years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- 30+ sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand accepted
- Exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check raw material incoming inspection before production
- Full inspection after every individual process
- Full inspection of production half done
- Full inspection of finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet available according to your request
