Fiber Optic MPO-CS Breakout Fiber Optic Patch Cord for Data Center
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | Takfly/OEM |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | MPO-CS Breakout Fiber Optic Patch Cord |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | MPO-CS Breakout Fiber Optic Patch Cord | End Face Type: | UPC And APC |
|---|---|---|---|
| Fiber Type: | SM；MM | Cable Diameter: | 2.0、3.0 Or Customized (Simplex/duplex) |
| Insertion Loss: | ≤ 0.3 DB | Return Loss: | UPC SM≥50dB 、APC SM≥ 60 DB、 PC MM ≥ 35 DB |
| Repeatability: | ≤ 0.1 | Wavelength: | SM:1310/1550 MM:850/1300 |
| Operating Temperature: | -20℃~70℃ | Storage Temperature: | -40℃~80℃ |
| Outer Sheath Material: | LSZH | ||
| Highlight: | MPO-CS breakout fiber optic patch cord,data center fiber optic cable,MPO MTP fiber optic patch cord |
||
Product Description
Fiber Optic MPO-CS Breakout Fiber Optic Patch Cord for Data Center
Product Overview
MPO-CS Breakout Fiber Optic Patch Cord PVC/LSZH SM/MM
MPO-CS breakout patch cord generally consists of four components: main cable, breakout cable, branching device and connector. The multi-core main cable is convenient for cabling management and not easily entangled, making it an ideal product for optical cabling in high-density environments.
Applications
- Asynchronous Transmission Mode (ATM)
- Gigabit Ethernet
- Active Devices/Transceiver Interface
- CATV, Video and Multimedia
- Premise Installations
- Telecommunication Networks
- Parallel optical interconnect between PC Cards and patch panels
- Industrial & Military
- Interconnection for O/E modules
- Optical Switch interframe connections
Features
- Precision molded MT ferrule
- High precision guide pins for exact alignment
- Compact design, up to 4,8,12,24 fibers
- IEC 61754-7 Compliant
- EIA/TIA-604-5 Compliant
Specifications
| End face type | UPC and APC; PC and APC |
|---|---|
| Fiber type | SM (G652,G655,G657); MM (OM1-OM5) |
| Cable Diameter | 2.0,3.0 or customized (Simplex/duplex) |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >70N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | PVC, LSZH, TPU |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | Customized |

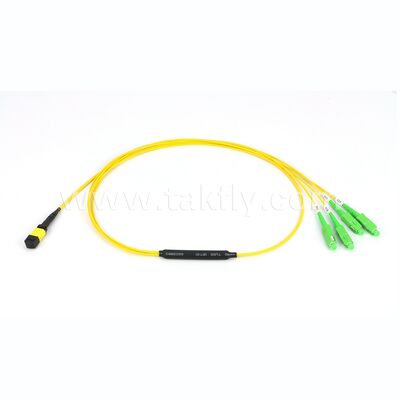

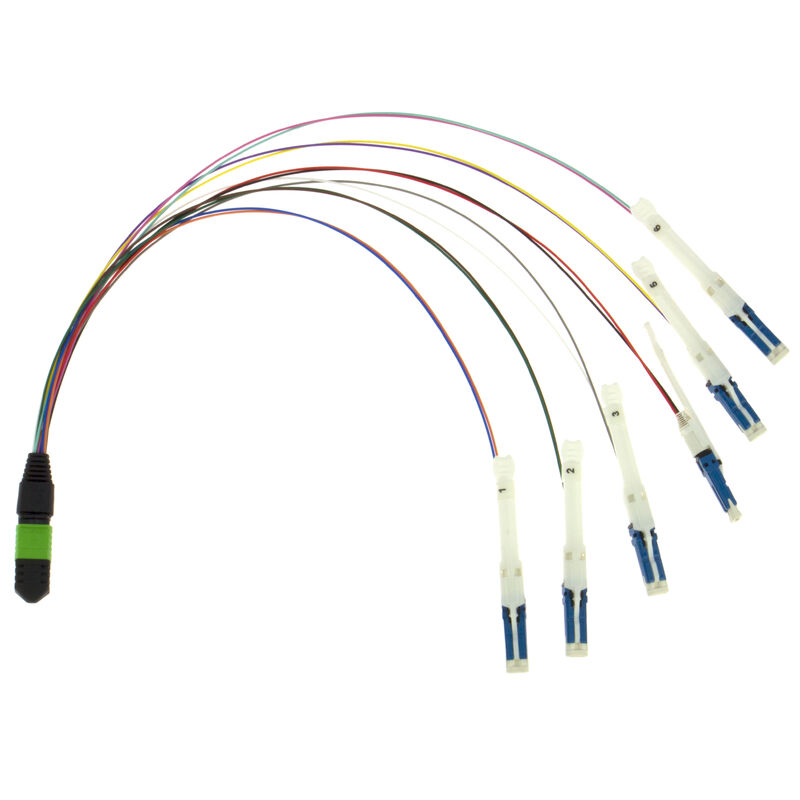

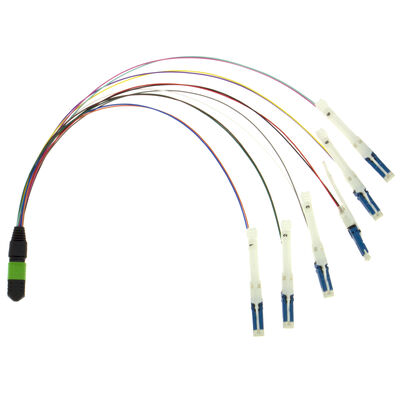

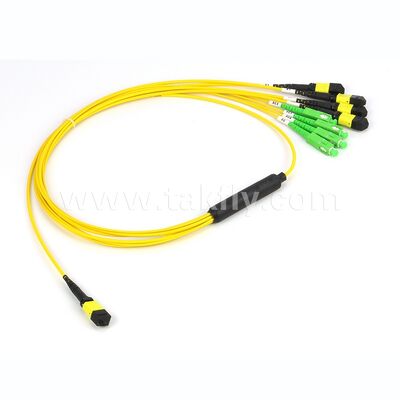

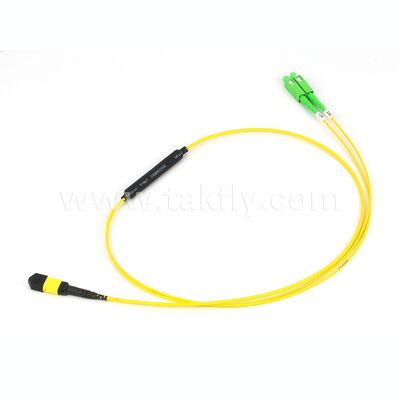

Product Images
Why Choose TAKFLY?
Professional Manufacturer
- More than 25 years manufacturing experience in Fiber optic products
- Over 450 assembly workers with 3+ years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- 30+ sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand accepted
- Exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check raw material incoming inspection before production
- Full inspection after every individual process
- Full inspection of production half done
- Full inspection of finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet available according to your request
If you're interested in our products or have any questions, feel free to contact us at any time!
