DLC/DLC, GYFJH, 2 Core. Outdoor Armored Patchcord
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | DLC/DLC, GYFJH, 2 Core. Outdoor Armored Patchcord |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product NEC Pigtailame: | SC/UPC 0.9mm 12 Color Fiber Optic Pigtail | Fiber Count: | 2 |
|---|---|---|---|
| Cable Dimension Mm: | 7.0 | Cable Weight Kg/km: | 42.3 |
| Operation Temperature: | -30℃~70℃ | Fiber Type: | 9/125 |
| Core Diameter 1310nm：: | 9.1±0.4μm | Connector Type: | DLC/UPC |
| Insertion Loss: | <=0.3db | Return Loss: | >=50db |
| Storage Temperature: | -40℃~80℃ | Outer Sheath Material: | PVC、LSZH、TPU |
| Length: | 2M Or Customized | Fiber Brand: | Corning, YOFC, OFS, Draka |
| Highlight: | DLC outdoor armored patchcord,GYFJH fiber optic patchcord,2 core armored patchcord |
||
Product Description

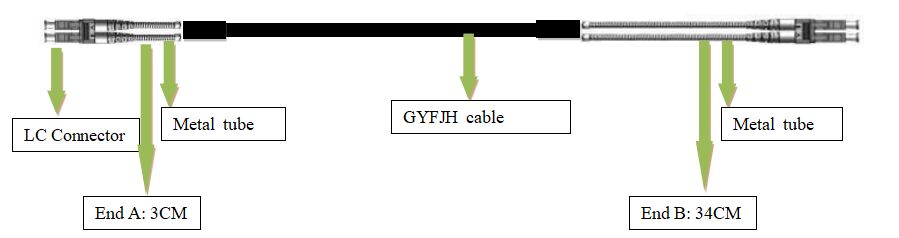

DLC/DLC, GYFJH, 2 Core Outdoor Armored Patchcord
DLC/DLC Fiber Optic Patchcord Specification
1. GYFJH Cable
Structure
Application
Mainly used in wireless base station horizontal and vertical cabling
Features
- Good mechanical and environmental characteristics
- Flame retardant characteristics meet the requirements of relevant standards
- Mechanical characteristics of jacket meet the requirements of relevant standards
- Soft, flexible, water blocked, UV resistant, easy to lay and splice, with big capacity data transmission
- Meet various requirements of market and clients
Cable Parameters
| Fiber Count | Cable Dimension mm | Cable Weight kg/km | Tensile N | Crush N/100mm | Min. Bend Radius mm | Range of Temperature |
|---|---|---|---|---|---|---|
| 2 | 7.0 | 42.3 | 200 | 400 | 1100 | 2200 |
Note: 1. All values in the table are for reference only and subject to change without notice; 2. Cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable.
2. Single Mode Fiber
| ITEM | PARAMETER |
|---|---|
| Fiber type | 9/125 |
| Core Diameter | 1310nm:9.1±0.4μm |
| Core Non-Circularity | <=6.0 % |
| Cladding Diameter | 125.0 ± 0.7um |
| Cladding Non-Circularity | <=1.0 % |
| Coating Diameter | 245 ± 7 |
| Coating-Cladding Concentricity Error | <=12.0um |
| Coating Non-Circularity | <=6.0um |
| Core-Cladding Concentricity Error | <=0.6um |
| Attenuation 1310nm | <=0.36 |
| Attenuation 1550nm | <=0.22 |
3. Connector Specification
| ITEM | PARAMETER |
|---|---|
| Connector type | DLC/UPC |
| Insertion Loss | <=0.3db |
| Return Loss | >=50db |
| Fiber mode | Single-mode, 9/125 |
| Operating wavelength | 1260~1650nm |
| Test wavelength | 1310nm, 1550nm |
| Repeatability | <=0.1 |
| Interchangeability | <=0.2dB |
| Durability | <=0.2dB |
| Fiber Length | 1m, 2m... any length optional |
| Length and tolerance | 10cm |
| Operating Temperature | -20°C ~ +60°C |
| Storage Temperature | -40°C ~ +85°C |
DLC/DLC Fiber Optic Patchcord Picture
Why Choose TAKFLY
- Professional manufacturer with more than 26 years experience in fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet available according to your request
FAQ
Q1: How can I get your catalogue and price list?
A1: Please let us know your email or contacts from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quality problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you. Furthermore we will also take action to improve the quality in future
Q6: What is your terms of packing?
A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers
Q7: What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q10: Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
If you're interested in our products or have any doubt, feel free to contact me at any time!
