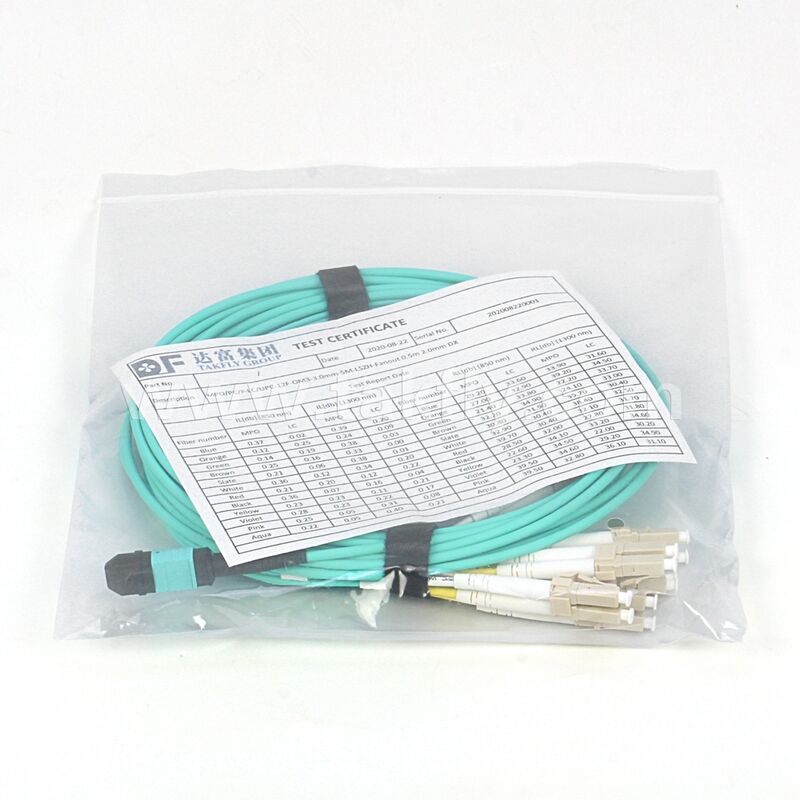

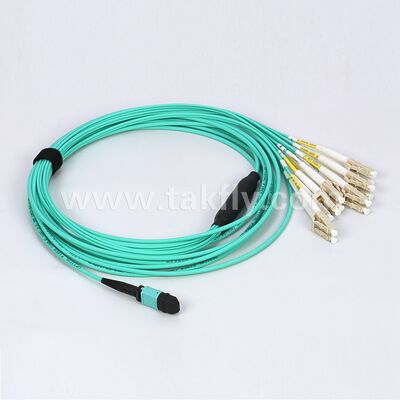

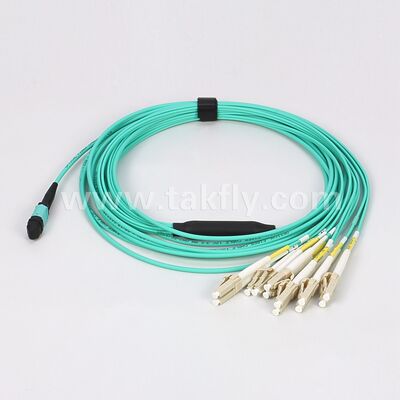

12F MPO MTP to LC OM3 Breakout Cable for High-Density Server and Switch Aggregation
Product Summary
Precise 1x4 Branching Patch Cord: 12F MPO to 4x SC/APC for FTTH Drop & Testing Applications Applications of MPO MTP Patch Cord Asynchronous Transmission Mode (ATM) Gigabit Ethernet Active Devices/Transceiver Interface CATV, Video and Multimedia Premise Installations Telecommunication Networks ...
Product Custom Attributes
Core:
Multicore
Connector A:
SC
Connector B:
MPO /MTP
Fiber Mode:
50/125um
Cable Diameter:
0.9/2.0/3.0
Polish Type:
PC/APC
Return Loss:
MM/PC:20dB/SM/APC:60dB
Insertion Loss:
0.35dB Max (0.15dB Typ.)
Outer Sheath Material:
PVC/LSZH
Bending Radius Static/Dynamic:
10d/20d
HS Code:
854470000
Gender:
Male/Female
Highlight:
12F MPO MTP Breakout Cable
,OM3 Fiber Optic Patch Cord
,LC MPO MTP Patch Cord
Basic Properties
Place of Origin:
Shenzhen, China
Brand Name:
Takfly/OEM
Certification:
CE, ISO, RoHS, GS
Model Number:
MPO/MTP Patch cord
Trading Properties
Minimum Order Quantity:
1pcs
Price:
US $9.88-US $19.88/ Pcs
Packaging Details:
PP Bag Then in Carton
Delivery Time:
3-7working day
Payment Terms:
L/C,T/T,Western Union,Paypal
Supply Ability:
50000pcs/Month
Product Description
Precise 1x4 Branching Patch Cord: 12F MPO to 4x SC/APC for FTTH Drop & Testing Applications
Applications of MPO MTP Patch Cord
- Asynchronous Transmission Mode (ATM)
- Gigabit Ethernet
- Active Devices/Transceiver Interface
- CATV, Video and Multimedia
- Premise Installations
- Telecommunication Networks
- Parallel optical interconnect between PC Cards and patch panels
- Interconnection for O/E modules
- Industrial & Military
- Optical Switch interframe connections
Features of MPO MTP Patch Cord
- Precision molded MT ferrule
- High precision guide pins for exact alignment
- Compact design, up to 4, 8, 12, 24 fibers
- IEC 61754-7 Compliant
- EIA/TIA-604-5 Compliant
Specifications of MPO MTP Patch Cord
| Item | LC, SC, ST, FC | MPO/MTP |
|---|---|---|
| End face type | PC, UPC and APC | PC and APC |
| Fiber type | SM (G652, G655, G657); MM (OM1-OM5) | |
| Core number | 12, 24 | |
| Cable Diameter | 0.9, 2.0, 3.0 | Mini Round cable: Max 4.5mm; Ribbon cable: Max 3.0*5.0mm |
| Insertion loss (dB) | ≤ 0.3 | Standard: ≤0.35/0.7 (Typical/Max) Low Loss: ≤0.2/0.35 (Typical/Max) |
| Return loss (Min) | UPC SM: 40dB APC SM: 60 dB PC MM: 25 dB | SM: APC: 60dB | MM: PC: 20dB |
| Test Wavelength (nm) | SM: 1310/1550 MM: 850/1300 | |
| Repeatability | ≤ 0.1dB | |
| Durability | ≤ 0.2dB | |
| Interchangeability | ≤ 0.2dB | |
| Operating Temperature | -20℃~70℃ | |
| Storage Temperature | -40℃~80℃ | |
| Outer Sheath Material | PVC, LSZH | |
| Bending radius (Static/Dynamic) | 10D/20D | |
| Length | Customized | |
How to Order Optical Fiber Patch Cord
- Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
- Mode type: single mode (UPC and APC) / multi mode (PC)
- Cable diameter: 0.9 / 2.0 / 3.0 mm (can customized other diameter)
- Coating material: PVC / LSZH
- Fiber count: simple / duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core and so on
- Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
- Patch cord length: according to your requirement
- MPO/MTP connector should let us know which method (A type / B type / C type), male or female, fiber count (4/8/12/16/24/32 fiber)
- Insertion/Return Loss: Standard/Low Loss
- Type: Pigtail/Patch Cord/LGX Box/Patch Panel
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are a manufacturer, FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive. More quantity, the price will be more competitive.
Q: Can you quote FOB price?
A: Yes. We can delivery by air, DHL, TNT, UPC, FEDEX, etc. For big quantity we will deliver it by sea. We can quote price with freight and lead time for you, after you let us know detailed requirements with quantity. We have competitive shipping forwarders. For more solutions, you can feel free to contact us.
Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified. All the products are 100% test before delivery.
Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2-3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.
Q: What's your warranty?
A: Depends on different product, we have 1 years warranty for patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.
Q: What's your packing?
A: International export standard package. If you need to print your logo on the packing, please let us know before we quote.
Q: Can you offer OEM/ODM?
A: Yes, we can. All products accept OEM/ODM. We can sign the Confidentiality Agreement.
Q: Can I have a sample?
A: It depends on which products, Free sample provide under 10 usd. Freight will be paid by buyer before delivery.
Q: How can I order?
A:
- Send mail or inquiries with product name, specification, and quantity to us. Provide your receive address if you need FOB, CIF, CFR price.
- We will offer our quotation with lead time.
- After the quotation confirmed, we will send a PI with our bank account.
- Production will be arranged after the payment received.
- Confirm the consignee with you before we deliver it.
- The tracking number will be provided after the delivery.
Q: What is your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.
With the same quality standard, if you could get better price from the market, TAKFLY also could support you same price.
