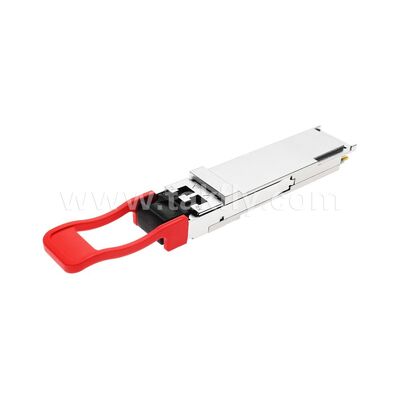

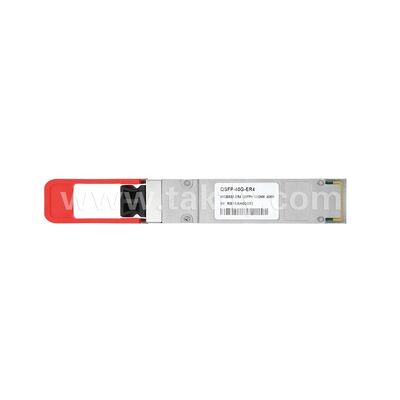

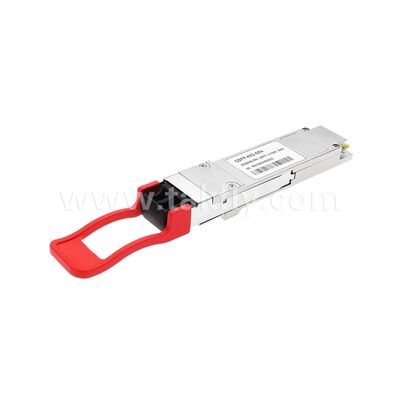

Optical Transceiver Module 40Gbps CWDM 40KM QSFP+ for Data Center FTTH FTTX

This product strictly applies to 40GBASE-ER4 of the IEEE P802.3ba standard. It is a transceiver module designed for 40km optical communication applications.

The module transforms 4 x 10Gb/s input channels to 4 CWDM optical signals, and multiplexes the channels into one channel for 40Gb/s optical transmission. On the receiver side, the process is reversed - 40Gb/s optical transmission input is converted into 4 CWDM optical signals, which are then transformed into 4 channel output electrical data.

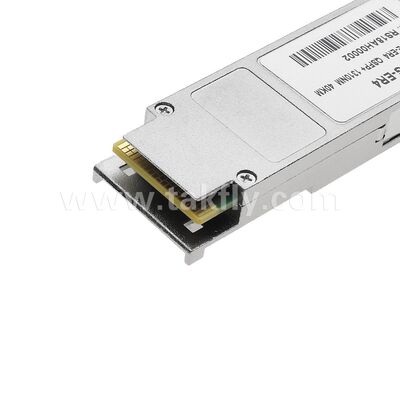

According to the wavelength grid defined in ITU-T G694.2, the central wavelengths of the CWDM channels are 1271, 1291, 1311 and 1331nm. The module features a duplex LC connector for the optical interface and a 148-pin connector for the electrical interface. Single-mode fiber (SMF) is required to minimize optical dispersion in long-haul systems.

This product meets QSFP Multi-Source Agreement (MSA) standards and is designed to withstand harsh external operating conditions including extreme temperatures, humidity, and EMI interference.

• Transmission data rate up to 11.2Gbps per channel
• QSFP+ MSA compliant
• Compliant to IEEE 802.3ba specification for 40GBASE-ER4 links
• 4 CWDM un-cooled DFB lasers, using ITU G.694.2 wavelength grid at 1271, 1291, 1311 and 1331nm
• High Sensitivity APD-TIA with optical DEMUX
• Up to 40km reach over standard single mode fiber
• Hot pluggable electrical interface
• Operating case temperature 0°C to +70°C
• 3V power supply
• RoHS 6 compliant (lead free)

• Widely used in data center 40GBASE-ER4 Ethernet links
• Transmission distances of up to 40km via standard single mode fiber
• Supports OTU3, OTU3e1, OTU3e2 multiplexing and demultiplexing tests
