MPO MTP MT to FA Fiber Optic Patchcord / Optical Fiber Patch Cable / Optical Jumper/ Optical Fiber Trunk Cable for 10G 40G 100G 200G 400G Data Center
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | OEM |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | MPO MTP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD10.00-100.00/Piece |
| Packaging Details: | with Carton Box |
| Payment Terms: | T/T, Western Union, Paypal |
|
Detail Information |
|||
| Fiber Connector: | MPO,MTP, MT,SC,LC,FC,ST, Etc. | Fiber Cores: | Singlex, Duplex, 4, 8, 12, 24 Fibers |
|---|---|---|---|
| Fiber Mode: | SM(G655,G652,G657), MM(OM1,OM2,OM3,OM4,OM5) | Polishing Type: | PC, UPC, APC |
| Gender: | Male, Female | Jacket Material: | PVC, LSZH, OFNR, OFNP, Etc. |
| Cable Diameter: | 250um, 0.9mm, 2.0mm, 3.0mm Or Customized | Cable Length: | 0.5M, 1M, 3M, 5M Or Customized |
| Highlight: | MPO MTP fiber optic patchcord,10G 40G fiber optic cable,data center optical jumper |
||
Product Description

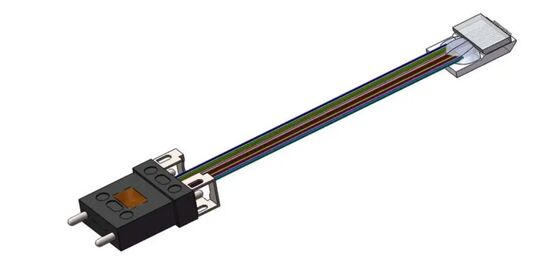

MPO MTP MT to FA Fiber Optic Patchcord
Professional-grade fiber optic patch cable designed for high-density connectivity applications,
supporting 10G, 40G, 100G, 200G, and 400G data center requirements. Available in various
configurations including optical fiber patch cable, optical jumper, and optical fiber trunk cable.
Technical Specifications
| Parameter | Standard SM | Low Loss (Elite) SM | Standard MM | Low Loss MM |
|---|---|---|---|---|
| Insertion Loss (Typical) | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
| Insertion Loss (Maximum) | 0.75dB | 0.35dB | 0.60dB | 0.35dB |
| Return Loss | ≥60 for APC (8° Angle Polish) ≥20 for PC |
≥50 for PC | -- | -- |
| Male/Female | Male: With Pins, Female: Without Pins | |||
| Tensile Strength | ≤0.3 (Max 66N) | |||
| Vibration | ≤0.3 (10 ~ 55Hz) | |||
| Thermal Cycle | ≤0.3 (-40 ~ 75℃, 21 Cycles) | |||
Product Images
High Density MPO MTP Fiber Optic Patchcord
MPO MTP Fiber Optic Cable Close-up
MPO MTP Connector Detail
Fiber Optic Patchcord Specifications
MPO MTP Cable Assembly
Fiber Optic Connectivity Diagram
Our Services
- Order Inquiry: Always online to guarantee prompt reply to clients
- Order Production: Close coordination with production department to ensure accurate delivery times
- Pre-Shipment Quality Control: Double-check order quantity, packaging, and carton strength to prevent damage
- Post-Shipment Tracking: Continuous monitoring of shipping status with regular client updates
- Shipping Options: DHL, UPS, FEDEX, TNT, EMS, SEA, AIR, and more
Have questions? Send an inquiry today! Welcome & Just Do It!
