High Density 12 24 MPO MTP MT to MINI MT Fiber Optic Patchcord / Optical Fiber Patch Cable / Optical Jumper/ Optical Fiber Trunk Cable for 10G 40G 100G 200G 400G Data Center, QSFP Module
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | OEM |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | MPO MTP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD10.00-100.00/Piece |
| Packaging Details: | with Carton Box |
| Payment Terms: | T/T, Western Union, Paypal |
|
Detail Information |
|||
| Fiber Connector: | MPO,MTP, MT,SC,LC,FC,ST, Etc. | Fiber Cores: | Singlex, Duplex, 4, 8, 12, 24 Fibers |
|---|---|---|---|
| Fiber Mode: | SM(G655,G652,G657), MM(OM1,OM2,OM3,OM4,OM5) | Polishing Type: | PC, UPC, APC |
| Gender: | Male, Female | Jacket Material: | PVC, LSZH, OFNR, OFNP, Etc. |
| Cable Diameter: | 250um, 0.9mm, 2.0mm, 3.0mm Or Customized | Cable Length: | 0.5M, 1M, 3M, 5M Or Customized |
| Highlight: | High Density MPO MTP fiber patch cable,12 24 MPO MTP to MINI MT jumper,MPO MTP fiber trunk cable for data center |
||
Product Description
High Density 12/24 MPO MTP MT to MINI MT Fiber Optic Patchcord
Professional-grade fiber optic patch cable designed for high-density connectivity applications in data centers. Available in various configurations including optical fiber patch cable, optical jumper, and optical fiber trunk cable. Compatible with 10G, 40G, 100G, 200G, and 400G networks and QSFP modules.
Technical Specifications
| Parameter | Standard SM | Low Loss (Elite) SM | Standard MM | Low Loss MM |
|---|---|---|---|---|
| Insertion Loss (Typical) | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
| Insertion Loss (Maximum) | 0.75dB | 0.35dB | 0.60dB | 0.35dB |
| Return Loss | ≥60 for APC (8° Angle Polish) ≥20 for PC |
≥50 for PC | -- | -- |
| Male/Female | Male: With Pins, Female: Without Pins | |||
| Tensile Strength | ≤0.3 (Max 66N) | |||
| Vibration | ≤0.3 (10 ~ 55Hz) | |||
| Thermal Cycle | ≤0.3 (-40 ~ 75℃, 21 Cycles) | |||
Product Images

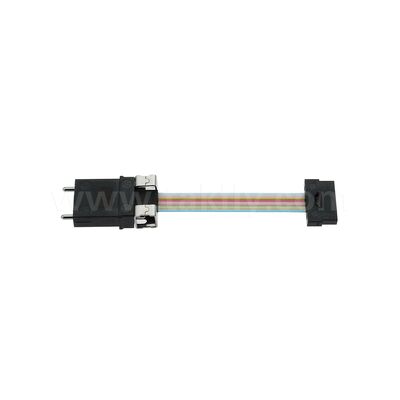

High Density MPO MTP Fiber Optic Patchcord
MPO MTP Fiber Optic Cable Close-up
MPO MTP Connector Detail
Fiber Optic Patchcord Specifications
MPO MTP Cable Assembly
Fiber Optic Connectivity Diagram
