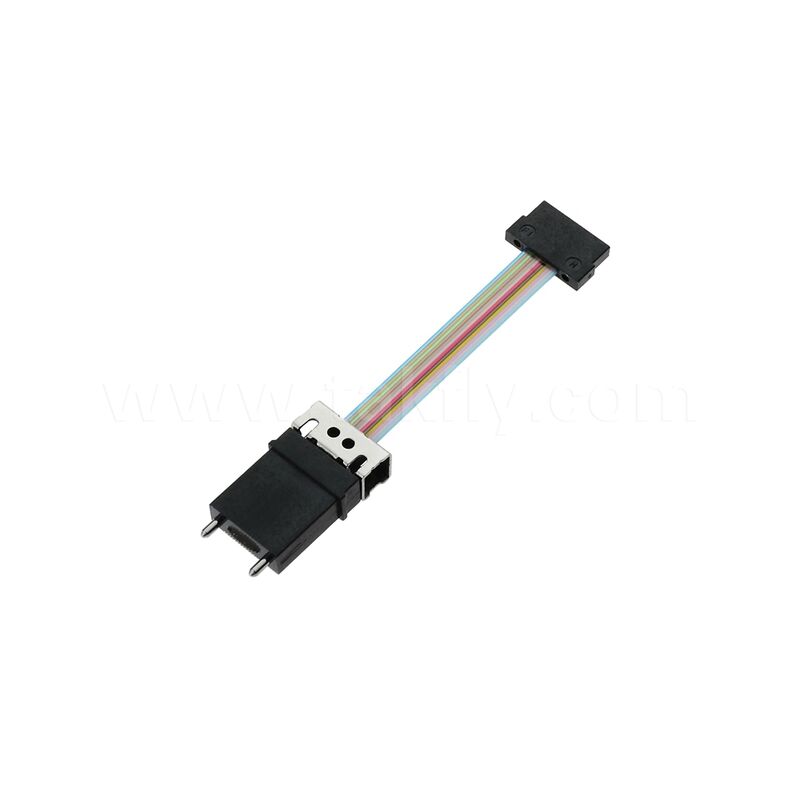

2/4/8/12/16/24 fibers Singlemode Multimode MPO MTP MT to MINI MT Fiber Optic Patchcord / Optical Fiber Patch Cable / Optical Jumper/ Optical Fiber Trunk Cable
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | OEM |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | MPO MTP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD10.00-100.00/Piece |
| Packaging Details: | with Carton Box |
| Payment Terms: | T/T, Western Union, Paypal |
|
Detail Information |
|||
| Fiber Connector: | MPO,MTP, MT,SC,LC,FC,ST, Etc. | Fiber Cores: | Singlex, Duplex, 4, 8, 12, 24 Fibers |
|---|---|---|---|
| Fiber Mode: | SM(G655,G652,G657), MM(OM1,OM2,OM3,OM4,OM5) | Polishing Type: | PC, UPC, APC |
| Gender: | Male, Female | Jacket Material: | PVC, LSZH, OFNR, OFNP, Etc. |
| Cable Diameter: | 250um, 0.9mm, 2.0mm, 3.0mm Or Customized | Cable Length: | 0.5M, 1M, 3M, 5M Or Customized |
| Highlight: | MPO MTP fiber optic patchcord,multimode MPO fiber jumper,MT to MINI MT trunk cable |
||
Product Description
2/4/8/12/16/24 fibers Singlemode Multimode MPO MTP MT to MINI MT Fiber Optic Patchcord
High-performance fiber optic patch cords available in various fiber counts (2/4/8/12/16/24 fibers) for both singlemode and multimode applications. These MPO/MTP to MINI MT connectors provide reliable optical connectivity solutions.
Technical Specifications
| Parameter | Standard SM | Low Loss (Elite) SM | Standard MM | Low Loss MM |
|---|---|---|---|---|
| Insertion Loss (Typical) | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
| Insertion Loss (Maximum) | 0.75dB | 0.35dB | 0.60dB | 0.35dB |
| Return Loss | ≥60 for APC (8° Angle Polish) ≥20 for PC |
≥50 for PC | -- | -- |
| Male/Female | Male: With Pins, Female: Without Pins | |||
| Tensile Strength | ≤0.3 (Max 66N) | |||
| Vibration | ≤0.3 (10 ~ 55Hz) | |||
| Thermal Cycle | ≤0.3 (-40 ~ 75℃, 21 Cycles) | |||
Our Services
- Order Inquiry: Always online to guarantee prompt reply to clients
- Order Production: Close coordination with production department to ensure on-time delivery
- Before Shipment: Double-check order quantity, packaging, and carton strength to prevent damage
- After Shipment: Continuous tracking and status reporting to clients
- Shipping Options: DHL, UPS, FEDEX, TNT, EMS, SEA, AIR, and more
If you have any questions, why not send an inquiry? Welcome & Just Do It!
