MPO/MTP Fan-out Patch Cord
Product Details:
| Place of Origin: | China |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | US$0.01~2.79/PC |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 3-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 10000PCS/Day |
|
Detail Information |
|||
| Highlight: | MPO MTP fiber optic patch cord,fan-out fiber optic cable,MTP patch cord with warranty |
||
|---|---|---|---|
Product Description

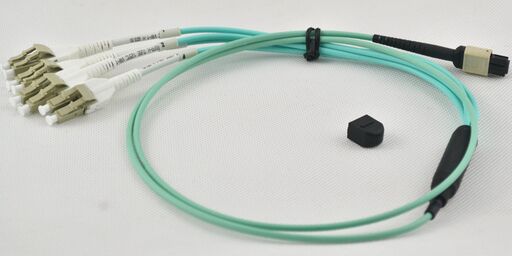

MPO/MTP Fan-out Patch Cord
Product Overview
SC-LC 12F Patch cord
Key Features
- Module optical fiber connections to the torsion of the sequence
- Can provide data center and SAN System, simple and flexible
- MPO trunk connector fixed on the back of module
- The standard 19" can be installed on any cabinet
- Convenient to be installed, moved and added
Main Applications
- Datacenter rack mount patch panel
- Connection between trunk cables to patch cords
Pre-terminated System Installation
To ensure the entire connection is in a unified condition, first install the patch panel, cassette module, and related mounting hardware. Then, lay the cables in the designed cable passage position, remove all protection caps and wraps, connect MPO to all related MPO sockets, and mount and secure the cables with cable ties.
Installation Steps
- Install accessories and hardware
- Cable laying
- Plug device
- Cable mounting
Technical Specifications
| Type | MPO | LC |
|---|---|---|
| IL Multi Mode | Single Max: 0.35db(L) | MAX: 0.10dB(L) |
| Single Max: 0.60db (G) | MAX: 0.15db (G) | |
| IL Single Mode | Single Max: 0.35db(L) Single Max: 0.75db (G) |
MAX: 0.30db |
| RL | >20DB | >30db |
| >60DB (8 degree Angle Polish) | >50 db(UPC) >60DB(APC) |
|
| Environmental | <0.2DB, 200 times insertion | <0.2db, 500 times insertion |
| Working Temp | -20°C to +60°C | |
| Storage Temp | -40°C to +70°C | |
| Install Temp | -5°C to +50°C | |
How to Order Fiber Optic Patchcord
- Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
- Mode type: single mode (UPC and APC) / multi mode (PC)
- Cable diameter: 0.9 / 2.0 / 3.0 mm (can customize other diameters)
- Coating material: PVC / LSZH
- Fiber count: simplex / duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core and more
- Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
- Patch cord length: according to your requirement
Why Choose TAKFLY?
Core Advantages
- Founded in 2000, Located in Shenzhen (south of China neighbor Hongkong)
- FTTH, DATA Center Solution, One-stop fiber optic components supply
- ISO 9001/14001/RoHS/CE/FCC certified quality
- Factory-direct pricing & strict quality control
- Customized production & on-time delivery
- 25 years' expertise + 30 engineers' R&D support
- Accept trial/small orders
- Main customer: Vodafone, Orange, Telefornica, Movistar, Ericsson, etc.
- Worldwide exhibitions: OFC, CommunicAsia, ECOC, Netcom, Cable Tech, Network X, SVIAZ ICT, AFRICACOM, CAIRO ICT, etc.
Premium Services
- 3-7 days for samples; 2-3 weeks for bulk (urgent orders supported)
- 100% pre-shipment testing
- Prompt response & full after-sales support
Product Images
Frequently Asked Questions
1. Are you a manufacturer?
Yes, we are a manufacturer, FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
2. What's your MOQ?
MOQ can be 1 pcs, but the price is not competitive. More quantity, the price will be more competitive.
3. Can you quote FOB price?
Yes. We can deliver by air, DHL, TNT, UPC, FEDEX, etc. For big quantity we will deliver it by sea. We can quote price with freight and lead time for you, after you let us know detailed requirements with quantity. We have competitive shipping forwarders. For more solutions, you can feel free to contact us.
4. How is your quality?
Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified. All the products are 100% test before delivery.
5. What's your lead time?
It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2-3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.
6. What's your warranty?
Depends on different product, we have 1 year warranty for patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.
7. What's your packing?
International export standard package. If you need to print your logo on the packing, please let us know before we quote.
8. Can you offer OEM/ODM?
Yes, we can. All products accept OEM/ODM. We can sign the Confidentiality Agreement.
9. Can I have a sample?
It depends on which products, Free sample provide under 10 usd. Freight will be paid by buyer before delivery.
10. What your payment term?
T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.
