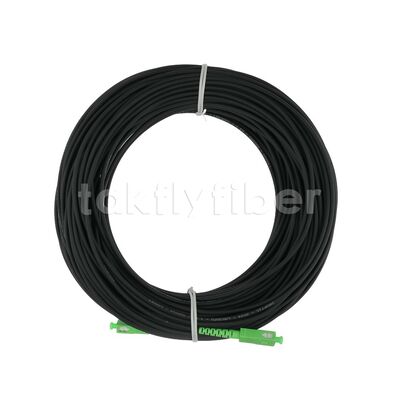

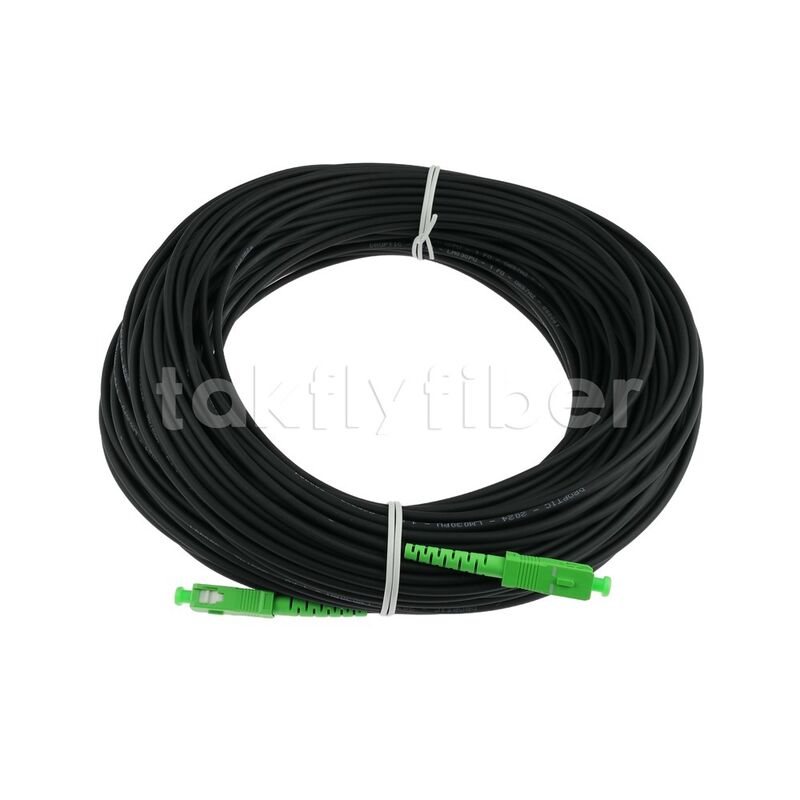

FTTH Outdoor High Strength 3.0 Kevlar Black TPU Single Mode Fiber Optic Patch Cable SCAPC to SCAPC SM G657B3
Product Details:
| Place of Origin: | China |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TK-PC-3.0-TPU-SA-SA-20M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | US$0.01~4.99/PC |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | 10000PCS/Day |
|
Detail Information |
|||
| Product Name: | Black TPU Single Mode Fiber Optic Patch Cable SCAPC To SCAPC SM G657B3 | Intertion Loss: | ≤0.3dB |
|---|---|---|---|
| Return Loss: | APC SM ≥ 60dB | Fiber Type: | OS2, G652D , G657A1 , G657A2 , G657B3 |
| Diameter: | 3.0mm | Connector Type: | APC |
| Jacket Material: | TPU | Color: | Black |
| Wavelength: | 1310nm,1550nm | Length: | 20M Or Customized |
| Operation Temperature: | -20℃~70℃ | Fiber Diameter: | 9/125 |
| Grade: | Telecom Grade | Certificate: | CE/ROHS/REACH |
| Production Capcity: | 10000PCS/Day | ||
| Highlight: | FTTH outdoor fiber optic cable,Kevlar reinforced SCAPC patch cord,single mode G657B3 fiber cable |
||
Product Description
FTTH Outdoor High Strength 3.0 Kevlar Black TPU Single Mode Fiber Optic Patch Cable SC/APC to SC/APC SM G657B3
This ultra bending insensitive single-mode optical fiber BendCom® G.657.B3 features outstanding bending performance, especially at 5 mm bending radius. The optimized refractive index profile distribution ensures full compatibility with G.657.A2 fiber, making it the ideal solution for fiber-to-the-home (FTTH) applications.
How to Order Optical Fiber Patch Cord
- Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
- Mode type: single mode (UPC and APC) / multi mode (PC)
- Cable diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
- Coating material: PVC / LSZH
- Fiber count: simplex / duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core and more
- Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
- Patch cord length: customized to your requirements
- For MPO/MTP connectors: specify method (A type / B type / C type), male/female, and fiber count (4/8/12/16/24/32 fiber)
3.0mm TPU Fiber Optic Patch Cord Specifications
| Parameter | Specification |
|---|---|
| End face type | SC/APC-SC/APC |
| Fiber type | SM G657A2 colored with red color |
| Cable Diameter | 3.0±0.2mm |
| Insertion loss | ≤0.25dB for ≥97% of connections |
| Return loss | APC≥60dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >70N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | Black |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | 3M, 7M, 50M, 100M, or customized |
Fiber Parameters
| No. | Item | Unit | Specification (G657B3) |
|---|---|---|---|
| 1 | Mode Field Diameter @1310nm | μm | 8.2~9.0 |
| Mode Field Diameter @1550nm | μm | 9.1~10.1 | |
| 2 | Cladding Diameter | μm | 125±0.7 |
| 3 | Cladding Non-Circularity | ％ | ≤0.7 |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 |
| 5 | Coating Diameter | μm | 245±5 |
| 6 | Coating Non-Circularity | ％ | ≤6.0 |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12 |
| 8 | Cable Cutoff Wavelength | nm | λcc ≤1260 |
| 9 | Attenuation @1310nm | dB/KM | ≤0.36 |
| Attenuation @1550nm | dB/KM | ≤0.25 | |
| 10 | Macro-Bending Loss @1550nm | dB | ≤0.08 |
| Macro-Bending Loss @1265nm | dB | ≤0.25 |
Cable Dimensions and Construction
| Component | Description |
|---|---|
| Optical Fiber | Fiber count: 1, Color: Red |
| Tight Buffer Fiber | Material: LSZH, Diameter: 0.85±0.05 mm, Color: Red, One-time stripping length: 5-8 mm |
| Strength Member | Material: Aramid yarn |
| Outer Jacket | Material: TPU, Diameter: 3.0±0.2 mm, Color: Black |
Application Scenarios
- FTTH (Fiber to the Home)
- Home applications such as invisible fiber optic cable
- Occasions with special requirements for bending radius
Features
- Simple structure, light weight and high tensile strength
- Special groove design for easy stripping and splicing, simplified installation and maintenance
- Two parallel steel wires ensure tensile strength
- Crush resistance and flexibility
- Low smoke zero halogen and flame retardant sheath, environmentally friendly and secure
Why Choose TAKFLY - Our Advantages
- Professional Manufacturer: Over 25 years experience in fiber optic products with one-stop purchasing
- Expert Team: 450+ assembly workers, 26+ R&D Engineers
- Advanced Equipment: 16 German injection machines, 10+ cable production lines
- Comprehensive Testing: 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- OEM Services: Custom branding available
- Global Presence: Worldwide exhibitions including OFC, ECOC, CommunicAsia
- 24/7 Support: Comprehensive after-sales services
Quality Control
- Raw material inspection before production
- Full inspection after each process
- Comprehensive finished product inspection
- Pre-shipping quality verification
Delivery & Shipping
- Samples: 1-3 working days
- Mass Production: 3-7 working days
- Packaging: Plastic bag, carton, and pallet options
- Shipping Methods: DHL, UPS, FEDEX, TNT, EMS (3-5 days), Sea or Air freight
Payment Terms
T/T, Paypal, Western Union, and L/C available. Competitive pricing for large quantities.
With over 10 years of experience in this field, I can provide excellent service and professional answers!
If you're interested in our products or have any questions, please send me an inquiry today!
