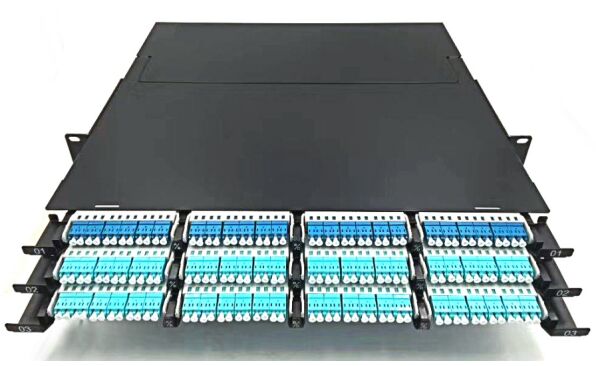

High Density MPO Patch Panel Specification
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | High Density MPO Patch Panel Specification |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | High Density MPO Patch Panel Specification | Product Size: | 482.6mm*464.9mm*44.2mm(1U) |
|---|---|---|---|
| Material: | SPCC, 1.2mm Black (RAL9005) | Weight: | 6.8kg |
| Compliant To: | RoHS, Reach/SVHC | ||
| Highlight: | High Density MPO patch panel,MPO MTP fiber patch panel,MPO patch panel with warranty |
||
Product Description
High Density MPO Patch Panel Specification
To optimize data center cabinet space utilization, we offer high-density cabling solutions including 1U, 2U, and 4U fiber distribution boxes, complemented by 12-core MPO-LC module boxes, 8-core MPO-LC module boxes, and 4×MPO adapter panels.
Standards Compliance
- TIA/EIA-568
- RoHS
- ISO9001
Key Features
- Compatible with HDA and EDA cabling systems for 10G/40G/100G applications
- Rack-mounted design for cable protection, management, and organization
- High-density capacity: 1U supports 144 cores, 2U supports 288 cores, 4U supports 576 cores
- Modular internal installation eliminates welding requirements
- Smooth sliding rail extension mechanism
- Three-layer tray design accommodating up to 12 module boxes or MPO adapter panels
Technical Specifications
| Size | 482.6mm × 464.9mm × 44.2mm (1U) |
|---|---|
| Material | SPCC, 1.2mm Black (RAL9005) |
| Weight | 6.8 KG |
Product Images
Why Choose TAKFLY
- 25+ years of fiber optic manufacturing experience
- 450+ assembly workers with 3+ years of experience
- 10+ R&D Engineers
- 16 German injection machines and production lines
- 30+ testing instruments including OTDR, 3D, VFL, IL&RL testers
- OEM branding available
- Regular participation in international exhibitions
Quality Control Process
- Raw material inspection before production
- Full inspection after each manufacturing process
- Comprehensive half-stage production checks
- Finished product inspection before packaging
- Pre-shipment quality verification
Delivery Information
- Samples: 1-3 working days
- Mass production: 3-7 working days
- Packaging options: Plastic bags, cartons, and pallets available
Frequently Asked Questions
How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list.
Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods.
How much will the shipping charges be?
Shipping charges depend on shipment size and shipping method. We will provide charges upon request.
Can I visit you?
Sure, our factory is in Shenzhen, China. Please contact us to schedule an appointment.
What if there is a quality problem when we receive the goods?
If quality issues arise upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, and we'll implement improvements for future production.
What are your packing terms?
Generally, we pack goods in blister boxes and cartons, but we can also accommodate custom packaging requests.
What are your payment terms?
T/T 30% deposit, 70% balance before delivery. We provide photos of products and packaging before final payment.
What are your delivery terms?
EXW, FOB, CFR, CIF, DDU
How about your delivery time?
Generally, 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Can you produce according to samples?
Yes, we can produce based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
