1U 144Cores High Density MPO Cassette Patch Panel
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | 1U 144Cores High Density MPO Cassette Patch Panel |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | 1U 144Cores High Density MPO Cassette Patch Panel | U Size: | 1U (44.2mm) |
|---|---|---|---|
| Number Of Ports: | 12（Max 144core） | Width: | 482.6mm |
| Depth: | 464.9mm | Net Weight: | 6.8kg |
| Packaged Weight: | 8.7kg | Packaged Size: | 57*56*20cm |
| Material: | 1.2mm Cold-rolled Steel | Material Coating: | Powder Coating |
| Color: | Black | Designed In Accordance With: | TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754,EN297-1 |
| Compliant To: | RoHS, Reach/SVHC | ||
| Highlight: | 1U MPO cassette patch panel,144-core high density MPO panel,MPO MTP fiber optic cassette |
||
Product Description
1U 144Cores High Density MPO Cassette Patch Panel
Product Overview
Takfly series rackmounted patch panel is designed to manage and house easy-plug MTP/MPO to LC fiber cassette modules, for connecting plug-and-play pre-terminated high density MTP/MPO fiber cabling system. This solution contributes to greater network availability and is especially suitable for SAN, LAN and Data Center applications. Each easy-plug MTP/MPO to LC cassette is accommodated with a 12 fiber MTP/MPO based fiber assemblies, and pre-loaded with LC adapters in different fiber modes for your choices.
Applications
- Data center
- Telecommunication networks
Features
- Up to 12 MTP/MPO modules in 1U
- Multiple adaptor options available
- Accepts loose tube, distribution and pre-terminated cables
- ROHS, REACH SvHC and UL rated
- Fits standard 19", sliding-type design, convenient for management
Specifications
| U Size | 1U (44.2mm) |
|---|---|
| Number of Ports | 12 (Max 144 core) |
| Width | 482.6mm |
| Depth | 464.9mm |
| Net Weight | 6.8kg |
| Packaged Weight | 8.7kg |
| Packaged Size | 57×56×20cm |
| Material | 1.2mm Cold-rolled steel |
| Material Coating | Powder coating |
| Color | Black |
| Designed in Accordance With | TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754, EN297-1 |
| Compliant to | RoHS, Reach/SVHC |

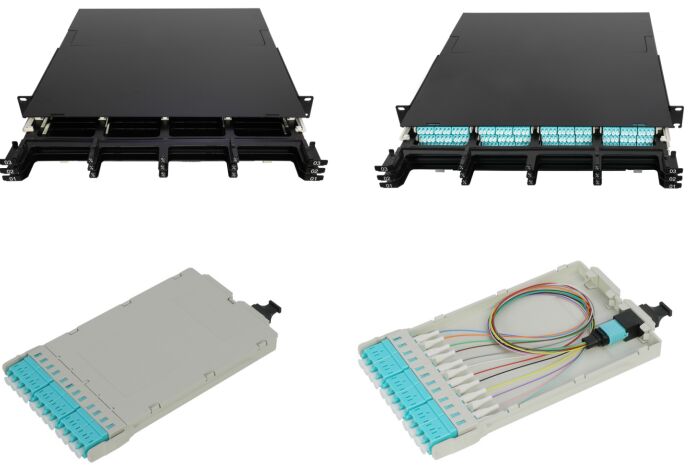

Product Image
Why Choose TAKFLY
- More than 25 years manufacturing experience in fiber optic products
- More than 450 assembly workers with 3+ years experience
- More than 10 R&D Engineers
- 16 sets of Germany imported injection machines and 16 production lines
- More than 30 sets of testing machines: OTDR, 3D, VFL, IL&RL test instruments; tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
- OEM branding accepted
- Regular exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check raw material incoming inspection before production
- Full inspection after every individual process completion
- Full inspection of production half-done stages
- Full inspection of finished products before packing
- Spot check before shipping
Delivery Information
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging: Plastic bag, carton and pallet options available according to your requirements
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is a quality problem when we receive the goods?
A5: If quality issues arise upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, and we'll implement improvements for future production.
Q6: What are your packing terms?
A6: Generally, we pack goods in blister boxes and cartons, but we can also accommodate custom packaging requests.
Q7: What are your payment terms?
A7: T/T 30% deposit, 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What are your delivery terms?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to samples?
A10: Yes, we can produce based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
