1U 2U 4U High Density MPO Cassette Patch Panel
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | 1U 2U 4U High Density MPO Cassette Patch Panel |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | 1U 2U 4U High Density MPO Cassette Patch Panel | U Size: | 1U (44.2mm)、2U(87.3mm)、4U(174.6mm) |
|---|---|---|---|
| Width: | 482.6mm | Depth: | 464.9mm |
| Packaged Size: | 57*56*20cm、57*56*23cm | Material: | 1.2mm Cold-rolled Steel |
| Material Coating: | Powder Coating | Color: | Black |
| Designed In Accordance With: | TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754,EN297-1 | Compliant To: | RoHS, Reach/SVHC |
| Highlight: | 1U MPO cassette patch panel,2U high density MPO cassette,4U MTP fiber optic panel |
||
Product Description

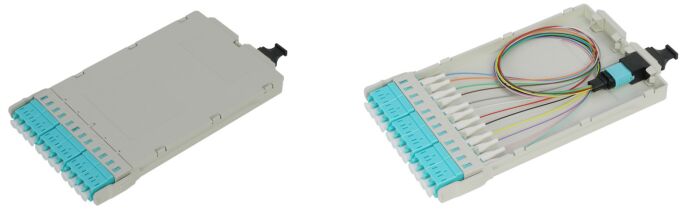

Takfly series rack-mounted patch panel is designed to manage and house easy-plug MTP/MPO to LC fiber cassette modules, facilitating connections for plug-and-play pre-terminated high density MTP/MPO fiber cabling systems. This solution enhances network availability and is particularly suitable for SAN, LAN, and Data Center applications. Each easy-plug MTP/MPO to LC cassette accommodates a 12-fiber MTP/MPO based fiber assembly and is pre-loaded with LC adapters in various fiber modes to suit your requirements.
- Data center
- Telecommunication networks
- Up to 12 Small/MTP modules in 1U
- Multiple adapter options available
- Accepts loose tube, distribution and pre-terminated cables
- ROHS, REACH SvHC and UL rated
- Fits standard 19", sliding-type design for convenient management
| U Size | 1U (44.2mm) | 2U (87.3mm) | 4U (174.6mm) |
|---|---|---|---|
| Number of Ports | 12 (Max 144 core) | 24 (Max 288 core) | 48 (Max 576 core) |
| Width | 482.6mm | ||
| Depth | 464.9mm | ||
| Net Weight | 6.8kg | 12.0kg | 18.5kg |
| Packaged Weight | 8.7kg | 14.3kg | 21.5kg |
| Packaged Size | 57×56×20cm | 57×56×23cm | / |
| Material | 1.2mm Cold-rolled steel | ||
| Material Coating | Powder coating | ||
| Color | Black | ||
| Designed in Accordance With | TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754, EN297-1 | ||
| Compliant to | RoHS, Reach/SVHC | ||
- More than 25 years manufacturing experience in fiber optic products
- More than 450 assembly workers with 3+ years experience
- More than 10 R&D Engineers
- 16 sets of Germany imported injection machines and 16 production lines
- More than 30 sets of testing machines: OTDR, 3D, VFL, IL&RL test instruments; tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
- OEM branding accepted
- Regular exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
- Spot check raw material incoming inspection before production
- Full inspection after every individual process completion
- Full inspection of production half-done stages
- Full inspection of finished products before packing
- Spot check before shipping
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging: Plastic bag, carton and pallet options available according to your requirements
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
A3: Shipping charges depend on shipment size and shipping method. We will provide charges upon request.
A4: Sure, our factory is in Shenzhen, China. Please contact us to schedule an appointment.
A5: If quality issues arise upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, and we'll implement improvements for future production.
A6: Generally, we pack goods in blister boxes and cartons, but we can also accommodate custom packaging requests.
A7: T/T 30% deposit, 70% balance before delivery. We provide photos of products and packaging before final payment.
A8: EXW, FOB, CFR, CIF, DDU
A9: Generally, 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
A10: Yes, we can produce based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
