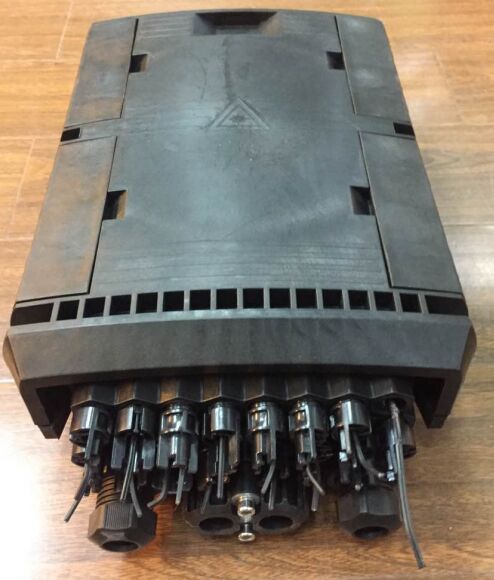

FTKS-1708-24C-16F Termination Box
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TK-PC-48F-SC-OS2-50M |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | FTKS-1708-24C-16F Termination Box | Working Temperature: | 40℃~+85℃ |
|---|---|---|---|
| Relative Humidity:: | S85%(+30℃) | Atmospheric Pressure: | 70KPa~106Kpa |
| Insertion Loss: | S0.2dB | UPC Return Loss: | 250dB |
| APC Return Loss: | 260dB | Life Of Insertion And Extraction Fiber Count: | >1000 Times |
| Fiber Brand: | Corning, YOFC, OFS, Draka | ||
| Highlight: | fiber optic termination box FTKS-1708,FTKS termination box 24C-16F,fiber optic box with warranty |
||
Product Description
FTKS-1708-24C-16F Termination Box
Product Overview
The FTKS-1708-24C-16F Termination Box serves as a termination point for feeder cables to connect with drop cables in FTTx communication network systems. This enclosure facilitates fiber splicing, splitting, and distribution while providing robust protection and management for FTTx network infrastructure.
Product Features
- Total enclosed structure for maximum protection
- Constructed from PC material with wet-proof, water-proof, dust-proof, and anti-aging properties
- IP68 protection rating for superior environmental resistance
- Integrated clamping for feeder and drop cables with comprehensive fiber management
- Separate routing paths for cables, pigtails, and patch cords to prevent interference
- Cassette-type SC/LC/PLC adaptor installation for easy maintenance
- Flip-up distribution panel with expression port for simplified cable placement
- Wall-mounted or pole-mounted installation options
- Suitable for both indoor and outdoor applications
Product Specifications
Environmental Requirements
- Working temperature: -40℃ to +85℃
- Relative humidity: ≤85% (+30℃)
- Atmospheric pressure: 70KPa to 106Kpa
Technical Specifications
- Insertion loss: ≤0.2dB
- UPC return loss: ≥50dB
- APC return loss: ≥60dB
- Insertion and extraction life: >1000 cycles
Lightning Protection
- Grounding device isolated from cabinet
- Isolation resistance: >2MΩ/500V (DC)
- Withstand voltage between grounding device and cabinet: ≥3000V (DC)/min, no puncture or flashover
Configuration
Product Images
Mechanical and Environmental Characteristics
| Items | Descriptions |
|---|---|
| Tensile Strength | Short-term: 200N Long-term: 100N |
| Crush Resistance | Short-term: 400N/100mm Long-term: 200N/100mm |
| Bending Radius | Dynamic: ≥20D Static: ≥10D |
| Temperature Range | -20℃ to +70℃ |
Outlet Technical Data
| Description | Value |
|---|---|
| Dimensions (H x W x D) | 83 x 100 x 30 mm |
| Adaptor type | SC simplex, shuttered |
| Fiber capacity | 4 fiber |
| Connector IL | 0.30 dB |
| Connector RL | 60 dB (APC), 50 dB (UPC) |
Why Choose TAKFLY
- 25+ years of manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years of experience
- 10+ R&D Engineers dedicated to innovation
- 16 sets of Germany imported injection machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments, tension strength testers, crush resistance testers, power meter testers, and light checkers
- OEM branding available
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
- Raw material incoming inspection before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Final spot check before shipping
Delivery Information
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging options: Plastic bag, carton, and pallet available per customer request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
A4: Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
A5: If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing improvements for future production.
Q6: What is your terms of packing?
A6: We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests.
Q7: What is your terms of payment?
A7: T/T 30% deposit, with 70% balance payment before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally 5-7 working days after receiving advance payment. Specific timing depends on items and order quantity.
Q10: Can you produce according to the samples?
A10: Yes, we can manufacture according to your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
