FTKS-1708-24C-16F Termination Box
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TK-PC-48F-SC-OS2-50M |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | FTKS-1708-24C-16F Termination Box | Working Temperature: | 40℃~+85℃ |
|---|---|---|---|
| Relative Humidity:: | S85%(+30℃) | Atmospheric Pressure: | 70KPa~106Kpa |
| Insertion Loss: | S0.2dB | UPC Return Loss: | 250dB |
| APC Return Loss: | 260dB | Life Of Insertion And Extraction Fiber Count: | >1000 Times |
| Fiber Brand: | Corning, YOFC, OFS, Draka | ||
| Highlight: | fiber optic termination box with warranty,FTKS termination box 24C 16F,fiber optic box for cable termination |
||
Product Description

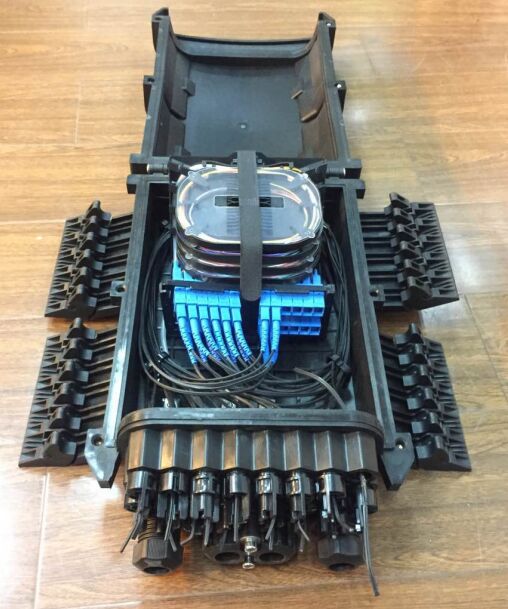

The FTKS-1708-24C-16F Termination Box serves as a termination point for feeder cables to connect with drop cables in FTTx communication network systems. This versatile enclosure facilitates fiber splicing, splitting, and distribution while providing robust protection and management for FTTx network infrastructure.
- Total enclosed structure for maximum protection
- Constructed from PC material with wet-proof, water-proof, dust-proof, and anti-aging properties
- IP68 protection rating for superior environmental resistance
- Integrated clamping for feeder and drop cables with comprehensive fiber management
- Separate routing paths for cables, pigtails, and patch cords to prevent interference
- Cassette-type SC/LC/PLC adaptor installation for easy maintenance
- Flip-up distribution panel with expression port for simplified cable placement
- Wall-mounted or pole-mounted installation options for indoor and outdoor applications
- Working temperature: -40℃ to +85℃
- Relative humidity: ≤85% (+30℃)
- Atmospheric pressure: 70KPa to 106KPa
- Insertion loss: ≤0.2dB
- UPC return loss: ≥50dB
- APC return loss: ≥60dB
- Insertion and extraction life: >1000 cycles
- Grounding device isolated from cabinet
- Isolation resistance: >2MΩ/500V (DC)
- Withstand voltage between grounding device and cabinet: ≥3000V (DC)/min, no puncture or flashover
| Items | Descriptions |
|---|---|
| Tensile Strength | Short-term: 200N Long-term: 100N |
| Crush Resistance | Short-term: 400N/100mm Long-term: 200N/100mm |
| Bending Radius | Dynamic: ≥20D Static: ≥10D |
| Temperature Range | -20℃ to +70℃ |
| Description | Value |
|---|---|
| Dimensions (H x W x D) | 83 x 100 x 30 mm |
| Adaptor type | SC simplex, shuttered |
| Fiber capacity | 4 fiber |
| Connector IL | 0.30 dB |
| Connector RL | 60 dB (APC), 50 dB (UPC) |
- 25+ years of manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years of experience
- 10+ R&D Engineers dedicated to innovation
- 16 sets of Germany imported injection machines and production lines
- 30+ sets of testing equipment including OTDR, 3D, VFL, IL & RL test instruments
- OEM branding services available
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
- Raw material incoming inspection before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Final spot checks before shipping
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging options: Plastic bags, cartons, and pallets available per customer request
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
A3: Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
A4: Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
A5: If you encounter quality issues upon receiving goods, please take photos for our reference. Our QC department will investigate and provide the best solutions, and we will implement improvements for future production.
A6: We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests.
A7: T/T 30% deposit, with 70% balance payment before delivery. We provide product and packaging photos before final payment.
A8: EXW, FOB, CFR, CIF, DDU
A9: Generally 5-7 working days after receiving advance payment. Specific timing depends on order items and quantities.
A10: Yes, we can manufacture based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
