FTKS-1708-24C-16F Termination Box
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TK-PC-48F-SC-OS2-50M |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | FTKS-1708-24C-16F Termination Box | Working Temperature: | 40℃~+85℃ |
|---|---|---|---|
| Relative Humidity:: | S85%(+30℃) | Atmospheric Pressure: | 70KPa~106Kpa |
| Insertion Loss: | S0.2dB | UPC Return Loss: | 250dB |
| APC Return Loss: | 260dB | Life Of Insertion And Extraction Fiber Count: | >1000 Times |
| Fiber Brand: | Corning, YOFC, OFS, Draka | ||
| Highlight: | Fiber optic termination box FTKS-1708,24C-16F termination box,Fiber optic enclosure with warranty |
||
Product Description
FTKS-1708-24C-16F Termination Box
Product Overview
The FTKS-1708-24C-16F Termination Box serves as a termination point for feeder cables to connect with drop cables in FTTx communication network systems. This versatile enclosure facilitates fiber splicing, splitting, and distribution while providing robust protection and management for FTTx network infrastructure.
Product Features
- Total enclosed structure for maximum protection
- Material: PC (Polycarbonate) with wet-proof, water-proof, dust-proof, and anti-aging properties
- Protection level: IP68 rated
- Integrated design for cable clamping, fiber splicing, fixation, storage, and distribution
- Separate routing paths for cables, pigtails, and patch cords to prevent interference
- Cassette-type SC/LC/PLC adaptor installation for easy maintenance
- Flip-up distribution panel with expression port for easy cable placement and maintenance
- Flexible installation options: wall-mounted or pole-mounted
- Suitable for both indoor and outdoor applications
Environmental Requirements
- Working temperature: -40℃ to +85℃
- Relative humidity: ≤85% (+30℃)
- Atmospheric pressure: 70KPa to 106KPa
Technical Specifications
- Insertion loss: ≤0.2dB
- UPC return loss: ≥50dB
- APC return loss: ≥60dB
- Life of insertion and extraction: >1000 times
Thunder-proof Specifications
- Grounding device isolated from cabinet
- Isolation resistance: >2MΩ/500V (DC)
- Withstand voltage between grounding device and cabinet: ≥3000V (DC)/min (no puncture, no flashover)

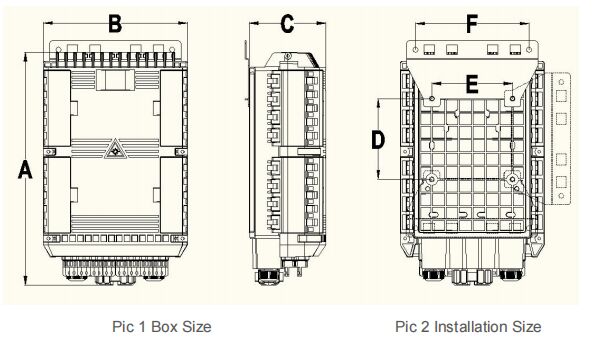

Configuration
Product Images
Mechanical and Environmental Characteristics
| Items | Descriptions |
|---|---|
| Tensile Strength | Short-term: 200N Long-term: 100N |
| Crush Resistance | Short-term: 400N/100mm Long-term: 200N/100mm |
| Bending Radius | Dynamic: ≥20D Static: ≥10D |
| Temperature Range | -20℃ to +70℃ |
Outlet Technical Data
| Description | Value |
|---|---|
| Dimensions (H x W x D) | 83 x 100 x 30 mm |
| Adaptor type | SC simplex, shuttered |
| Fiber capacity | 4 fiber |
| Connector IL | 0.30 dB |
| Connector RL | 60 dB (APC), 50 dB (UPC) |
Why Choose TAKFLY
- 25+ years of manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years of experience
- 10+ R&D Engineers
- 16 sets of Germany imported injection machines and 16 production lines
- 30+ sets of testing machines including OTDR, 3D, VFL, IL & RL test instruments, tension strength testers, crush resistance testers, power meter testers, and light checkers
- OEM branding available
- Active participation in major exhibitions: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
- Raw material incoming inspection before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Final spot check before shipping
Delivery Information
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging options: Plastic bag, carton, and pallet available according to customer requirements
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on the size of your shipment and the shipping method. We will provide the cost upon request.
Q4: Can I visit you?
A4: Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is a quality problem when we receive the goods?
A5: If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, and we will implement improvements for future production.
Q6: What are your packing terms?
A6: Generally, we pack our goods in blister boxes and cartons, but we can also accommodate custom packaging requests.
Q7: What are your payment terms?
A7: T/T 30% as deposit, and 70% before delivery. We will provide photos of the products and packaging before final payment.
Q8: What are your delivery terms?
A8: EXW, FOB, CFR, CIF, DDU
Q9: What is your delivery time?
A9: Generally, delivery takes 5-7 working days after receiving your advance payment. Specific timing depends on the items and order quantity.
Q10: Can you produce according to samples?
A10: Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
