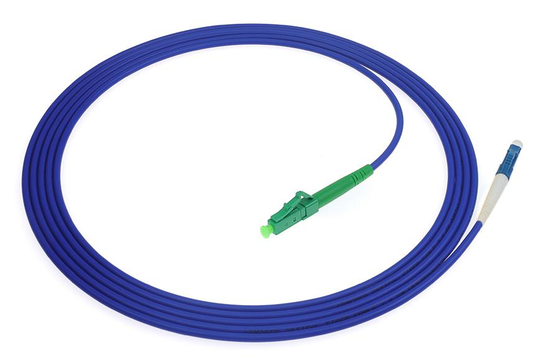

LC/APC-LC/UPC Armoured Patch Cord LSZH/PVC SM/MM UPC and APC
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TK-PC-48F-SC-OS2-50M |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product NEC Pigtailame: | LC/APC-LC/UPC Armoured Patch Cord | Repetition Test: | Additional Loss≤0.1dB,Reture Loss Variability<5dB |
|---|---|---|---|
| Temperature Stability (-40℃～85℃): | Additional Loss≤0.2dB,Reture Loss Variability<5dB | Cable Diameter: | 3.0mm |
| Intertion Loss: | ≤0.3dB | Return Loss: | UPC SM≥50dB, APC SM≥ 60 DB, PC MM ≥ 35 DB |
| Cable Jacket: | Single Armored | Cable Color: | Blue Or Others |
| Tensile Strength: | 0.9mm >5N, 2.0mm/3.0mm >70N | Operation Temperature: | -40℃～+75℃ |
| Storage Temperature: | -40℃～+75℃ | Bend Radius: | 40mm |
| Cable Material: | Stainless Steel Tube, PVC/LSZH Etc | Fiber Brand: | Corning, YOFC, OFS, Draka |
| Highlight: | LC APC armored fiber patch cord,LSZH fiber optic patch cable,UPC APC single mode patch cord |
||
Product Description
LC/APC-LC/UPC Armoured Patch Cord LSZH/PVC SM/MM UPC and APC
LC/APC-LC/UPC armoured patch cord is to add fiber optic connectors at both ends of a armoured fiber optic cable. Realize the active connection between optical network equipment and equipment, equipment, and fiber optic patch cord. Simple, convenient, and fast operation, it is one of the indispensable passive products for optical network construction.
TAKFLY can provide a full range of armoured patch cords, whose transmission mode, cable type and connector type can be matched freely. Moreover, they're featured with advantages of stable transmission, high tensile strength, crush resistance, rodent resistance and customization etc. and widely applicable in optical network scenario such as backbone network, optical cabling and data centers etc.
Product Applications
- Data center
- Backbone Network
- Outdoor scenes
Product Features
- Connector type LC,SC,FC,ST,SMA etc. is optional
- Single mode and Multimode; Simplex or Duplex
- Cable 2.0mm or 3.0mm with simplex or duplex and 4,6,8,12,24Core
- Custom order length
- Cable out Jacket: PVC,LSZH,OFNP,OFNR etc.
- All parts compliant with ROHS
- GR-326-CORE Compliant
- Armoured fiber optic cable provides high tensile strength, crush resistance and rodent resistance
- IEC standard compatible
- Stainless steel tube provides good protection against physical damage
Armored fiber cable with build-in metal armor can provide stronger protection of the optical fibers than standards fiber optic cables. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with excessive dust, oil, gas, moisture, or even damage-causing rodents.
Product Specifications
Product Picture
Why Choose TAKFLY
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
FAQ
Q1: How can I get your catalogue and price list?
A1: Please let us know your email or contacts from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quality problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Furthermore we will also take action to improve the quality in future
Q6. What is your terms of packing?
A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers
Q7. What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance
Q8. What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9. How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q10. Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
If you're interested in our products or have any doubt, feel free to contact me at any time!
