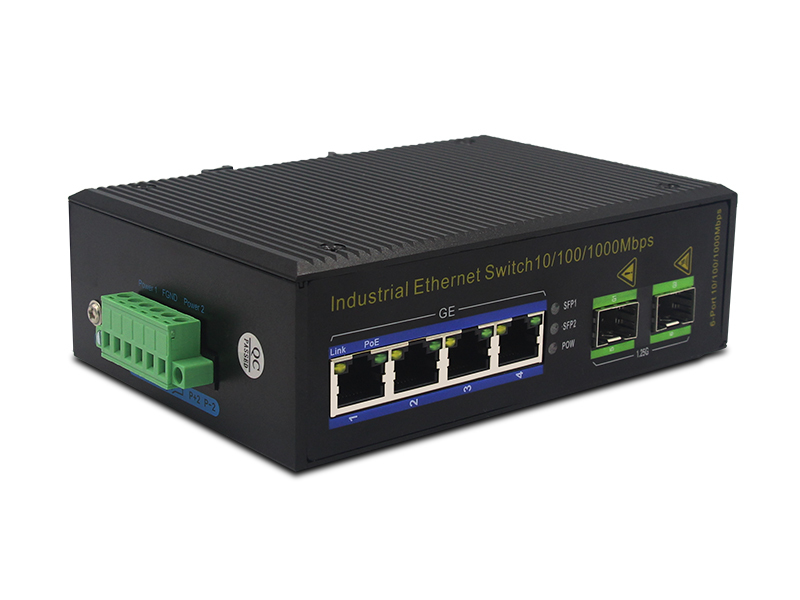

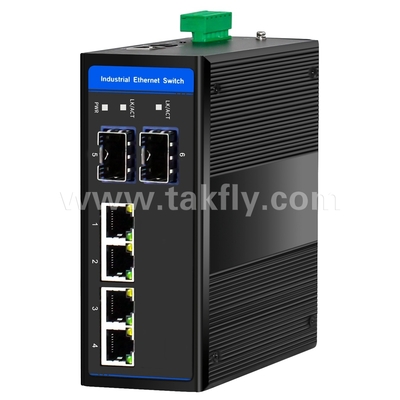

Industrial POE Ethernet Switch 4 Port Gigabit 2 SFP DIN-Rail
Product Details:
| Place of Origin: | China |
| Brand Name: | TAKFLY/OEM |
| Certification: | CE, ROHS, REACH |
| Model Number: | DF-2FG-4GPI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 30.85USD |
| Packaging Details: | Carton box |
| Delivery Time: | 2~3 days |
| Payment Terms: | ,T/T,Western Union |
| Supply Ability: | 5000 piece/week |
|
Detail Information |
|||
| Interface: | 4x10/100/1000Base-T POE Port + 2x 1000Mbps SFP Slot | Power Supply: | Input Voltage: DC48～57V/Terminal Block |
|---|---|---|---|
| Shell: | IP40 Protect Grade, Metal Shell | Installation: | DIN-Rail |
| Weight: | 0.56kg | Size: | 15.3×11.5×4.7cm |
| Warranty: | 5-years | ||
| Highlight: | 4 port industrial POE switch,Gigabit Ethernet switch DIN-rail,POE switch with SFP ports |
||
Product Description
Outdoor Industrial POE Ethernet Switch - 2 SFP Port Media Converter with 4×10/100/1000M Gigabit Ports
Product Attributes
| Interface | 4x10/100/1000Base-T POE port + 2x 1000Mbps SFP Slot |
|---|---|
| Power Supply | Input Voltage: DC48～57V/Terminal block |
| Shell | IP40 protect grade, metal shell |
| Installation | DIN-Rail |
| Weight | 0.56kg |
| Size | 15.3×11.5×4.7cm |
| Warranty | 5-years |
Product Description
This industrial PoE switch features 4 Port 10/100/1000Mbps PoE ports and 2 port 1000Mbps SFP Slot, designed for connecting devices like computers, switches, hubs, and servers, while also powering network cameras, industrial VoIP phones, wireless APs and other PoE supported devices.
Specially engineered for harsh outdoor applications, it offers 6KV network port surge protection to withstand challenging environments and ensure uninterrupted PoE system reliability. The power input utilizes industry-standard power types.
Key Features
- 4 Port 10/100/1000Mbps POE, 2 port 1000Mbps SFP
- 4 Port support PoE, compatible with IEEE 802.3af (15.4W) and IEEE802.3at PoE (30W)
- Automatic MAC address learning and aging
- Automatically supports IGMP (Multicasting)
- 10/100/1000Mbps Auto-negotiation, auto-MDI-MDI-X
- LED indicators for monitoring power/link/activity
- Supports 10/100/1000Mbps-Full/Half-duplex
- Supports DIN-Rail installation
- Wide operating temperature range: -40℃ to +85℃
Technical Specifications
| Interface | 4x10/100/1000Base-T POE port + 2x 1000Mbps SFP Slot |
|---|---|
| Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u; 100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; IEEE802.3af, IEEE802.3at |
| PoE Specification | PoE Standard: IEEE802.3af/IEEE802.3at PoE ports: 4 port support PoE Output Voltage: DC48V |
| Network Media | 10BASE-T: Cat3,4,5 UTP (≤100 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-TX: Cat6 or later UTP (≤100 meter) |
| Fiber Media | Multi-mode: 2KM; Single-mode: 20/40/60/80KM |
| Power Supply | Input Voltage: DC48～57V /Terminal block |
| Installation | DIN-Rail |
| Warranty | 5 years |
