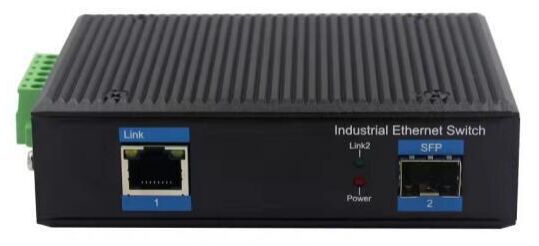

Industrial Grade PoE Switch 1 port 10/100/1000Mbps PoE + 1 port 1000Mbps SFP Fiber （DF-1FG-1GPI ）
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | DF-1FG-1GPI |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | 1 Port 10/100/1000M Industrial PoE Switch | Product Model: | DF-1FG-1GPI |
|---|---|---|---|
| Interface: | 1x 10/100/1000Base-T POE Port + 1x 1000Mbps SFP Slot | Network Protocols: | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base- X; IEEE802.3x; IEEE802.3af, IEEE802.3at |
| PoE Standard:: | IEEE802.3af/ IEEE802.3at | PoE Ports:: | 1 Port Support PoE |
| Output Voltage:: | DC48-57V | Fiber Midia: | Multi-mode: 2KM Single-mode: 20/40/60/80KM |
| Operating Temperature: | -40℃~+85℃ | Bandwidth:: | 10Gbps |
| Product Size (L×W×H): | 12.5cm× 10.4cm× 3.4cm | Warranty: | 5 Years, Lifetime Maintenance |
| Fiber Brand: | Corning, YOFC, OFS, Draka | ||
| Highlight: | 1 port PoE switch with SFP fiber,industrial PoE switch 10/100/1000Mbps,PoE fiber switch with 1Gbps SFP |
||
Product Description
Industrial Grade PoE Switch 1 port 10/100/1000Mbps PoE + 1 port 1000Mbps SFP Fiber (DF-1FG-1GPI)
Industrial PoE switch featuring 1 Port 10/100/1000Mbps PoE and 1 port 1000Mbps SFP. Designed for connecting devices like computers, switches, hubs, servers, while also powering network cameras, industrial VoIP phones, wireless APs and other PoE-supported devices.
Product Overview
Specially engineered for harsh outdoor applications with 6KV network port surge protection to ensure reliability in demanding environments. Features industry-standard power input options for maximum compatibility.
Key Features
- 1 Port 10/100/1000Mbps PoE + 1 port 1000Mbps SFP
- PoE support for IEEE 802.3af (15.4W) and IEEE 802.3at (30W)
- Automatic MAC address learning and aging
- IGMP (Multicasting) support
- 10/100/1000Mbps Auto-negotiation with auto-MDI-MDI-X
- LED indicators for power/link/activity monitoring
- Full/Half-duplex support for 10/100/1000Mbps
- DIN-Rail and Wall mounting installation
- Daisy-Chain connection support
- Broadcast Storm Control
- Relay output for power failure
- QoS support for VoIP packet transmission
- 6KV lightning protection with IP40 rating
- Fanless design for excellent heat elimination
- Redundant dual DC power inputs
- Operating temperature range: -40℃ to +85℃
- Ideal for Urban Intelligent Traffic Monitoring Systems (ITS) and Safe City applications
Technical Specifications
Additional Specifications
Product Images
Why Choose TAKFLY
- 26+ years of manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years of experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany-imported Injection Machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
Q6: What is your terms of packing?
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
Q7: What is your terms of payment?
T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to the samples?
Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
