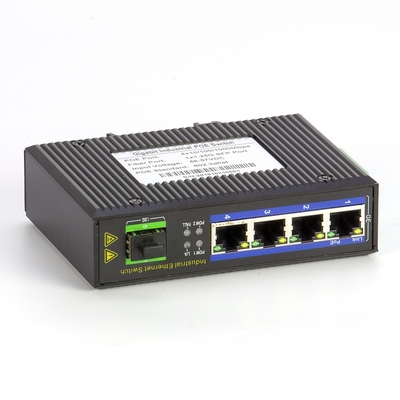

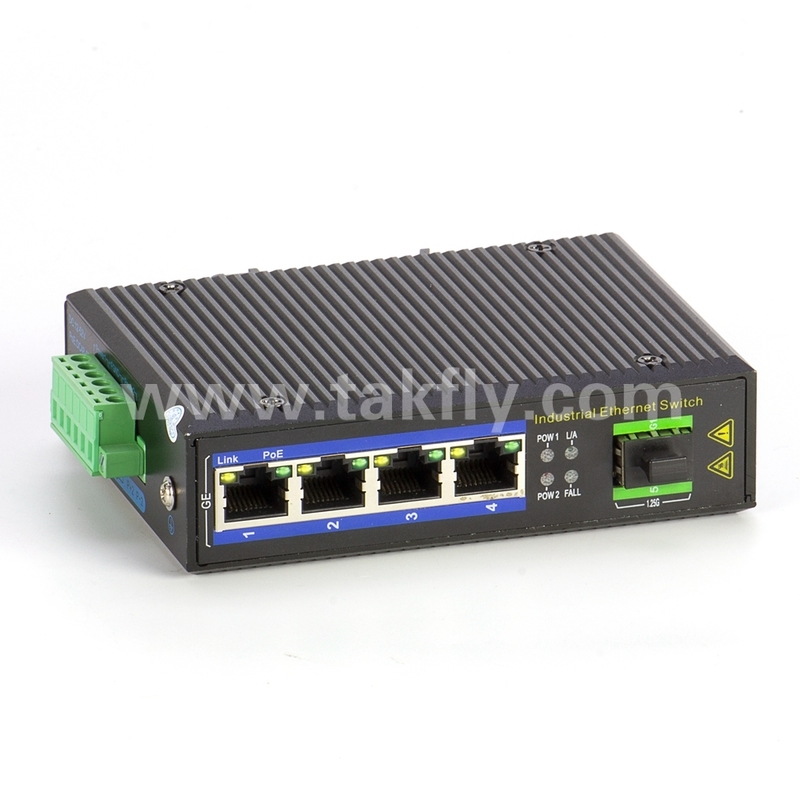

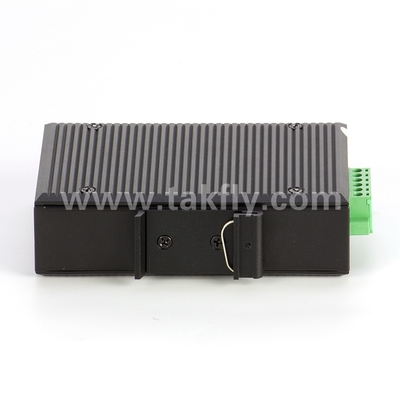

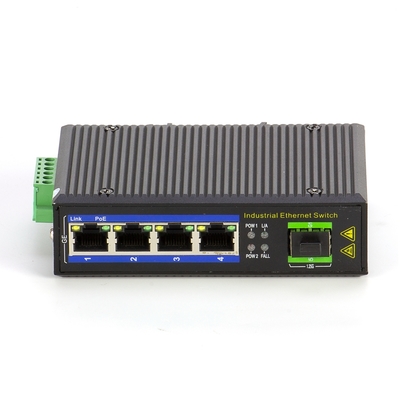

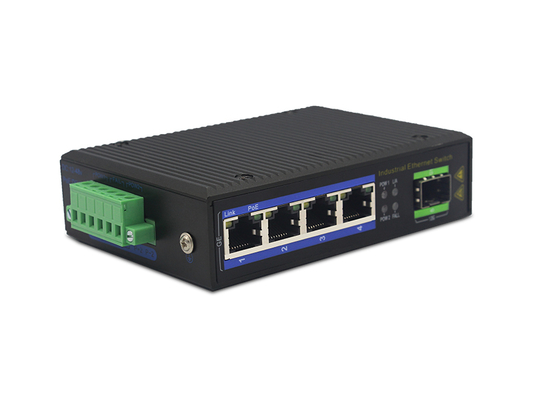

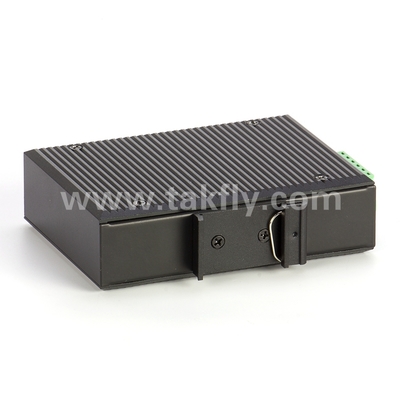

Industrial POE Ethernet Switch 4-Port Gigabit with SFP Slot
Product Summary
Industrial Outdoor POE Ethernet Switch with 1 SFP Port Media Converter Product Attributes Attribute Value Interface 4x10/100/1000Base-T POE port + 1x 1000Mbps SFP Slot Power Supply Input Voltage: DC48～57V/Terminal block Shell IP40 protect grade, metal shell Installation DIN-Rail Weight 0.45kg Size ...
Product Custom Attributes
4-port industrial POE Ethernet switch
,Gigabit Ethernet switch with SFP
,industrial fiber switch POE
Basic Properties
Trading Properties
Product Description
| Attribute | Value |
|---|---|
| Interface | 4x10/100/1000Base-T POE port + 1x 1000Mbps SFP Slot |
| Power Supply | Input Voltage: DC48～57V/Terminal block |
| Shell | IP40 protect grade, metal shell |
| Installation | DIN-Rail |
| Weight | 0.45kg |
| Size | 17*14*6cm |
| Warranty | 5-years |
Industrial PoE switch with 4 Port 10/100/1000Mbps PoE ports and 1 port 1000Mbps SFP Slot, for connecting with devices like computers, switches, hubs, servers, etc., as well as powering network cameras, industrial VoIP phones, wireless APs and other PoE supported devices.
Specially designed for harsh outdoor applications. Its 6KV network port surge protection can adapt to harsh outdoor environments and ensure the reliability of the uninterrupted PoE system. Power input also chooses industry-standard types of power.
- 4 Port 10/100/1000Mbps POE, 1 port 1000Mbps SFP
- 4 Port support PoE, supports IEEE 802.3af(15.4W), IEEE802.3at PoE (30W)
- Automatic MAC address learning and aging
- Automatically support IGMP (Multicasting)
- 10/100/1000Mbps Auto-negotiation, auto-MDI-MDI-X
- LED indicators for monitoring power/link/activity
- Supports 10/100/1000Mbps-Full/Half-duplex
- Supports Wall-mount and DIN-Rail installation
- -40℃ to +85℃ operating temperature range
| Interface | 4x10/100/1000Base-T POE port + 1x 1000Mbps SFP Slot |
|---|---|
| Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u; 100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; IEEE802.3af, IEEE802.3at |
| PoE Specification | PoE Standard: IEEE802.3af/ IEEE802.3at |
| Network Media |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
| Fiber Media | Multi-mode: 2KM; Single-mode: 20/40/60/80KM |
| Power Supply | Input Voltage: DC48～57V/Terminal block |
| Installation | DIN-Rail |
| Warranty | 5 years |
-
