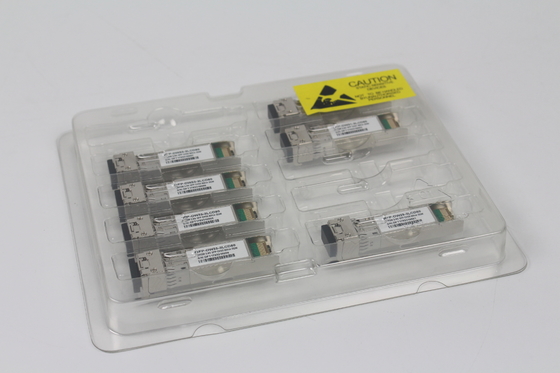

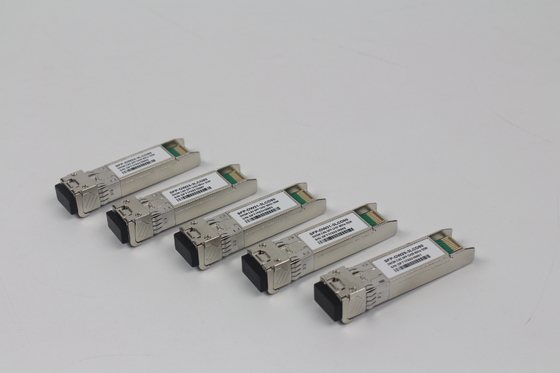

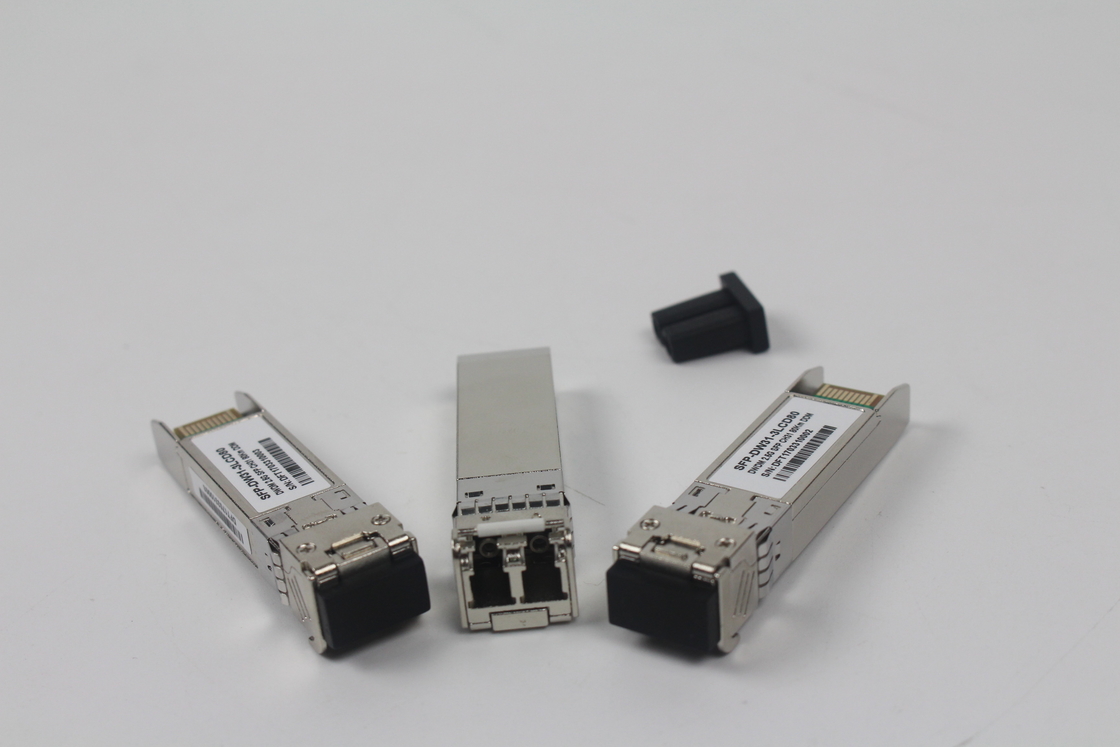

10Gbps DWDM 40KM 50GHz SFP+ Transceiver

10Gbps DWDM 40KM 50GHz SFP+ Transceiver

Product Details:

Place of Origin: Guangdong, SHENZHEN
Brand Name: TAKFLY
Certification: CE,ROHS,REACH,ISO9001,ISO14001
Model Number: TKQS28-100G-SR4

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pices
Price: US$0.01 ~ US$1200/PC
Delivery Time: 3-7working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Get Best Price Contact Now

Detail Information

Ratio: 50/50 Center Wavelength: 1450nm
Insertion Loss: ≤0.3dB Package Weight: 10g
Package Type: Bare Fiber, 900um Loose Tube, 2mm Cable Wavelegth: 1310nm
Axis Alignment: Slow Axis Or Fast Axis Wavelength Range: 1310nm, 1550nm
Application: Optical Communication Systems Splitter Ratio: 98/2
Storage Temperature: -40~+85℃ Port Number: 1x2
Fiber Length: 1m Fiber: PM Corning 980nm Fiber
Power Handling Capacity: High Power

Product Description

Features

  •  Up to 11.1Gbps Data Links
  • Up to 40KM transmission on SMF
  • DWDM EML Laser and PIN receiver
  • Metal enclosure, for lower EMI
  • 2-wire interface with integrated Digital Diagnostic monitoring
  • Hot-pluggable SFP+ footprint
  • Specifications compliant with SFF 8472
  • Compliant with SFP+ MSA with LC connector
  • Single 3.3V power supply
  • Case operating temperature range:0°C to 70°C
  • Power dissipation < 1.5W


Applications

  • 10GBASE-ER/EW
  • 40km 10G Fiber Channel
  • 10G Ethernet with FEC

Product description



The TAKFLY TKD-xx92-3LCD40 transceivers include an PIN diode and temperature stabilized DFB-EML transmitter. Digital diagnostic functions are available via an I2C.This module is designed for single mode fiber and operates at a nominal wavelength of 50GHz ITU Grid, C Band DWDM wavelength.


Product selection

C-band λc Wavelength Guide Pin Descriptions

Channel

Wavelength (nm)

Frequency (THZ)

Channel

Wavelength (nm)

Frequency (THZ)













C13

1567.13

191.30

C37

1547.72

193.70













C14

1566.31

191.40

C38

1546.92

193.80













C15

1565.50

191.50

C39

1546.12

193.90













C16

1564.68

191.60

C40

1545.32

194.00













C17

1563.86

191.70

C41

1544.53

194.10













C18

1563.05

191.80

C42

1543.73

194.20













C19

1562.23

191.90

C43

1542.94

194.30













C20

1561.42

192.00

C44

1542.14

194.40













C21

1560.61

192.10

C45

1541.35

194.50













C22

1559.79

192.20

C46

1540.56

194.60













C23

1558.98

192.30

C47

1539.77

194.70













C24

1558.17

192.40

C48

1538.98

194.80













C25

1557.36

192.50

C49

1538.19

194.90













C26

1556.55

192.60

C50

1537.40

195.00













C27

1555.75

192.70

C51

1536.61

195.10













C28

1554.94

192.80

C52

1535.82

195.20













C29

1554.13

192.90

C53

1535.04

195.30













C30

1553.33

193.00

C54

1534.25

195.40













C31

1552.52

193.10

C55

1533.47

195.50













C32

1551.72

193.20

C56

1532.68

195.60













C33

1550.92

193.30

C57

1531.90

195.70













C34

1550.12

193.40

C58

1531.12

195.80













C35

1549.32

193.50

C59

1530.33

195.90













C36

1548.51

193.60

C60

1529.55

196.00













Non-ITU

Peakwavelengthbetween1528.77nm-1567.13

C61

1528.77

196.10
















Absolute Maximum Ratings

Parameter

Symbol

Min.

Typ.

Max.

Unit

Note

Storage Temperature

Ts

-40

-

85

ºC



Relative Humidity

RH

5

-

95

%



Power Supply Voltage

VCC

-0.3

-

4

V



Signal Input Voltage



Vcc-0.3

-

Vcc+0.3

V






Recommended Operating Conditions

Parameter

Symbol

Min.



Typ.

Max.

Unit

Note

Case Operating Temperature

Tcase

0



-

70

ºC

Without air flow

















Power Supply Voltage

VCC

3.14



3.3

3.47

V



















Power Supply Current

ICC

-





450

mA



















Data Rate

BR





10.3125



Gbps



















Transmission Distance

TD





-

40

km



















Coupled fiber





Single mode fiber





9/125um SMF





























 Optical Characteristics

Parameter

Symbol

Min

Typ

Max

Unit

NOTE



















Transmitter































Average Optical Power

Pout

-2



2

dBm

1



















Optical Wavelength

λc

λc-0.1



λc+0.1

nm





















Center Wavelength Spacing





100



GHz

2



















Optical Extinction Ratio

ER

6.0





dB





















Transmitter and Dispersion

TDP





3.0

dB





Penalty































Side mode Suppression ratio

SMSR

30





dB





















Average Launch Power

Poff





-30

dBm





















Output Eye Mask



Compliant with IEEE 802.3ae























Receiver































Rx Sensitivity

RSENS





-15.8

dBm

3



















Input Saturation Power

Psat

-6





dBm





(Overload)







































Wavelength Range

λC

1260



1600

nm





















LOS De-Assert

LOSD





-17

dBm





















LOS Assert

LOSA

-30





dBm





















LOS Hysteresis



0.5





dB





















Notes:

















1) Output power is power coupled into a 9/125 mm single-mode fiber.



2) Corresponds to approximately 0.8 nm.

3) Measured with a PRBS 231-1 test pattern, @10.325Gb/s, BER<10-12 .


Electrical Characteristics

















Parameter

Symbol

Min

Typ



Max

Unit

NOTE

























Supply Voltage

Vcc

3.14

3.3



3.46

V



























Supply Current

Icc







450

mA



























Transmitter







































Input differential impedance

ohm



100





Ω

1

























Differential data input swing

Vin,pp

120





820

mV



























Transmit Disable Voltage

VD

Vcc–1.3





Vcc

V



























Transmit Enable Voltage

VEN

Vee





Vee+ 0.8

V

2

























TX_FAULT Voltage-High



Vcc–1.3





Vcc

V



























TX_FAULT Voltage-Low



Vee





Vee+ 0.8

V



























Transmit Disable Assert









10

us







Time





















































Receiver







































Differential data output swing

Vout,pp

350





850

mV

3

























Data output rise time

tr

30







ps

4

























Data output fall time

tf

30







ps

4

























LOS De-assert



Vcc–1.3





VccHOST

V

5

























LOS Assert



Vee





Vee+0.8

V

5

























Notes:

  •  Connected directly to TX data input pins. AC coupled thereafter
  • Or open circuit.
  • Into 100 ohms differential termination.
  • These are unfiltered 20-80% values
  • Loss Of Signal is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.

Pin Descriptions

10Gbps DWDM 40KM 50GHz SFP+ Transceiver 0

Pin out of Connector Block on Host Board


Pin

Symbol

Name/Description

NOTE

1

VEET

Transmitter Ground

(Common with Receiver Ground)

1

2

TFAULT



Transmitter Fault.



2

3

TDIS

Transmitter Disable. Laser output disabled on high or open.

3

4

SDA

2-wire Serial Interface Data Line

4









5

SCL

2-wire Serial Interface Clock Line

4









6

MOD_ABS

Module Absent. Grounded within the module

4













7

RS0



Rate Select 0



5











8

LOS

Loss of Signal indication.

Logic 0 indicates normal operation.

6









9

RS1

No connection required

1











10

VEER

Receiver Ground

(Common with Transmitter Ground)

1

11

VEER

Receiver Ground

(Common with Transmitter Ground)

1

12

RD-

Receiver Inverted DATA out.

AC Coupled











13

RD+

Receiver Non-inverted DATA out.  AC Coupled













14

VEER

Receiver Ground

(Common with Transmitter Ground)

1

15

VCCR

Receiver Power Supply



16

VCCT

Transmitter Power Supply



17

VEET

Transmitter Ground

(Common with Receiver Ground)

1

18

TD+

Transmitter Non-Inverted DATA in. AC Coupled.













19

TD-

Transmitter Inverted DATA in.

AC Coupled.













20

VEET

Transmitter Ground

(Common with Receiver Ground)

1



Notes:

1) Circuit ground is internally isolated from chassis ground.



2) TFAULT  is an open collector/drain output, which should be pulled up with a 4.7k – 10k Ohms resistor on the host board if intended for use. Pull up voltage should be between 2.0V to Vcc + 0.3V.A high output indicates a transmitter fault caused by either the TX bias current or the TX output power exceeding the preset alarm thresholds. A low output indicates normal operation. In the low state, the output is pulled to <0.8V.



 Laser output disabled on TDIS >2.0V or open, enabled on TDIS <0.8V.



Should be pulled up with 4.7kΩ- 10kΩ host board to a voltage between 2.0V and 3.6V. MOD_ABS pulls line low to indicate module is plugged in.

Internally pulled down per SFF-8431 Rev 4.1.



LOS is open collector output. It should be pulled up with 4.7kΩ – 10kΩ on host board to a voltage between 2.0V and 3.6V. Logic 0 indicates normal operation; logic 1 indicates loss of signal.



Digital Diagnostic Functions

TKD-xx92-3LCD40 transceivers support the 2-wire serial communication protocol as defined in the SFP+ MSA.



The standard SFP serial ID provides access to identification information that describes the transceiver’s capabilities, standard interfaces, manufacturer, and other information.



Additionally, The SFP+ transceivers provide a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage. It also defines a sophisticated system of alarm and warning flags, which alerts end-users when particular operating parameters are outside of a factory set normal range.



The SFP+ MSA defines a 256-byte memory map in EEPROM that is accessible over a 2-wire serial interface at the 8 bit address 1010000X (A0h). The digital diagnostic monitoring interface makes use of the 8 bit address 1010001X (A2h), so the originally defined serial ID memory map remains unchanged.



The operating and diagnostics information is monitored and reported by a Digital Diagnostics Transceiver Controller (DDTC) inside the transceiver, which is accessed through a 2-wire serial interface. When the serial protocol is activated, the serial clock signal (SCL, Mod Def 1) is generated by the host. The positive edge clocks data into the SFP transceiver into those segments of the E2PROM that are not write-protected. The negative edge clocks data from the SFP transceiver. The serial data signal (SDA, Mod Def 2) is bi-directional for serial data transfer. The host uses SDA in conjunction with SCL to mark the start and end of serial protocol activation. The memories are organized as a series of 8-bit data words that can be addressed individually or sequentially.



Host - Transceiver Interface Block Diagram

10Gbps DWDM 40KM 50GHz SFP+ Transceiver 1

Outline Dimensions

Comply to SFF-8432 rev5.0, the improved Pluggable form factor specification.

10Gbps DWDM 40KM 50GHz SFP+ Transceiver 2


10Gbps DWDM 40KM 50GHz SFP+ Transceiver 3


Regulatory Compliance

Feature

Reference

Performance



Electrostatic discharge (ESD)

IEC/EN 61000-4-2

Compatible with standards











Electromagnetic Interference (EMI)

FCC Part 15 Class B EN 55022 Class B

Compatible with standards



(CISPR 22A)

















Laser Eye Safety

FDA 21CFR 1040.10, 1040.11 IEC/EN

Class 1 laser product



60825-1, 2

















Component Recognition

IEC/EN 60950, UL

Compatible with standards











ROHS

2002/95/EC

Compatible with standards











EMC

EN61000-3

Compatible with standards
