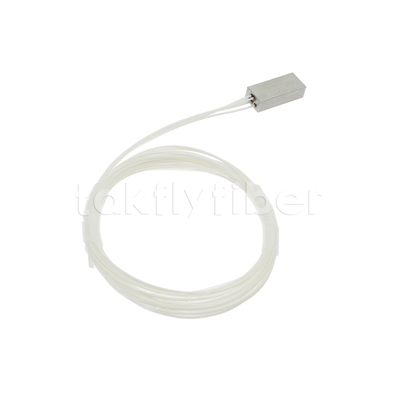

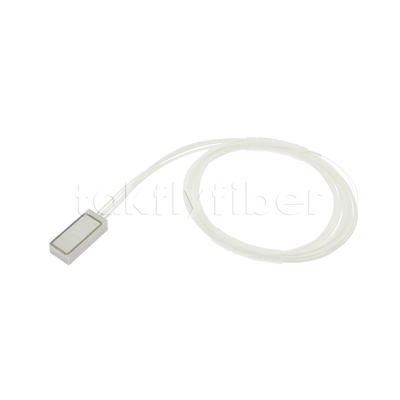

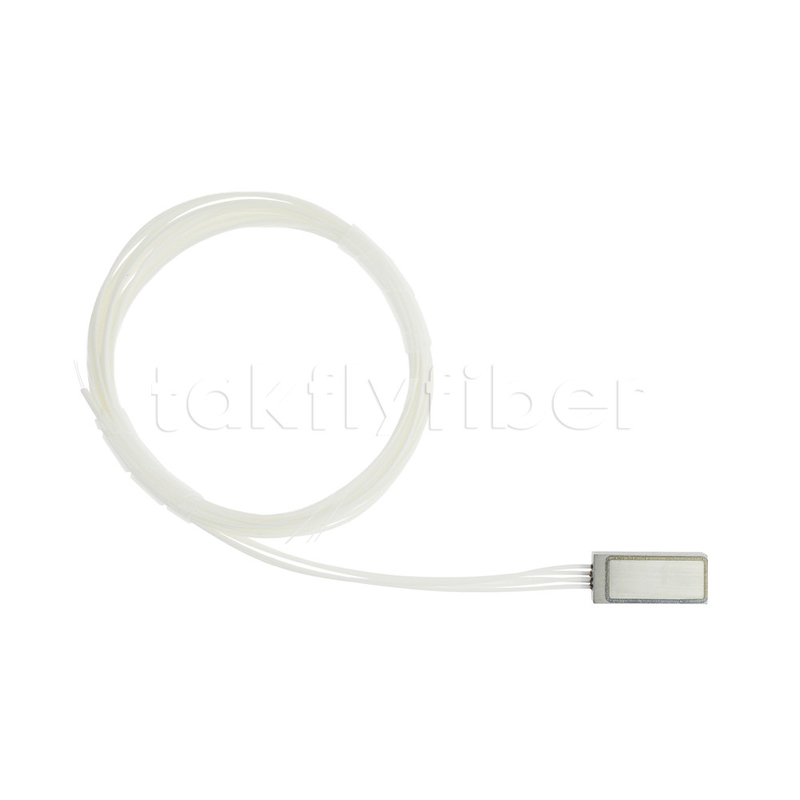

4CH Ultra Compact CWDM Module Operation Wavelengths 1470-1610nm Isolation Adjacent ≥30dB
Product Details:
| Place of Origin: | Made in China |
| Brand Name: | DF, TAKFLY, OEM |
| Certification: | CE, ROHS, REACH, ISO9001, ISO14001 |
| Model Number: | TK-UT-CCWDM-4CH |
| Document: | Takfly Product Catalogue.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 145.99 |
| Packaging Details: | Inner box +carton |
| Delivery Time: | 7-9 working days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 500pcs per week |
|
Detail Information |
|||
| Operation Wavelengths: | 1470-1610nm | Channel Number: | 4 |
|---|---|---|---|
| Mux Or Demux Insertion Loss: | ≤1.2 | Isolation Adjacent: | ≥30dB |
| Isolation Non-adjacent: | ≥40dB | Polarization Dependent Loss: | ≤0.1 |
| Return Loss: | ≥45dB | Dimension: | 25x10.8x6.5mm |
| Product Name: | 4CH Ultra Compact CWDM Module | ||
| Highlight: | Ultra Compact CWDM Module,4CH CWDM Module,1470-1610nm CWDM Module |
||
Product Description
4CH Ultra Compact CWDM Module
Features
- Low Insertion Loss
- Wide pass band
- High Channel Isolation
- High Stability and reliability
- Epoxy-free on Optical Path
Applications
Line Monitoring- WDM Network
- Telecommunication
- Cellular Application
- Fiber Optical amplifier
- Acess Network
Product Code
|
Item Number |
Customer Part Number |
Future-Optics Part Number |
Description |
|
1 |
NA |
NA |
4CH CWDM MODULE, 1470-1610nm,G657 A2 Fiber, 900um loose tube,-40~+85℃ |
Specification
2.1 4CH CWDM Specifications
|
Parameters |
Specifications |
Unit |
|
Operation Wavelengths |
1470-1610nm |
|
|
Channel Number |
4 |
CH |
|
Channel Center Wavelengths (nm) |
ITU |
|
|
Channel Passband(0.5dB) |
λc ±6.5 |
nm |
|
|
Mux or Demux Insertion Loss |
≤1.2 |
dB |
|
|
Isolation |
Adjacent |
≥30 |
dB |
|
Non-adjacent |
≥40 |
dB |
|
|
Polarization Dependent Loss |
≤0.1 |
dB |
|
|
Ripple |
≤0.5 |
dB |
|
|
Return Loss |
≥45 |
dB |
|
|
Dimension |
25x10.8x6.5 |
mm |
|
|
Fiber Type |
G657 A2, 900um jacket |
||
|
Fiber Length |
>0.5 |
M |
|
|
Connector |
FC/APC |
|
|
|
Operating Temperature |
-40~ +85 |
.C |
|
|
Storage Temperature |
-40 ~ +85 |
.C |
|
Note:The above parameters without connector, a pair of connector loss is 0.25dB
2.2 Schematic Drawing and Dimension
