Newly Design High Density MPO Patch Panel and Rack Mount of small in size, lightweight, impact-resistant
Product Details:
| Place of Origin: | Guangdong, SHENZHEN |
| Brand Name: | TAKFLY |
| Certification: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Model Number: | DF-MPO Patch Panel#995 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Pices |
|---|---|
| Price: | US$0.01 ~ US$1200/PC |
| Packaging Details: | spone + box + carton |
| Delivery Time: | 3-7working days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
|
Detail Information |
|||
| Installation Type: | Plug-in/Field-terminated | Module Fiber Amount: | Up To 24 |
|---|---|---|---|
| Operating Temperature: | -40°C To +80°C | Cores: | 2/4/6/8/12/24/48 |
| Cable Material: | LSZH / OFNP / PVC | Fiber Counts: | 12F |
| Fiber Count: | 8/12/24/48/72 Fibers | Return Loss: | >50dB |
| Patch Penal: | 6 X 4 LC X 5 Moudle | Polarity: | B |
| Ir Stardand: | MPO/MTP<0.7dB | Core: | Multicore |
| Fiber Mode: | SM, MM(OM1,OM2,OM3,OM4,OM5) | Size: | 180 X 90 X 30 (mm) |
| Cable Diameters: | 0.9 / 2.0 / 3.0mm | ||
| Highlight: | Rack Mount MPO Patch Panel,High Density MPO Patch Panel,Lightweight MPO Patch Panel |
||
Product Description
Description:

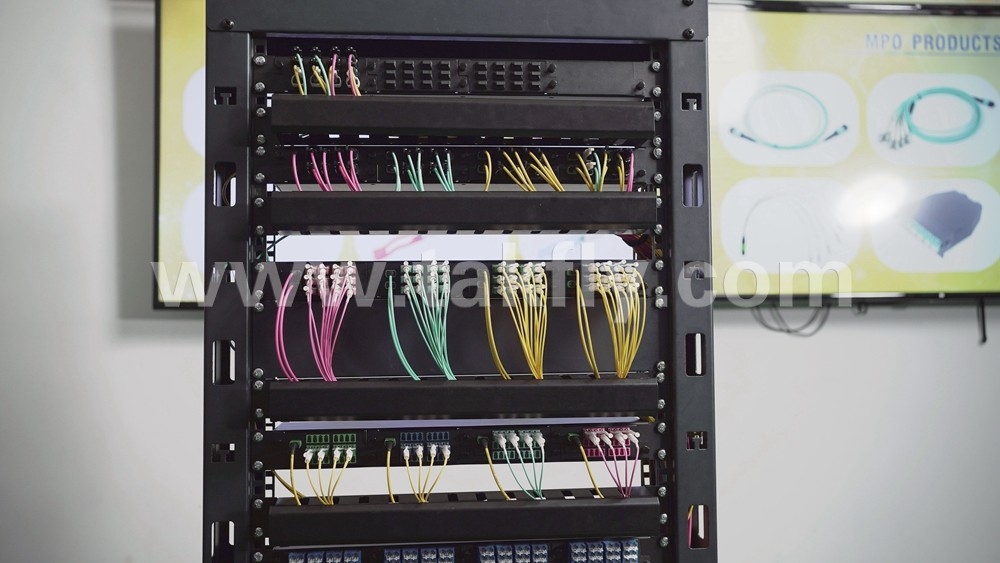

1U-19 inch MPO/MTP High-Density rack-mount fiber patch panel is designed for large data center room: MDF application, IDF wiring area optical fiber backbone connection, the fiber distribution unit management, and other the high-density integrated optical fiber environment, etc. It is installed in 19 inch racks and cabinets.

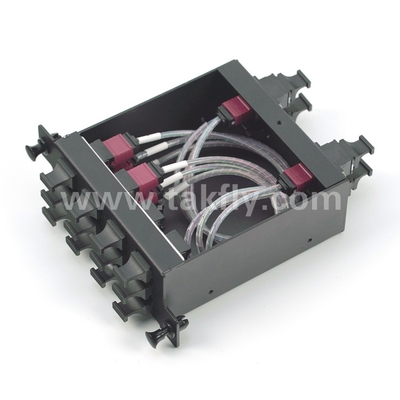

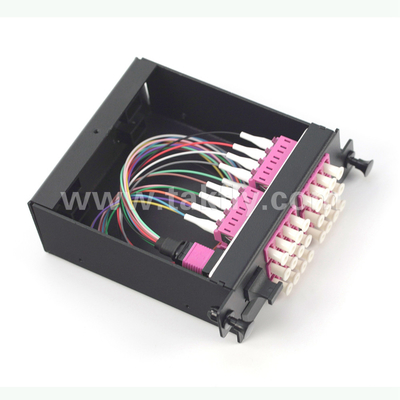

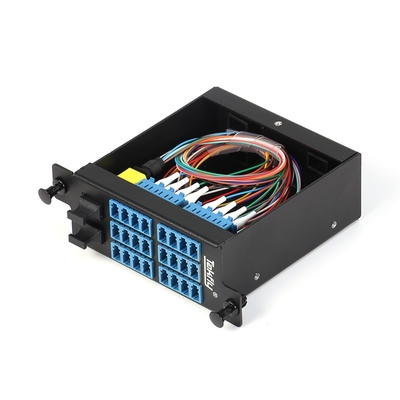

1U 19inch MPO/MTP Patch Panel could load 4 Pre-connected cassette module, and the maximum capacity can be managed is 1152 cores for MPO interface, or 96 cores for LC interface. Each independent pre-terminated module box is placed in the optical fiber distribution frame, to complete the full set patch panel.
Features:
u Installed in 19 inch rack-mount and cabinet, application for cassette modules centralized management.
u 1U high-density size capacity 1152 fibers for MPO interface and 96 fibers for LC interface.
u Input port can be used on the front panel or back for option, and output port is on the front panel.
u Male or Female MPO/MTP connector are available. Connected and positioned by PIN and adaptor to achieve precise and high stable connection.
u Modular design, plug-in locking structure, the fiber has a clear line sequence identification, easy to test, install, remove and adjust the mating.
u New brand high quality aluminum alloy material, sturdy and durable, electrostatic coating surface after the Strict production process
u The cassette module and patch panel are small in size, lightweight, impact-resistant, high-pressure, flame-retardant, corrosion-resistant, strong structure to protect the internal optical fiber, ultra-high sealing performance to facilitate dust-proof, innovative design for advanced network equipment.
Applications:
Ø Optical fiber communication dense wiring system between buildings.
Ø Optical link interconnection in optical active equipment for LAN cabling.
Ø Telecommunication base station.
Ø Data center room of industrial area.
Ø Data center room of commercial building.
Ø CATV
Ø LAN
Ø WAN
Ø FTTX
Configuration Scheme:
1.
2.
|
Model |
LGX Cassette capacity |
LGX |
Total capacity |
Connector type |
Size |
Application |
|
|
A2 |
R |
72F MPO*4 pcs |
4 |
1152F |
MPO*10*4 |
1U |
1 pcs of A2 LGX Cassette connect with 3 pcs of C1 LGX Cassette , full set of A2 connect with 3 full sets C1 |
|
T |
48FMPO*6 pcs=288F |
||||||
|
C1 |
R |
48F MPO*2 pcs |
4 |
384F |
MPO*10*4 |
1U |
1 pcs of C1 LGX Cassette connect with4 pcs D2 LGX Cassettes, full set C1 connect with 4 full sets D2 |
|
T |
12F MPO*8 pcs=96F |
||||||
|
D2 |
R |
12F MPO*2 pcs |
4 |
96F |
MPO*2*4 |
1U |
R:12F MPO*2*4, T:24F*4 LC, connect with the terminal device by LC patch cord |
|
T |
24F LC |
LC*24*4 |
|||||
3.
|
Model |
LGX Cassette capacity |
LGX |
Total capacity |
Connector type |
Size |
Application |
|
|
B1 |
R |
72F MPO*1 pcs |
4 |
288F |
MPO*5*4 |
1U |
R:72F MPO*1*4, T:16F MPO connect with the 400G transmission device by MPO patch cord, T:24F MPO can connect with C3 LGX Cassette |
|
T |
16F MPO*3 pcs 24F MPO*1 pcs=72F |
||||||
|
BG1 |
R |
72F MPO*2 pcs |
4 |
576F |
MPO*11*4 |
1U |
100G,400G dedicated cassette |
|
T |
16F MPO*9 pcs=144F |
||||||
|
C3 |
R |
24F MPO*1pc |
4 |
96F |
MPO*1*4 |
1U |
R:24F MPO*1*4, T:24F*4LC, connect with the terminal equipment by LC patch cord |
|
T |
24F LC |
LC*24*4 |
|||||
Product parameters:
|
Fiber type |
SM(G652, G655,G657); MM (OM1-OM5) |
||
|
Connector |
Male(Pin needle), Female |
LC |
|
|
MPO/MTP |
|||
|
Cable Diameter (mm) |
Mini Round cable: Max4.5mm Ribbon cable: Max3.0*5.0mm |
0.9/0.6 |
|
|
Insertion loss (dB) |
Standard: ≤0.35/0.7 (Typical/Max) Low Loss: ≤0.2/0.35 (Typical/Max) |
≤ 0.3 |
|
|
Return loss (Min) |
APC SM:60dB |
PC MM: 20dB |
UPC SM: 40dB APC SM: 60dB PC MM: 25dB |
|
Test Wavelength (nm) |
SM: 1310/1550 MM: 850/1300 |
||
|
Repeatability |
≤ 0.1dB |
||
|
Durability |
≤ 0.2dB |
||
|
Interchangeability |
≤ 0.2dB |
||
|
Bending radius(Dynamic/static) |
20/10 |
||
|
Product name |
Module box |
Machine case |
|
|
Size(L*W*H) |
93*100*39 |
482*200*44.2mm |
|
|
Material |
Aluminum |
||
Packaging:
|
Weight |
Inner box size |
Outer box dimensions(5pcs/Box) |
Weight per carton(kg) |
|
1.5kg |
500*280*80mm |
510*300*420mm |
11 |
