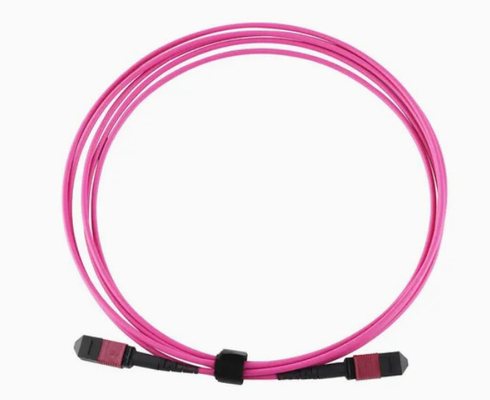

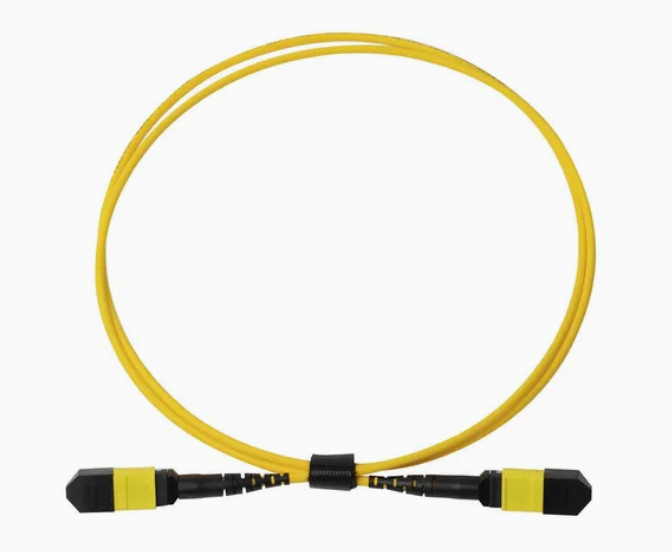

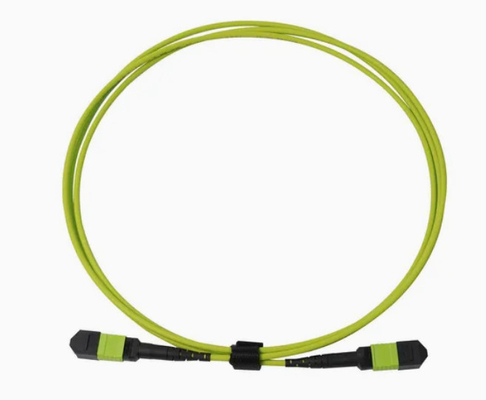

FTTH Indoor Outdoor LSZH PVC Fiber Optical Patch Cord 12/24/48/96/144 Core LC/Sc/St/FC MPO/MTP Connector
Product Details:
| Place of Origin: | China，Shenzhen |
| Brand Name: | OEM/Takfly |
| Certification: | CE, ROHS, REACH, ISO9001, ISO14001 |
| Model Number: | MPO/MTP-FTTH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | Carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50000pcs per month |
|
Detail Information |
|||
| Material: | LSZH, PVC... | Customizable: | Available |
|---|---|---|---|
| Color: | Negotiated | Type: | Single-mode Fiber |
| Operating Temperature: | -20°C To +70°C | Storage Temperature: | -40℃~+80℃ |
| Highlight: | 144 Core Fiber Optical Patch Cord,Outdoor Fiber Optical Patch Cord,Indoor Fiber Optical Patch Cord |
||
Product Description
Basic Info.
Applications
Asynchronous Transmission Mode(ATM)
Gigabit Ethernet
Active Device/Transceiver Interface
CATV, Video and Multimedia
Premise Installations
Telecommunication Networks
Parallel optical interconnects between PC Cards and patch panels
Interconnection for O/E modules
Optical Switch interframe connections
Features
Precision molded MT ferrule
High precision guide pins for exact alignment
Compact design, up to 4,8,12,24 fibers
IEC 61754-7 Compliant
EIA/TIA-604-5 Compliant
Product Specifications
Product Description
- High Speed and High Density - MPO to MPO Patch Cable, (MPO FEMALE Connector without PIN). Low insertion loss and back reflection loss process
- TYPE B & IEEE802BM - MMF(50/125um), OM3 10G standard, LSZH sheet, 8-core/ 12-core fibers cable, constructed with TYPE B
- High-performance for Your Datacenter - IL at 850nm 25 Db; Common configuration for connecting MPO / MTP cassettes and QSFP+ transceivers
- No Doubt About Quality - High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules, 3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of hte polished MT ferrule complies and exceeds industry standards.
- Better Get It HereThe flexibility of the tester provides the the complete spectrum of optical testing required for complex and high fiber count cable assemblie.
- OEM Payment Contact us for OEM customize and T/T payment.
MTP/MPO Type-B Cable Applications
Due to the special construction of MPO/MTP type-B cable, a female connector MPO/MTP cable is usually needed to match the male connector MPO/MTP cable. The male guide pin fits into the female bore to ensure precise fiber alignment. Attempting to mate two female or male connectors can result in light loss or damage to the fiber splice. The following examples focus on the application of female MPO/MTP type-B cables.
40G-40G Direct Connetction: Female to Female MTP/MPO Type-B Polarity Trunk Cable
Expect for the parallel 40G optical transmission mentioned above, female to female type-B trunk cable also can be used for direct switch to switch connetcivity with no patch panels. The following figure shows Cisco 40G switches connected by a 12-fiber MPO/MTO female cable directly.
