Product Details:

Place of Origin: China,Shenzhen
Brand Name: OEM/Takfly
Certification: CE, ROHS, REACH, ISO9001, ISO14001
Model Number: MPO/MTP-OM3

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Can be negotiated
Packaging Details: Carton
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union
Supply Ability: 50000pcs per month
Get Best Price Contact Now

Detail Information

Material: LSZH, PVC... Customizable: Available
Color: Blue Or Negotiated Type: Multi-mode Fiber
Highlight:

MPO to MPO Optic Fiber Cable

,

Om3 MPO Fiber Cable

,

Qsfp+Transceivers MPO Fiber Cable

Product Description







Basic Info.

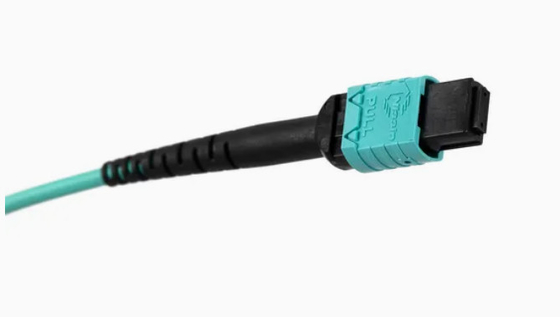

MTP Compatible Om3 MPO to MPO Optic Fiber Cable for Qsfp+Transceivers 5g Communications Type B 0

Product Description

  • High Speed and High Density - MPO to MPO Patch Cable, (MPO FEMALE Connector without PIN). Low insertion loss and back reflection loss process
  • TYPE B & IEEE802BM - MMF(50/125um), OM3 10G standard, LSZH sheet, 8-core/ 12-core fibers cable, constructed with TYPE B
  • High-performance for Your Datacenter - IL at 850nm 25 Db; Common configuration for connecting MPO / MTP cassettes and QSFP+ transceivers
  • No Doubt About Quality - High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules, 3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of hte polished MT ferrule complies and exceeds industry standards.
  • Better Get It HereThe flexibility of the tester provides the the complete spectrum of optical testing required for complex and high fiber count cable assemblie.
  • OEM Payment Contact us for OEM customize and T/T payment.

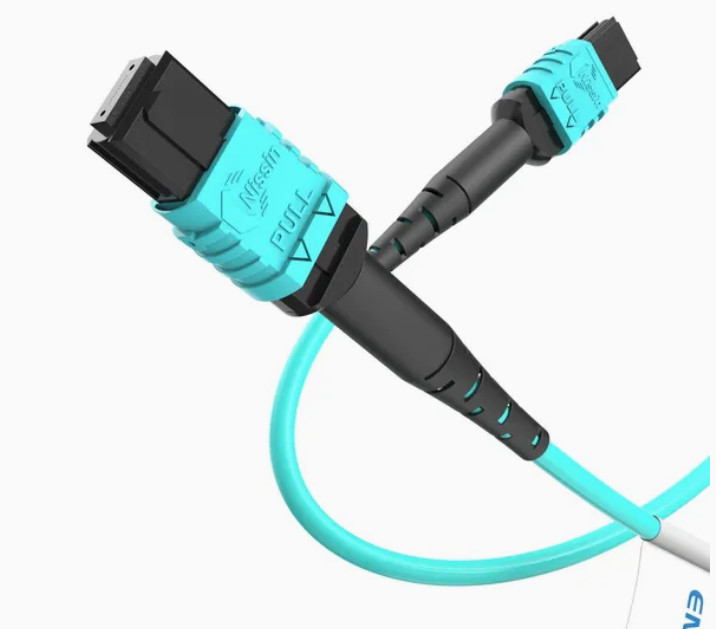

MTP Compatible Om3 MPO to MPO Optic Fiber Cable for Qsfp+Transceivers 5g Communications Type B 1

MTP Compatible Om3 MPO to MPO Optic Fiber Cable for Qsfp+Transceivers 5g Communications Type B 2





MTP/MPO Type-B Cable Applications

Due to the special construction of MPO/MTP type-B cable, a female connector MPO/MTP cable is usually needed to match the male connector MPO/MTP cable. The male guide pin fits into the female bore to ensure precise fiber alignment. Attempting to mate two female or male connectors can result in light loss or damage to the fiber splice. The following examples focus on the application of female MPO/MTP type-B cables.

40G-40G Direct Connetction: Female to Female MTP/MPO Type-B Polarity Trunk Cable

Expect for the parallel 40G optical transmission mentioned above, female to female type-B trunk cable also can be used for direct switch to switch connetcivity with no patch panels. The following figure shows Cisco 40G switches connected by a 12-fiber MPO/MTO female cable directly.

MTP Compatible Om3 MPO to MPO Optic Fiber Cable for Qsfp+Transceivers 5g Communications Type B 3



MTP Compatible Om3 MPO to MPO Optic Fiber Cable for Qsfp+Transceivers 5g Communications Type B 4

MTP Compatible Om3 MPO to MPO Optic Fiber Cable for Qsfp+Transceivers 5g Communications Type B 5

MTP Compatible Om3 MPO to MPO Optic Fiber Cable for Qsfp+Transceivers 5g Communications Type B 6

MTP Compatible Om3 MPO to MPO Optic Fiber Cable for Qsfp+Transceivers 5g Communications Type B 7

MTP Compatible Om3 MPO to MPO Optic Fiber Cable for Qsfp+Transceivers 5g Communications Type B 8

MTP Compatible Om3 MPO to MPO Optic Fiber Cable for Qsfp+Transceivers 5g Communications Type B 9

MTP Compatible Om3 MPO to MPO Optic Fiber Cable for Qsfp+Transceivers 5g Communications Type B 10
