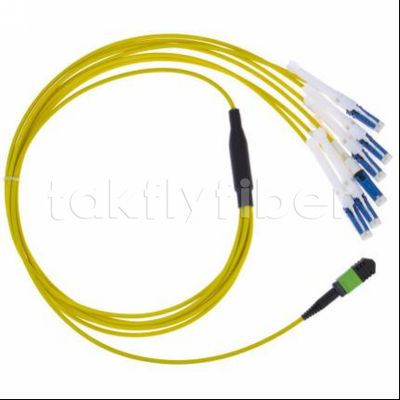

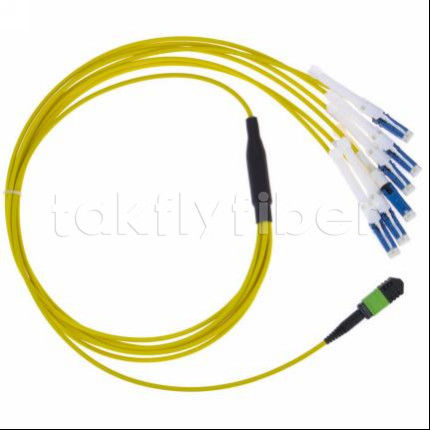

Durable MPO-CS Fiber Optic Patch Cord with Insertion Loss ≤0.3dB and 50/125 Fiber Diameter for Telecom Networks
Product Details:
| Place of Origin: | China |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TK-CS-3.0-1M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | US$0.01~2.79/PC |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 10000PCS/Day |
|
Detail Information |
|||
| Product Name: | ST To LC OM1 OM2 Fiber Optic Duplex Patch Cord | Intertion Loss: | ≤0.3dB |
|---|---|---|---|
| Return Loss: | PC MM ≥ 35 DB | Fiber Type: | OM1/OM2 |
| Diameter: | 3.0mm | Connector Type: | PC/UPC |
| Jacket Material: | LSZH/PVC/PU | Color: | Orange Or Customized |
| Wavelength: | 1310nm, 850nm | Length: | 1M Or Customized |
| Operation Temperature: | -40℃~80℃ | Fiber Diameter: | 50/125 |
| Grade: | Telecom Grade | Certificate: | CE/ROHS/REACH |
| Production Capcity: | 10000PCS/Day | ||
| Highlight: | Durable MPO-CS Patch Cord,Telecommunication Networks MPO-CS Patch Cord |
||
Product Description
Takfly operates 8 Fiber Optic Patchcord production lines with a daily production capacity of 20,000 units. Established in 2000 with over 400 employees, we bring 21+ years of manufacturing expertise in fiber optic products including MPO/MTP Patch cords, PLC Splitters, WDM systems, termination boxes, and transceivers.
ISO9001, ISO14001, CE, ROHS, REACH, FCC, CPR certified.
- Asynchronous Transmission Mode (ATM)
- Gigabit Ethernet
- Active Devices/Transceiver Interface
- CATV, Video and Multimedia
- Premise Installations
- Telecommunication Networks
- Parallel optical interconnect between PC Cards and patch panels
- Interconnection for O/E modules
- Industrial & Martial
- Optical Switch interframe connections
- Precision molded MT ferrule
- High precision guide pins for exact alignment
- Compact design, up to 4,8,12,24 fibers
- IEC 61754-7 Compliant
- EIA/TIA-604-5 Compliant
| Parameter | CS | MPO/MTP |
|---|---|---|
| End face type | UPC and APC | PC and APC |
| Fiber type | SM (G652, G655, G657); MM (OM1-OM5) | |
| Core number | 8, 12, 24 | |
| Cable Diameter | 2.0, 3.0 | Mini Round cable: Max 4.5mm; Ribbon cable: Max 3.0*5.0mm |
| Insertion loss (dB) | ≤ 0.3 | Standard: ≤0.35/0.7 (Typical/Max) Low Loss: ≤0.2/0.35 (Typical/Max) |
| Return loss (Min) | UPC SM: 40dB APC SM: 60dB PC MM: 25dB |
SM APC: 60dB MM PC: 20dB |
| Test Wavelength (nm) | SM: 1310/1550 MM: 850/1300 |
|
| Repeatability | ≤ 0.1dB | |
| Durability | ≤ 0.2dB | |
| Interchangeability | ≤ 0.2dB | |
| Operating Temperature | -20℃ to 70℃ | |
| Storage Temperature | -40℃ to 80℃ | |
| Outer Sheath Material | PVC, LSZH | |
| Bending radius (Static/Dynamic) | 10D/20D | |
| Length | Customized | |
Our products are installed in major worldwide projects and trusted by leading operators. We maintain long-term partnerships with Lapp, Amper, Telefonica, Orange, Corning, Amphenol, SENKO, and Ericsson.
We welcome all inquiries and promise high quality, competitive pricing, and fast delivery service regardless of order size.
Yes, we are a manufacturer and FTTH solution/data center total solution provider in Shenzhen, China, established in 2000.
MOQ can be 1 piece, but pricing becomes more competitive with larger quantities.
Yes. We deliver via air, DHL, TNT, UPS, FEDEX, or sea for large quantities. We provide quotes with freight and lead time based on your requirements.
Our production follows IEC and European standards with CE, ISO, RoHS, CPR, and ANATEL certifications. All products are 100% tested before delivery.
For fiber optic patch cords: 2-3 working days for up to 5,000 pieces. We maintain stock of regular products and handle urgent orders.
1-year warranty for patch cords (non-artificial damage). For artificial damage, we provide free repair with customer covering freight.
International export standard packaging. Custom logo printing available upon request.
Yes, all products accept OEM/ODM. We can sign Confidentiality Agreements.
Free samples available for products under $10. Buyer pays freight.
Send inquiry with product details → Receive quotation → Confirm order → Payment → Production → Delivery with tracking.
T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery.
With 3+ years of optical fiber industry experience, we guarantee competitive pricing matching any market offer of equal quality. Honored to be your professional product assistant.
