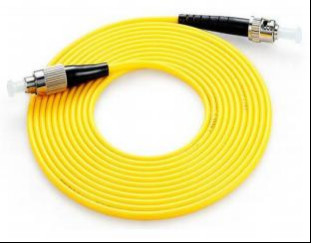

LSZH/PVC/PU Jacket Material FC-ST Patch Cord with High Temperature Stability and ≤0.3dB Insertion Loss
Product Details:
| Place of Origin: | China |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TK-PC-3.0-1M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | US$0.01~2.79/PC |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 10000PCS/Day |
|
Detail Information |
|||
| Product Name: | ST To LC OM1 OM2 Fiber Optic Duplex Patch Cord | Intertion Loss: | ≤0.3dB |
|---|---|---|---|
| Return Loss: | PC MM ≥ 35 DB | Fiber Type: | OM1/OM2 |
| Diameter: | 3.0mm | Connector Type: | PC/UPC |
| Jacket Material: | LSZH/PVC/PU | Color: | Orange Or Customized |
| Wavelength: | 1310nm, 850nm | Length: | 1M Or Customized |
| Operation Temperature: | -40℃~80℃ | Fiber Diameter: | 50/125 |
| Grade: | Telecom Grade | Certificate: | CE/ROHS/REACH |
| Production Capcity: | 10000PCS/Day | ||
| Highlight: | PU Jacket FC-ST Patch Cord,LSZH Jacket FC-ST Patch Cord,PVC Jacket FC-ST Patch Cord |
||
Product Description
Fiber Optic Patchcord Applications:
- CATV
- Telecommunication networks
- Active device termination
- Local area networks(LANS)
- Data processing networks
- Test equipment
- Wide area networks(WANS)
Fiber Optic Patchcord Features:
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard:Telcordia GR-326-CORE
Specifications:
|
End face type |
UPC and APC |
|
Fiber type |
SM(G652 ,G655 ,G657)；MM(OM1-OM5) |
|
Cable Diameter |
2.0 ,3.0 or customized(Simplex/duplex) |
|
Insertion loss |
≤ 0.3dB |
|
Return loss |
UPC SM ≥ 50dB ,APC SM≥ 60dB , UPC MM ≥ 35dB |
|
Repeatability |
≤ 0.1 |
|
Durability |
≤ 0.2dB |
|
Interchangeability |
≤ 0.2dB |
|
Tensile strength |
>70N |
|
Operating Temperature |
-20℃~70℃ |
|
Storage Temperature |
-40℃~80℃ |
|
Outer Sheath Material |
PVC ,LSZH ,TPU |
|
Bending radius (Static/Dynamic) |
10D/20D |
|
Length |
Customized |
Why choose TAKFLY--Advantages as follows:
- So far, our products have been widely installed in many big worldwide project and work perfectly. Many project contactors ask the first and second operators to purchase fiber items from Takfly for their new project.
- In addition, we also have builted long term cooperation with Lapp, Amper, Telefonica, orange, Corning, Amphenol, SENKO, and Ericsson.
All enquiry are warmly welcomed here no matter it's small or big, we promise to provide all customers high quality and good price and fast delivery service.
FQA :
1. Q: Are you a manufacturer?
A: yes, we are a manufacturer , FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive.More quantity,the price will be more competitive.
3. Q: Can you quote FOB price?
A: yes. We can delivery by air, DHL, TNT, UPC, FEDEX, etc. For big quantity we will deliver it by sea.
We can quote price with freight and lead time for you, after you let us know detailed requirements with quantity.
We have competitive shipping forwarders. For more solutions, you can feel free to contact us.
4. Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified.
All the products are 100% test before delivery.
5. Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2 -3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.
6. Q: What's your warranty?
A: Depends one different product, we have1 years warranty for patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.
7. Q: What's your packing?
A: International export standard package.If you need to print your logo on the packing, please let us know before we quote.
8. Q: Can you offer OEM/ODM?
A: yes, we can. all products accept OEM /ODM. we can sign the Confidentiality Agreement.
9. Q: Can I have a sample?
A: It depends on which products, Free sample provide under 10 usd. Freight will be paid by buyer before delivery.
10. Q: How can I order?
A:1. send mail or inquiries with product name, specification, and quantity to us . Provide your receive address if you need FOB,CIF,CFR price.
2. We will offer our quotation with lead time.
3. After the quotation confirmed, we will send a PI with our bank account.
4. Production will be arranged after the payment received.
5. Confirm the consignee with you before we deliver it.
6. The tracking number will be provided after the delivery.
11.what is your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.
With the same quality standard, if you could get better price from the market, TAKFLY also could support you same price.
3 years work experience in optical fiber industry, It's honored to be your professional product assistant.
