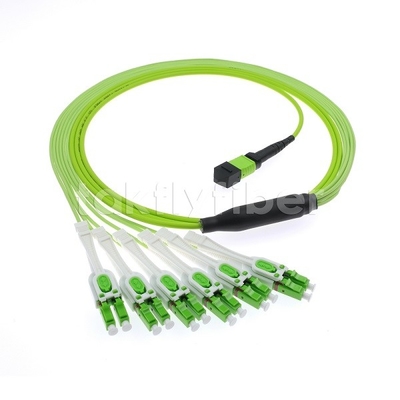

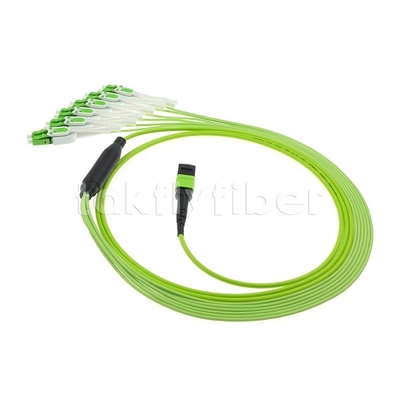

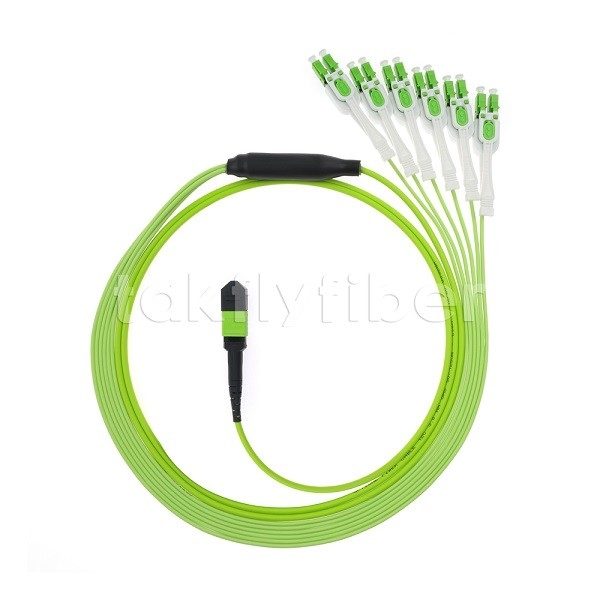

MPO / MTP Male or Female OM5 Fiber Optic Patch Cord 12F LC APC DX Uniboot
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | CE RoHS |
| Model Number: | DF-MPO/MTP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | plastic bag |
| Delivery Time: | 5-7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000pcs per month |
|
Detail Information |
|||
| Fiber Counts: | 12F | Storage Temperature: | -40°C To +85°C |
|---|---|---|---|
| Connector A: | MPO / MTP (Male Or Female) | Capacity: | 12core |
| Adapter: | Beige / Blue / Green /Aqua / Purple | Connector: | MPO/MTP-LC |
| Color: | Aqua Or Customized | Hs Code: | 854470000 |
| Aadpter Color: | Beige / Blue / Green /Auqa / Purple | Sleeve: | Zirconia, Nickel |
| Housing Color: | Aqua (Singlemode), Beige (Multimode) | Height: | 1U |
| Cable: | 2.0mm/3.0mm Diameter | ||
| Highlight: | OM5 MPO Patch Cord,DX Uniboot MPO Patch Cord,12F MPO Patch Cord |
||
Product Description
Fiber Optic MPO/MTP Patch Cord Description:
MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber typs in standard 8 , 12 ,24 ,or 48 cores versions using a compact and rugged microcables structre. The compact cable optimize cableway use and improve airflow.These MPO/MTP cable are build with the highest quality components , Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.
Fiber Optic MPO/MTP Patch Cord Feature:
1. Low insertion loss(≤ 0.20dB)and high return loss(≥ 55 dB)
2. Free-floating ceramic ferrule
3. UL-rated plastic housing and boot
4. Boots in a variety of colors
5. High precision alignment connector
Fiber Optic MPO/MTP Patch Cord Application:
1. Local Area Networks (LANs) and Wide Area Networks (WANs)
2. Fiber Optic CATV, FTTH, FTTB, FTTP etc
3. Fiber Optic telecommunication systems
4. Transmission Mode (ATM)
5. Fiber Optic Backbone
6. Military Instrumentation
Fiber Optic Termination Box Specification:
| Connector A | LC,SC,ST,FC....... | Connector B | MPO/MTP |
| Fiber Mode | SM(G652,G655,G657);MM(OM1-OM5) 50/125μm | Minimum Bend Radius | 7.5mm |
| Insertion Loss | Standard:≤0.35/0.7(Typical/Max) Low Loss:≤0.2/0.35(Typical/Max) |
Return Loss | SM:APC:60dB MM:PC:25dB |
| Attenuation at 850nm | ≤2.3dB/km | Attenuation at 1300nm | ≤0.6dB/km |
| Installation Tensile Load | 100 N | Long-Term Tensile Load | 50 N |
| Operating Temperature | -10°C to +70°C | Storage Temperature | -40°C to +85°C |
How to order Optical fiber patch cord?
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
9.Insertion/ Return Loss:Standard/Low Loss
10.Type:Pigtail/Patch Cord/LGX Box/Patch Panel
FQA :
Q: Are you a manufacturer?
A: yes, we are a manufacturer , FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
