EN50575 CPR Certified SC APC Fiber Optic Patchcord Armoured Fibre Optic Patch Leads Simplex 3.0mm LSZH White Jacket
Product Details:
| Place of Origin: | China |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TK-PC-3.0-SCA-SCA-3M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | US$0.01~3.99/PC |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | 10000PCS/Day |
|
Detail Information |
|||
| Product Name: | EN50575 CPR Certified SC APC Fiber Optic Armoured Fibre Optic Patch Leads Simplex 3.0mm LSZH White Jacket | Intertion Loss: | ≤0.3dB |
|---|---|---|---|
| Return Loss: | ≥60dB | Fiber Type: | G657A2 |
| Diameter: | 3.0mm | Connector Type: | SC/APC |
| Jacket Material: | CPR EN50575 LSZH | Color: | White Or Customized |
| Wavelength: | 1310nm, 1550nm | Length: | 3M Or Customized |
| Operation Temperature: | -40℃~80℃ | Fiber Diameter: | 9/125 |
| Highlight: | 3.0mm Fiber Optic Patch Leads,SC APC Fiber Optic Patch Leads,Armoured Fiber Optic Patchcord |
||
Product Description
EN50575 CPR Certified SC APC Fiber Optic Armoured Fibre Optic Patch Leads Simplex 3.0mm LSZH White Jacket
Armored fiber optic cable with build-in metal armor can provide stronger protection of the optical fibers than standards fiber optic cables. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with excessive dust, oil, gas, moisture, or even damage-causing rodents.
Fiber Optic Patchcord Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks(LANS)
- Data processing networks
- Test equipment
- Wide area networks(WANS)
Fiber Optic Patchcord Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard:Telcordia GR-326-CORE
Fiber Optic Patchcord Specifications
| End face type | UPC and APC |
| Fiber type | SM(G652 / G655 / G657)；MM(OM1-OM5) |
| Cable Diameter | 0.9 / 2.0 / 3.0 or customized(Simplex/duplex) |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | 3.0mm cable>70N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | PVC/LSZH or Customized |
| Bending radius(Static/Dynamic) | 10D/20D |
| Length | Customized |

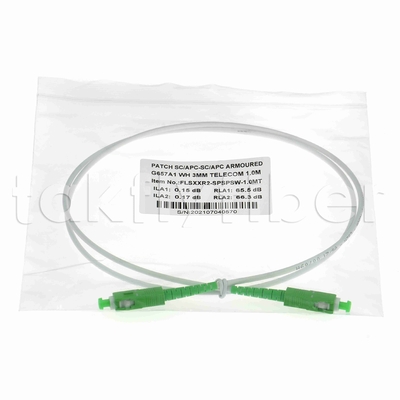

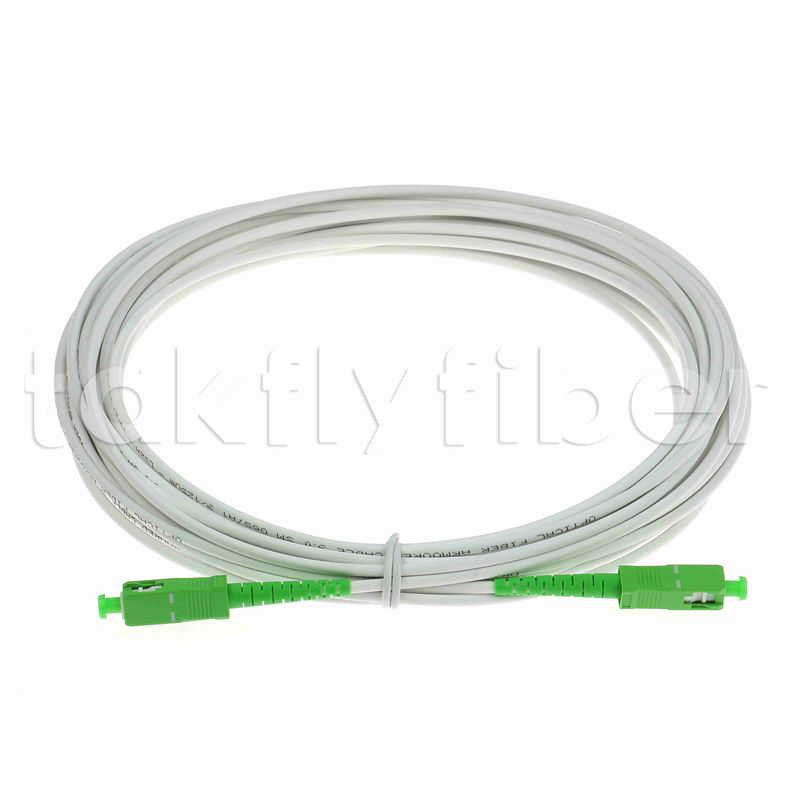

Fiber Optic Patchcord Picture
Why choose TAKFLY--Advantages as follows:
Takfly is a leading manufacturer of Fiber optic product since 2000, with ISO9001 and ISO14001 Certified. All of our products have been passed the CE, ROHS, Reach Test, and our main customer are: Telefonica, Orane, Movistar, DIGI Telecom, Fibertronics, Netceed, and Nvidia, ect.
Takfly's provides a broad selection of pre-terminated bunchy cable for your special patching need. Preterminated bunchy cable is ideal for saving the splicing space and instant installation of network. Distribution cable, breakout cable,outdoor cable and ribbon cable are available.
I have been working in this field more than 10 years, I believe, I could give you very good service and professional answers!
