Telecom Grade CPR Dca Certified 4.5mm Double Shealth Fiber Optic Patchcord SM G657AB3 LSZH Black Jacket SCAPC To LCAPC
Product Details:
| Place of Origin: | China |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TK-PC-4.5DS-5M-SCA-LCA-LZB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | US$0.01~4.69/PC |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | 10000PCS/Day |
|
Detail Information |
|||
| Product Name: | Telecom Grade CPR Dca Certified 4.5mm Double Shealth Fiber Optic Patchcord SM G657AB3 LSZH Black Jacket | Intertion Loss: | ≤0.3dB |
|---|---|---|---|
| Return Loss: | APC SM ≥ 60dB | Fiber Type: | OS2, G652D , G657A1 , G657A2 , G657B3 |
| Diameter: | 4.5mm | Connector Type: | APC |
| Jacket Material: | LSZH | Color: | Black |
| Wavelength: | 1310nm,1550nm | Length: | 5M Or Customized |
| Operation Temperature: | -20℃~70℃ | Fiber Diameter: | 9/125 |
| Grade: | Telecom Grade | Certificate: | CE/ROHS/REACH |
| Production Capcity: | 10000PCS/Day | ||
| Highlight: | 4.5mm Fiber Optic Patchcord,CPR Dca Certified Fiber Optic Patchcord,Telecom Grade Fiber Optic Patchcord |
||
Product Description
Telecom Grade CPR Dca Certified 4.5mm Double Shealth Fiber Optic Patchcord SM G657AB3 LSZH Black Jacket SCAPC to LCAPC
Fiber Optic Patchcord Description:
Takfly's fiber Optic patchcords are 100% tested the end face, insertion loss and return loss, monthly capacity could reach 1 million pcs, we could provide fast delivery and competitive price.
How to order Optical fiber patch cord
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
Fiber Optic Patchcord Specifications:
| End face type | PC, UPC and APC |
| Fiber type | SM(G652 / G655 / G657)；MM(OM1-OM5) |
| Cable Diameter | 4.5mm Double Shealth |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >70N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | LSZH or Customized |
| Bending radius(Static/Dynamic) | 10D/20D |
| Length | Customized |
4.5mm Fiber Optic Cable Structure
| Items | Specification | |
| Fiber count | 1 | |
| Optical fiber | Diameter(±5μm) | 250 |
|
Tight buffer |
Out diameter(±50μm) | 900 |
| Material | LSZH | |
| Color | Blue or other color available upon request | |
|
Cable |
Core reinforce | Aramid yarn |
| Centre strength member | All dielectric | |
| Inner jacket material | LSZH(CCA) | |
| Color | White | |
| Inner diameter(±0.15mm) | 3.0 | |
| Strength member | Aramid yarn with water blocking material if necessary | |
| Outer jacket material | LSZH(CCA) | |
| Color | Black | |
| Out diameter(±0.2mm) | 5.0 | |
| Cable weight(kg/km) | Appro.28 | |
Mechanical Paramter for the 4.5mm double shealth cable
| Mechanical properties | Installation | Operation |
| Tensile strength | 440N | 135N |
| Min bend radius(D: Cable diameter) | 20D | 10D |
| Crush resistance | 500N/100mm | |
| The mechanical properties of other optical fibers and cables shall meet international standards of IEC 60794. | ||
Fiber Optic Patchcord Applications:
- CATV
- Telecommunication networks
- Active device termination
- Local area networks(LANS)
- Data processing networks
- Test equipment
- Wide area networks(WANS)
Fiber Optic Patchcord Features:
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard:Telcordia GR-326-CORE

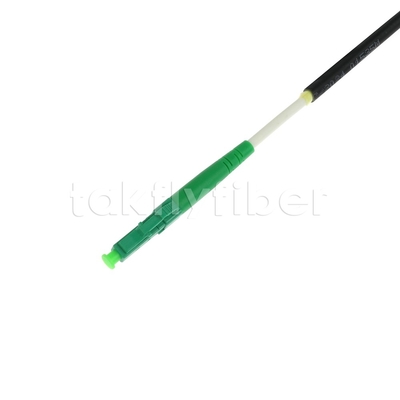

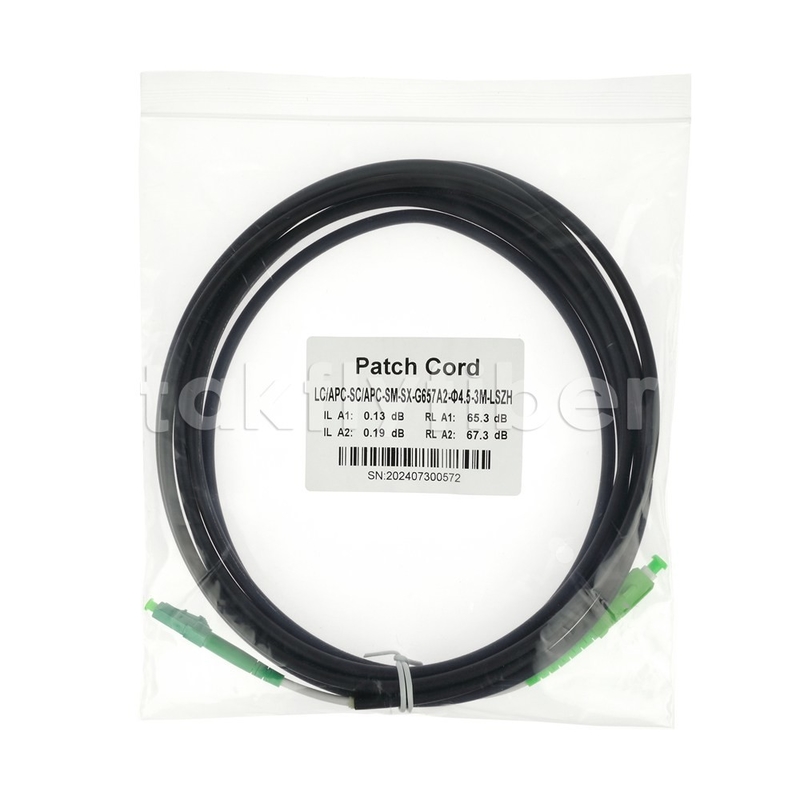

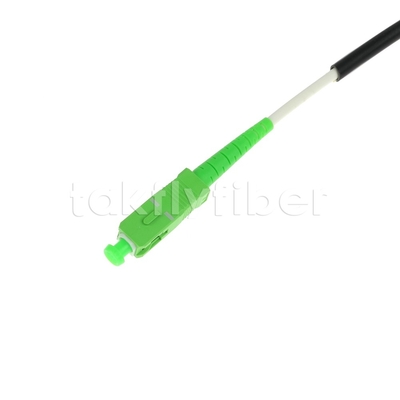

Fiber Optic Patchcord Picture
