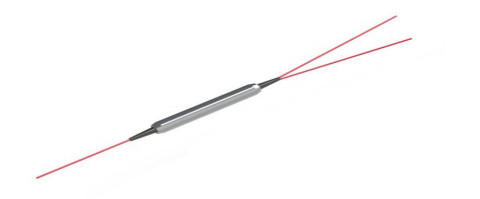

1*2 Polarization Beam Splitter Low Insertion Loss PM and High Power Components for Coherent Telecommunication Systems
Product Details:
| Place of Origin: | China，Shenzhen |
| Brand Name: | OEM |
| Certification: | CE, ISO14001, ISO9001, RoHS |
| Model Number: | Polarization Beam Splitter |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | sponge+plastic boxes + Export Carton box |
| Delivery Time: | 1-3 wks depends on quantity |
| Payment Terms: | L/C, T/T, Western Union,Paypal |
| Supply Ability: | 3500 pcs/ Month |
|
Detail Information |
|||
| Center Wavelength: | 1310nm, 1550nm, 1064nm, 980nm | Port Number: | 1x2 |
|---|---|---|---|
| Min. Isolation: | 50dB | Min. Return Loss: | 50dB |
| Max. Optical Power(CW): | 300mW | Operating Temperature: | -5~+70 |
| Storage Temperature: | -40~+85 | ||
| Highlight: | Low Insertion Loss Polarization Beam Splitter,1*2 Polarization Beam Splitter,High Power Components Polarization Beam Splitter |
||
Product Description
Features
Low Insertion Loss
High Return Loss
High Extinction Ratio
High Reliability
High Stability
Applications
Fiber Optical Current Transducer
Fiber Sensor
Optical Fiber Gyro
Coherent Telecommunication Systems
Package Dimensions
Routing path is from port 3 to 1,2, Here are three options of polarized state from Port 3 to Port 1 & 2:
Option 1: SM to PM,
Port 3, Circularly polarized light in,
Port 1: 50%,Linear polarized light out, through slow axis, Port 2: 50%,Linear polarized light out, through slow axis
Option 2: PM to PM, port 3 is slow axis 0° aligned to port 1
1.Port 3, Linearly polarized light in, through slow axis,
Port 1: 100%,Linear polarized light out, through slow axis, Port 2: 0%
2.Port 3,Linearly polarized light in, through fast axis,
Port 1: 0%, Port 2: 100%,Linear polarized light out, through slow axis
Option 3: PM to PM,port 3 is slow axis 45° aligned to port 1
1.Port 3, Linearly polarized light in, through slow axis,
Port 1: 50%,Linear polarized light out, through slow axis, Port 2: 50%,Linear polarized light out, through slow axis
2.Port 3, Linearly polarized light in, through fast axis,
Port 1: 50%,Linear polarized light out, through slow axis, Port 2: 50%,Linear polarized light out, through slow axis
PM Hybrid Isolator IPBC Specifications
Ordering Information
PBS-1111-23-444-555-678-999
| 2 |
Fiber Type for Port 3:
|
001=PM1550, 002=PM1310, 003=PM980, 004=Hi1060, 008=SMF-28E
|
| 3 |
Grade:
|
P=Perfect grade, A=A grade
|
| 444 | -Pigtail Type |
0=250μm bare fiber, 1=900μm loose tube
|
| 555 | -Fiber Length | 0=0.8m,1=1m |
| 6 |
Option for Port 3 to 1,2:
|
1=Option 1, 2=Option 2, 3=Option 3 |
|
7
|
Package Dimension:
|
0=φ5.5x35mm, 1=φ5.5x50mm, S=Specified
|
|
8
|
Fiber Type for Port 1.2:
|
001=PM1550, 002=PM1310, 003=PM980, 004=Hi1060, 008=SMF-28E
|
|
999
|
Connector for In&Out:
|
0=FC/UPC,1=FC/APC,2=SC/UPC,3=SC/APC,4=LC/UPC,5=LC/APC, N=None
|
