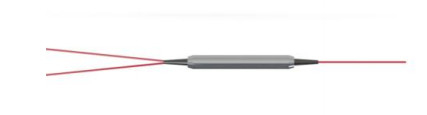

2*1 Polarization Beam Combiner High Extinction Ratio PM and High Power Components for Fiber Optical Current Transducer
Product Details:
| Place of Origin: | China，Shenzhen |
| Brand Name: | OEM |
| Certification: | CE, ISO14001, ISO9001, RoHS |
| Model Number: | Polarization Beam Combiner |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | sponge+plastic boxes + Export Carton box |
| Delivery Time: | 1-3 wks depends on quantity |
| Payment Terms: | L/C, T/T, Western Union,Paypal |
| Supply Ability: | 3500 pcs/ Month |
|
Detail Information |
|||
| Center Wavelength: | 1310nm, 1550nm, 1064nm, 980nm | Port Number: | 2x1 |
|---|---|---|---|
| Min. Isolation: | 50dB | Min. Return Loss: | 50dB |
| Max. Optical Power(CW): | 300mW | Operating Temperature: | -5~+70 |
| Storage Temperature: | -40~+85 | ||
| Highlight: | High Extinction Ratio PM Beam Combiner,2*1 PM Beam Combiner,PM and High Power Components |
||
Product Description
Features
Low Insertion Loss
High Return Loss
High Extinction Ratio
High Reliability
High Stability
Applications
Fiber Optical Current Transducer
Fiber Sensor
Optical Fiber Gyro
Coherent Telecommunication Systems
Package Dimensions
Routing path is from port 1, 2 to 3, Here are three options of polarized state from Port 1, 2 to Port 3:
Option 1: PM to SM,
Port 1: 50%,Linear polarized light in, through slow axis, Port 2: 50%,Linear polarized light in, through slow axis
Port 3, 100%, Circularly polarized light Out,
Option 2: PM to PM, port 1 is slow axis 0° aligned to port 3
Port 1, 2, only work through slow axis, blocked the fast,
The slow axis of port 1 is aligned to the slow axis of port 3,
The slow axis of port 2 is aligned to the fast axis of port 3,
Option 3: PM to PM, port 1 is slow axis 45° aligned to port 3
Port 1, 2, only work through slow axis, blocked the fast,
Port 1 or 2, 100%,Linear polarized light in, through slow axis,
Port 3, 25% linear polarized light out, through slow axis, and 25% by the fast
PM Hybrid Isolator IPBC Specifications
Ordering Information
IPBCD-1111-222-34-555
| 1111 |
Center wavelength
|
1550=1550nm,1310=1310nm,......,0850=850nm
|
| 222 |
Grade:
|
P=Perfect grade, A=A grade
|
| 3 | -Pigtail Type |
0=250μm bare fiber, 1=900μm loose tube
|
| 4 | -Fiber Length | 0=0.8m,1=1m |
| 555 |
Option for Port 3 to 1,2:
|
1=Option 1, 2=Option 2, 3=Option 3 |
|
6
|
Package Dimension:
|
0=φ5.5x35mm, 1=φ5.5x50mm, S=Specified
|
|
777
|
Fiber Type for Port 1.2 3:
|
001=PM1550, 002=PM1310, 003=PM980, 004=Hi1060, 008=SMF-28E
|
|
88
|
Connector for Port 1,2,3:
|
0=FC/UPC,1=FC/APC,2=SC/UPC,3=SC/APC,4=LC/UPC,5=LC/APC, N=None
|
