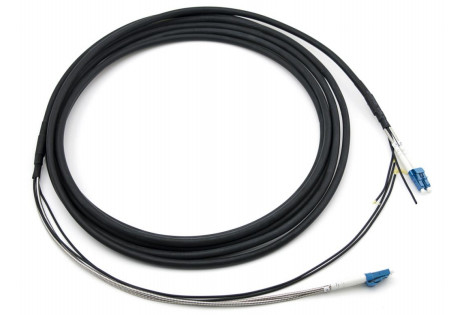

LC-LC GYFJH 2Core 7.0mm LSZH black Outdoor Protected Branch Cable with Interchangeability ≤ 0.2dB and Durability ≤ 0.2dB
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | CE, ISO, RoHS, CPR, FCC |
| Model Number: | LC-LC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | PP bag+ Carton box |
| Delivery Time: | 3-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 100000 pcs/ Month |
|
Detail Information |
|||
| Connector Type: | LC-LC | Fiber Tpye: | SM（G652、G655、G657）；MM（OM1-OM5） |
|---|---|---|---|
| Cable Diameter: | 7.0mm | Outer Sheath Material: | LSZH |
| OperatingTemperature: | -20℃～+70℃ | StorageTemperature: | -40℃～+80℃ |
| Insertion Loss: | ≤0.3dB | Return Loss: | UPC SM ≥ 50dB 、UPC MM ≥ 35dB |
| Repeatability: | ≤ 0.1 | Durability: | ≤ 0.2dB |
| Interchangeability: | ≤ 0.2dB | Length: | Customized |
| Highlight: | Outdoor Protected Branch Cable,LC-LC Outdoor Protected Branch Cable,GYFJH Outdoor Protected Branch Cable |
||
Product Description
Description:
The base station pulls the fiber optic jumper line, uses the GYFJH 7.0mm LSZH black pull the fiber optic cable,
Applications:
-
FTTA
-
Telecommunication networks
-
Active device termination
-
Local area networks(LANS)
-
Data processing networks
-
Test equipment
-
Wide area networks(WANS)
Features:
-
Low insertion loss and High reflection loss
-
Good exchange ability
-
Good durability
-
High temperature stability
-
Standard:Telcordia GR-326-CORE
Specifications:
How to order Fiber Optic Patchcord
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female, fiber count (4/8/12/16/24/32 fiber )
