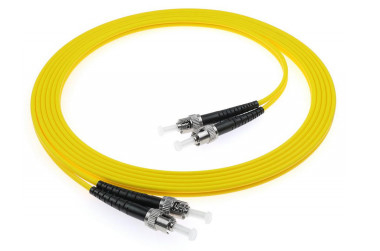

2.0mm Cable Diameter ST-ST Simplex/Duplex Fiber Optic Patch Cord with High Returnloss UPCMM≥35dB
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | CE, ISO, RoHS, CPR, FCC |
| Model Number: | ST-ST |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | PP bag+ Carton box |
| Delivery Time: | 3-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 100000 pcs/ Month |
|
Detail Information |
|||
| Connector Type: | ST-ST | Fiber Tpye: | SM (G652、G655、G657); MM (OM1-OM5) |
|---|---|---|---|
| Cable Diameter: | 2.0mm,3.0mm | Outer Sheath Material: | PVC、LSZH、TPU |
| OperatingTemperature: | -20℃～+70℃ | StorageTemperature: | -40℃～+80℃ |
| Insertion Loss: | ≤0.3dB | Returnloss: | UPCSM≥50dB、APCSM≥60dB、UPCMM≥35dB |
| Highlight: | ST-ST Fiber Optic Patch Cord,2.0mm Fiber Optic Patch Cord,Duplex Fiber Optic Patch Cord |
||
Product Description
Description:
Fiber optic patch cord is the cable with both ends terminated with fiber optic connectors, which realizes the connection between optic networking equipment and equipment, and equipment and patch cords. Easy operation and convenience make it indispensable as one of the passive products for optic networking construction.
Applications:
-
CATV
-
Telecommunication networks
-
Active device termination
-
Local area networks(LANS)
-
Data processing networks
-
Test equipment
-
Wide area networks(WANS)
Features:
-
Low insertion loss and High reflection loss
-
Good exchange ability
-
Good durability
-
High temperature stability
-
Standard:Telcordia GR-326-CORE
Parameter:
How to order Fiber Optic Patchcord
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female, fiber count (4/8/12/16/24/32 fiber )
