LC/APC-LC/UPC Armoured Fiber Optic Patchcord Multimode and Singlemode Fiber Count
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | CE, ISO, RoHS, CPR, FCC |
| Model Number: | LC/APC-LC/UPC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | PP bag+ Carton box |
| Delivery Time: | 3-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 100000 pcs/ Month |
|
Detail Information |
|||
| Connector Type: | LC/PC-LC/UPC | Fiber Count: | SX/DX |
|---|---|---|---|
| Cable Diameter: | 2.0mm,3.0mm | Cable Color: | Blue Or Others |
| Outer Sheath Material: | PVC,LSZH | OperatingTemperature: | -40℃～+75℃ |
| StorageTemperature: | -40℃～+75℃ | ||
| Highlight: | Singlemode Fiber Optic Patchcord,Armoured Fiber Optic Patchcord,Multimode Fiber Optic Patchcord |
||
Product Description
Description:

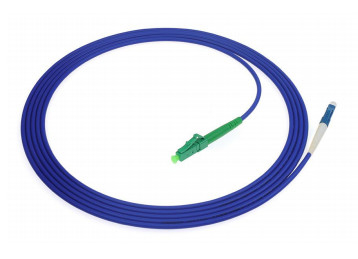

LC/APC-LC/UPC armoured patchcord is to add fiber optic connectors at both ends of a armoured fiber optic
cable. Realize the active connection between optical network equipment and equipment, equipment, and fiber
optic patchcord. Simple, convenient, and fast operation, it is one of the indispensable passive products for optical
network construction.
TAKFLY can provide a full range of armoured patchcords, whose transmission mode,cable type and connector type
can be matched freely. Moreover, they’re featured with advantages of stable transmission, high tensile strength,
crush resistance, rodent resistance and customization etc.and widely applicable in optical network scenario
such as back bone network,optical cabling and data centers etc..
Applications:
-
Datacenter
-
BackboneNetwork
-
Outdoorscenes
Features:
-
ConnectortypeLC,SC,FC,ST,SMAetc.isoptional
-
SinglemodeandMultimode;SimplexorDuplex
-
Cable2.0mmor3.0mmwithsimplexorduplexand4,6,8,12,24Core
-
Customorderlength
-
CableoutJacket:PVC,LSZH,OFNP,OFNRetc.
-
AllpartscompliantwithROHS
-
IECstandardcompatible
-
GR-326-CORECompliant
-
Stainlesssteeltubeprovidesgoodprotectionagainstphysicaldamage
-
Armouredfiberopticcableprovideshightensilestrength,crushresistanceandrodentresistance
Armored fiber cable with build-in metal armor can provide stronge rprotection of the optical fibers than standards
fiber optic cables. The rugged armored cables allow optical fiber to be installed inthe most hazardous areas,
including environments with excessive dust, oil, gas, moisture, or even damage-causing rodents.
Parameter:
How to order Fiber Optic Patchcord
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female, fiber count (4/8/12/16/24/32 fiber )
