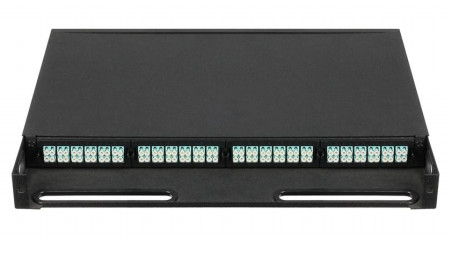

TK-HRS-1096A MPO MTP Cassette Management Panel For Data Center Height 1U
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | ISO9001; ISO14001 |
| Model Number: | TK-HRS-1096A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | Carton box |
| Delivery Time: | 3-7days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pieces per week |
|
Detail Information |
|||
| Height: | 1U | Test Wavelength (nm): | SM: 1310/1550 MM: 850/1300 |
|---|---|---|---|
| Size(L*W*H): | 486*306*44.5mm | Repeatability: | ≤ 0.1dB |
| Durability: | ≤ 0.2dB | Interchangeability: | ≤ 0.2dB |
| Highlight: | 1U MPO MTP Cassette,MPO MTP Cassette Management Panel,Data Center MPO MTP Cassette |
||
Product Description
Takfly series rackmounted patch panel is designed to manage and house easy-plug MPO/MTP to LC fiber cassette modules, for connecting plug-and-play pre-terminated high density MPO/MTP Fiber cabling system.This solution contributes to greater network availability that especially suitable for SAN, LAN and Data Center applications. Each easy-plug MPO/MTP to LC
cassette is accommodated with a 12/24-fiber MPO/MTP based fiber assemblies, and pre-loaded with LC adapters in different fiber modes for your choices.
Application
For installing inside easy-plug cassette modules(19”)
For installing inside Network cabinet
CATV
LAN
WAN
FTTX
Features
Installed in 19 inch rack-mount and cabinet, application for cassette modules centralized management.
1U high-density size capacity 96 fibers for LC interface
2U high-density size capacity 192 fibers for LC interface
3U high-density size capacity 288 fibers for LC interface
Using the definitely Material of Metal.
This system is modular in design,the higher density.Special designed ultra-small MTP/MPO modular box which save more space.
Each box allocate 12pcs or 24pcs LC adapters and switch to MPO/MTP connections.
Using unique tool-free installation design so that patching system can be fast assembled and installed
without any tools and complex operations.
