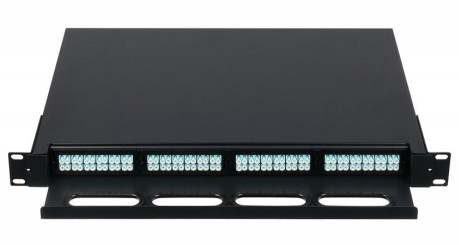

TK-HRS-1096B Height 1U MTP MPO Cassette Patch Panel For Data Center
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | ISO9001; ISO14001 |
| Model Number: | TK-HRS-1096B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | Carton box |
| Delivery Time: | 3-7days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pieces per week |
|
Detail Information |
|||
| Height: | 1U | Fiber Count: | 96F |
|---|---|---|---|
| Test Wavelength (nm): | SM: 1310/1550 MM: 850/1300 | Size(L*W*H): | 486*306*44.5mm |
| Repeatability: | ≤ 0.1dB | Durability: | ≤ 0.2dB |
| Interchangeability: | ≤ 0.2dB | ||
| Highlight: | data center patch panel,MPO Cassette Patch Panel,Height 1U MTP MPO Cassette |
||
Product Description
Takfly series rackmounted patch panel is designed to manage and house easy-plug MPO/MTP to LC fiber cassette modules, for connecting plug-and-play pre-terminated high density MPO/MTP Fiber cabling system.This solution contributes to greater network availability that especially suitable for SAN, LAN and Data Center applications. Each easy-plug MPO/MTP to LC
cassette is accommodated with a 12/24-fiber MPO/MTP based fiber assemblies, and pre-loaded with LC adapters in different fiber modes for your choices.
Application
Data center
Telecommunication networks
CATV
LAN
WAN
FTTX
Features
Two ways of use are free collocation:
1.Install MPO/MTP-LC Cassette module management
Up to 4 Small MPO/MTP modules in 1U Multiple adaptor options available Accepts loose tube, distribution
and pre-terminated cables ROHS, REACH SvHC and UL rated Fits standard 19”,sliding-type design, convenient
for management.
1U high-density size capacity 96 fibers for LC interface
2U high-density size capacity 192 fibers for LC interface
2.Install equipped with LC, SC, FC, and ST adapter panels fusion splice type
Sliding-type design
